Description

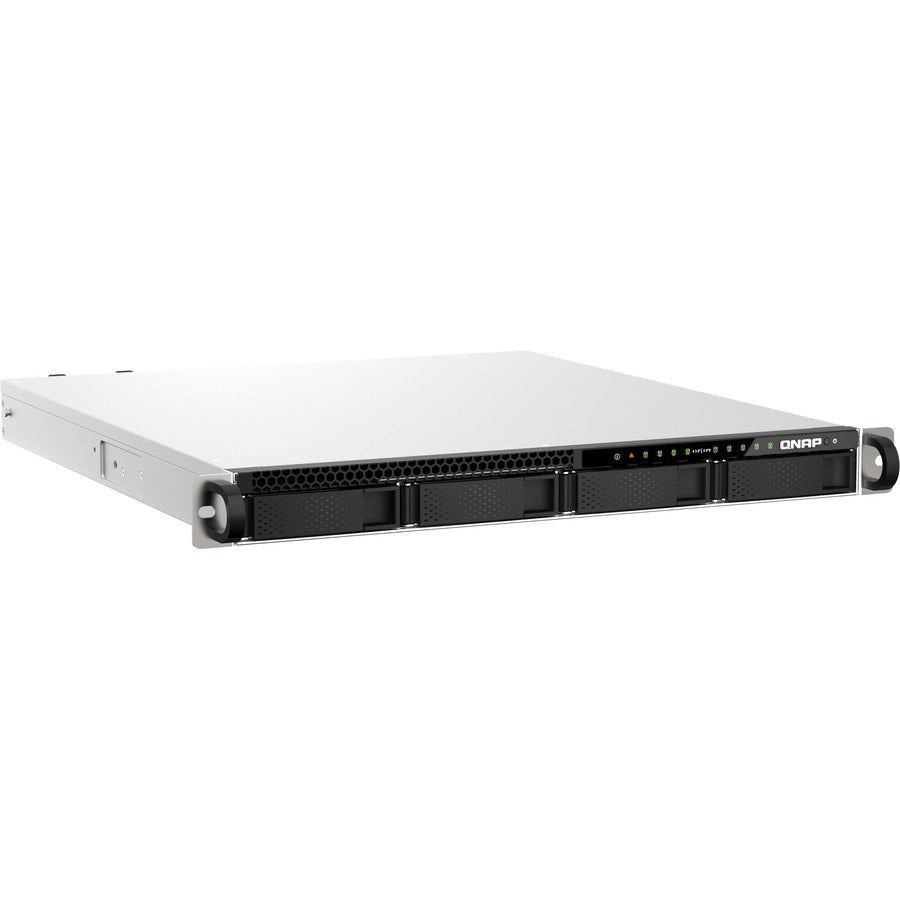

The QNAP TS-h987XU-RP-E2334-16G is a high-performance 1U rackmount SAN/NAS solution powered by the Intel® Xeon® E-2334 quad-core processor and equipped with 16 GB DDR4 ECC memory (expandable up to 128 GB). Designed for enterprise workloads, it delivers exceptional speed, reliability, and flexibility through a hybrid HDD/SSD architecture with four 3.5-inch SATA 6Gb/s bays and five 2.5-inch U.2 NVMe PCIe Gen 4 x4 SSD slots for cache acceleration and optimal IOPS.
The ZFS-based QuTS hero operating system provides robust data integrity features including inline deduplication, near-limitless snapshots, real-time SnapSync, and QNAP SSD Antiwear Leveling (QSAL). Dual 10GbE and dual 2.5GbE network ports ensure high-speed connectivity for virtualization, large-scale backups, and intensive file access, while PCIe Gen 4 expandability supports 10/25GbE, Fibre Channel, or QM2 SSD expansion cards.
Perfect for file servers, virtualization servers, VDI environments, and backup/restore, the TS-h987XU-RP combines enterprise-grade reliability, redundant power supplies, and advanced backup options, making it an ideal choice for modern business IT infrastructure.
| Category | Specification |
|---|---|
| Model | TS-h987XU-RP-E2334-16G |
| Processor | Intel® Xeon® E-2334 Quad-Core 3.4 GHz (Turbo up to 4.8 GHz) |
| Memory | 16 GB DDR4 ECC (max 128 GB) |
| Drive Bays | 4 × 3.5" SATA 6Gb/s + 5 × 2.5" U.2 NVMe PCIe Gen 4 x4 |
| Supported RAID | JBOD, 0, 1, 5, 6, 10 |
| Networking | 2 × 10GbE (RJ45), 2 × 2.5GbE (RJ45) |
| PCIe Expansion | 1 × PCIe Gen 4 x8 slot |
| USB Ports | 4 × USB 3.2 Gen 2 Type-A |
| Form Factor | 1U Rackmount |
| iSCSI Support | Yes |
| Power Supply | Dual Redundant 300W |
| Operating System | QNAP QuTS hero h5.0.1 / QTS 5.0.1 |
| Dimensions (W × D × H) | 16.9 × 18.9 × 1.7 in |
| Weight | 18.58 lbs |
| Warranty | 3 Years Limited |
