Description

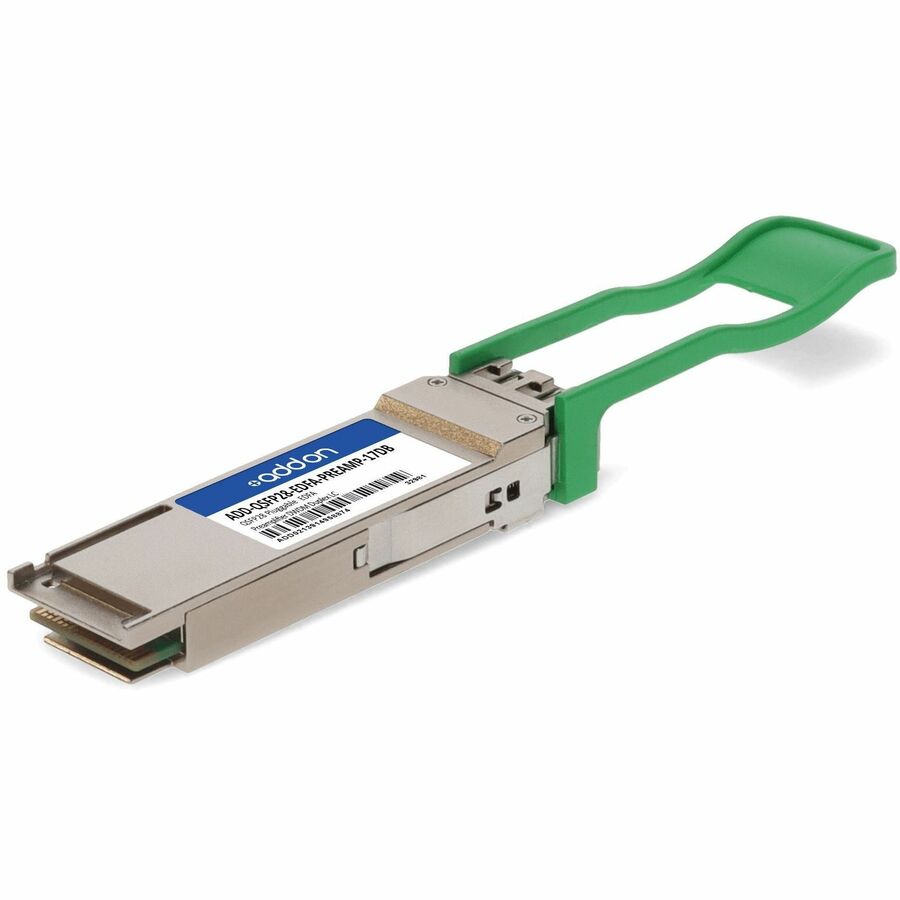

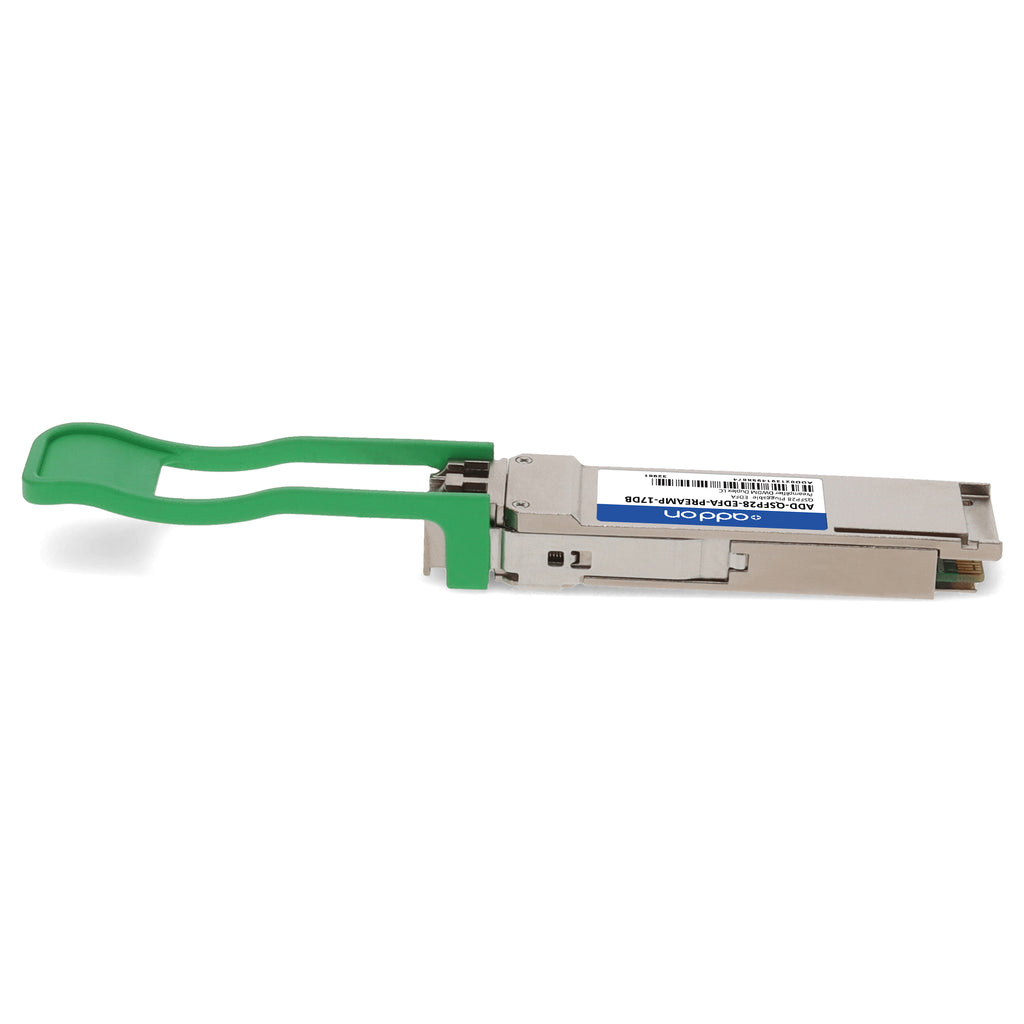

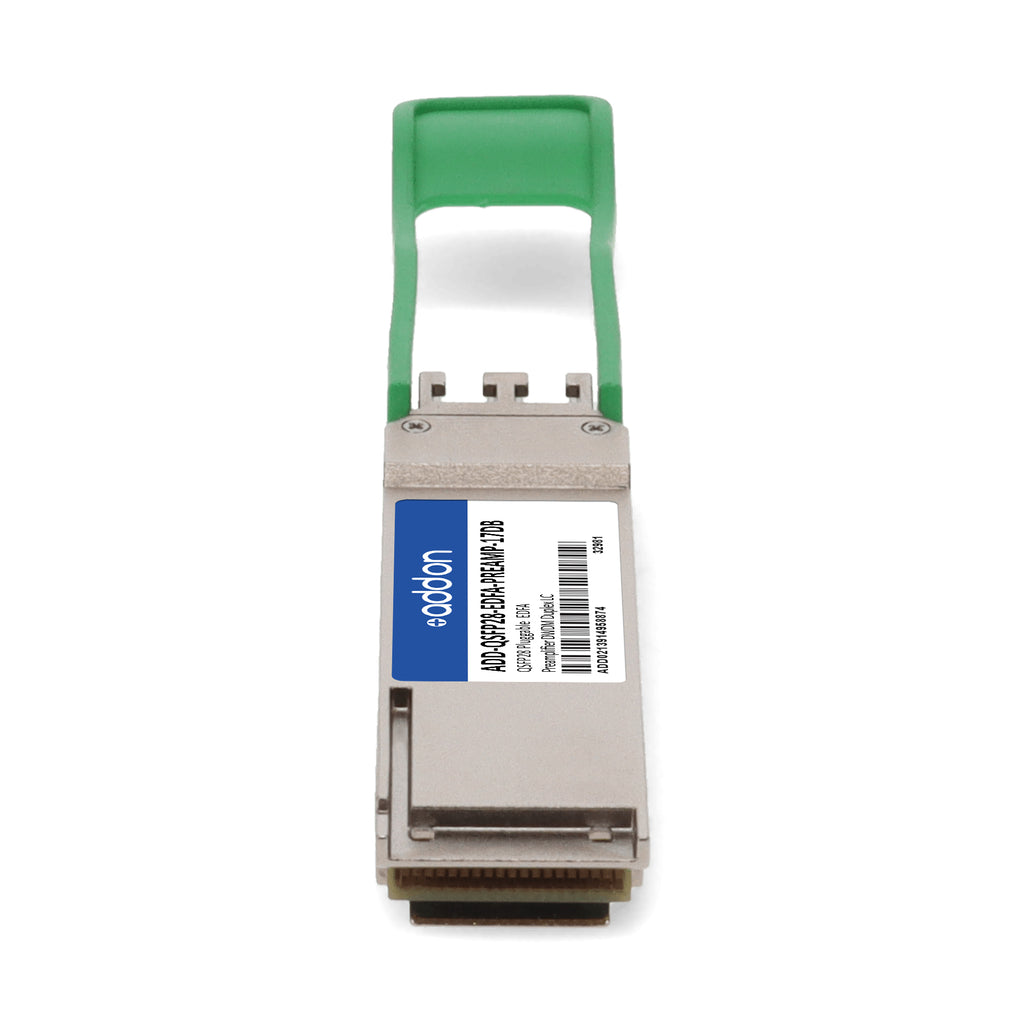

The AddOn QSFP28 EDFA Preamplifier (ADD-QSFP28-EDFA-PREAMP-17DB) is a high-performance, hot-pluggable optical amplifier designed to boost the sensitivity and reach of C-band DWDM networks. Delivering a nominal gain of +17 dB and supporting input power from -30 dBm to -10 dBm, this compact preamplifier enhances signal levels prior to detection, improving overall link performance and optical budget in dense wavelength-division multiplexing applications.
Engineered for SFF-8661 compliance and QSFP28 form factor, the unit integrates built-in control circuits for stable operation, low power consumption, and high reliability. Featuring a duplex LC/UPC interface and AGC/APC operation modes, it ensures seamless integration with existing fiber infrastructure. Qualified to Telcordia GR-1312-CORE standards, RoHS compliant, and fully hot-pluggable, this EDFA preamplifier is ideal for high-capacity optical transport systems, metro and long-haul networks, and data center interconnect applications.
| Specification | Details |
|---|---|
| Manufacturer | AddOn Networks |
| Part Number | ADD-QSFP28-EDFA-PREAMP-17DB |
| Form Factor | QSFP28 pluggable EDFA preamplifier |
| Amplifier Type | Preamplifier for DWDM systems |
| Wavelength Range | 1529 nm – 1567 nm (C-band) |
| Input Power Range | –30 dBm – –10 dBm |
| Nominal Gain | +17 dB |
| Gain Range | 9 dB – 24 dB |
| Saturated Output Power | 7 dBm |
| Output Power Variation | ±0.5 dB |
| Gain Flatness | ≤5.0 dB (48 channels) / ≤1.5 dB (16 channels) |
| Noise Figure | 5.5 – 6.5 dB |
| Return Loss (I/O Ports) | ≥40 dB |
| Polarization Dependent Gain (PDG) | ≤0.3 dB |
| Polarization Mode Dispersion (PMD) | ≤0.5 ps |
| Operation Modes | AGC / APC |

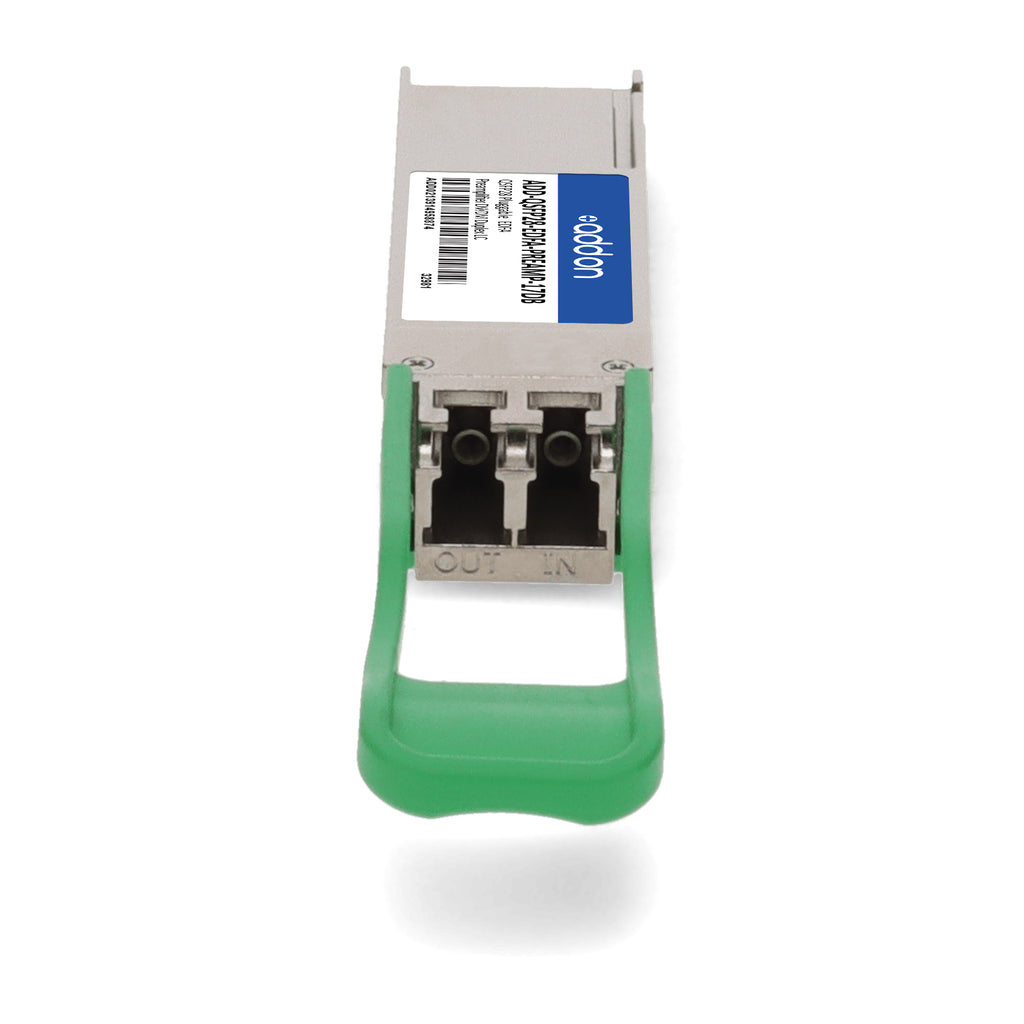

| Connector Type | Duplex LC/UPC |
| Compliance Standards | SFF-8661, Telcordia GR-1312-CORE, RoHS |
| Hot-Pluggable | Yes |
| Power Consumption | 2.5 W (typical) |
| Supply Voltage | 3.15 V – 3.45 V |
| Operating Temperature | 0 °C – 70 °C |
| Storage Temperature | –40 °C – 85 °C |
| Operating Humidity | 5 % – 90 % RH |
| Storage Humidity | 0 % – 95 % RH |
