Description

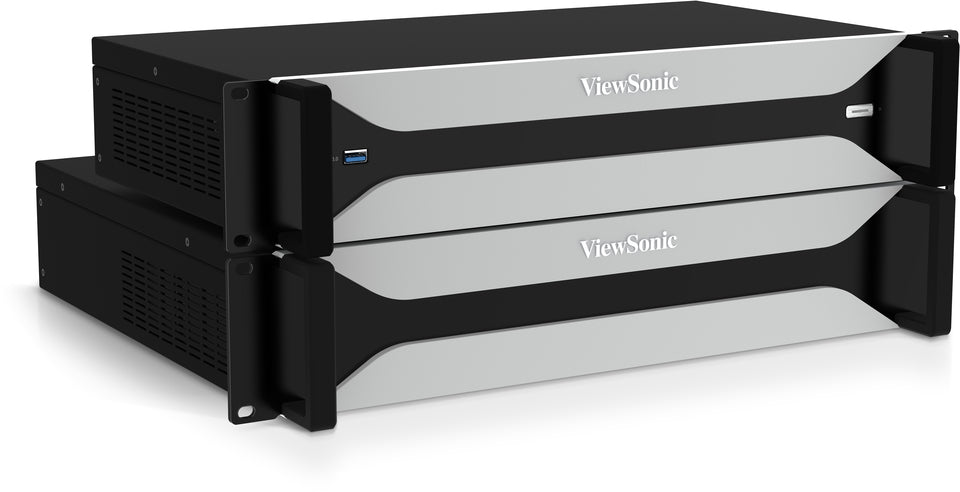

The ViewSonic LD-SCB-023 is a high-performance all-in-one system control box engineered for professional AV integration. Designed with a stackable 4U rack-mount form factor, it seamlessly integrates into standard rack cabinets, offering space-efficient installation for control rooms and enterprise environments.
This system combines power distribution, display management, and network control into a single streamlined solution. With integrated power on/off synchronization and LAN/RS-232 centralized control, operators can manage multiple ViewSonic Customizable All-in-One LED Displays (LDC Series) from a single point—enhancing efficiency, sustainability, and ease of use.
Featuring Android 9.0, an RK3399 processor, and 4GB DDR4 RAM, the LD-SCB-023 provides reliable, responsive performance for 24/7 operations. Multiple connectivity options—including HDMI, DP, USB, and Ethernet—make it versatile for both direct and network-based AV management setups.
| Category | Specification |
|---|---|
| General | |
| Product Type | All-in-One System Control Box |
| Rack Design | Stackable 4U Rack-Mount |
| Compatibility | ViewSonic Customizable All-in-One LED Displays (LDC Series) |
| Embedded OS | Android 9.0 |
| Processor | RK3399 |
| RAM | DDR4 4GB |
| Local Storage | 32GB (26GB available) |
| Power Consumption | 52W |
| Output Power | 12.32kW @220V / 6.16kW @110V |
| Net Weight | Power Module: 8.7kg / Control Box: 4.1kg |
| Dimensions (W x H x D) | Power Module: 482.6 x 93 x 405.2 mm / Control Box: 482.6 x 93 x 280.4 mm |
| Display Output & Performance | |
| Max Pixel Count | 9,300,000 |
| Max Resolution (Width x Height) | 7,680 x 4,320 pixels |
| Inputs | |
| HDMI | 3x HDMI 2.0 (HDCP 2.2) |
| USB Type A | 3x (USB 2.0 x2, USB 3.0 x1) |
| DP | 1x DisplayPort 1.2 |
| RJ45 (Internet) | 1x |
| IR In | 1x (3.5mm) |
| Wi-Fi Input | 2.4G / 5G Hz |
| Outputs | |
| HDMI | 2x HDMI 2.0 (HDCP 2.2) |
| Audio Out | 1x (3.5mm) |
| Optical | 1x |
| USB Type A (Power) | 1x USB 3.0 (5V/1A), 2x USB 2.0 (5V/0.5A) |
| DP | 1x DisplayPort 1.2 |
| Control | |
| Ethernet to Cabinet | 18x RJ45 |
| LAN Control | 1x RJ45 |
| RS-232 | 1x DB 9-pin Female |
| USB Type A (Service) | 1x |
| IR Receiver | 1x |
| Software & Compatibility | |
| LAN Control | Yes |
| vController (TCP/IP) | Yes |
| Crestron e-Control / RoomView | Yes (CCV1 Compatible) |
| Crestron Fusion | Yes |
| Extron | Yes |
| MyViewBoard Manager | Yes |
| MyViewBoard Display | Yes |
| 24/7 Operation | Supported |
| PIP/PBP (HDMI 1/2/3/4) | Yes |
| OTA Firmware Upgrade | Yes |
| vCast Wireless Display | Yes |
| CEC / Signal Detect | Yes |
| Standard Accessories | |
| Power Cord | 2x |
| LAN Debug Cable | 1x |
| IR Extender Cable | 1x |
| Remote Control | 1x |
