Description

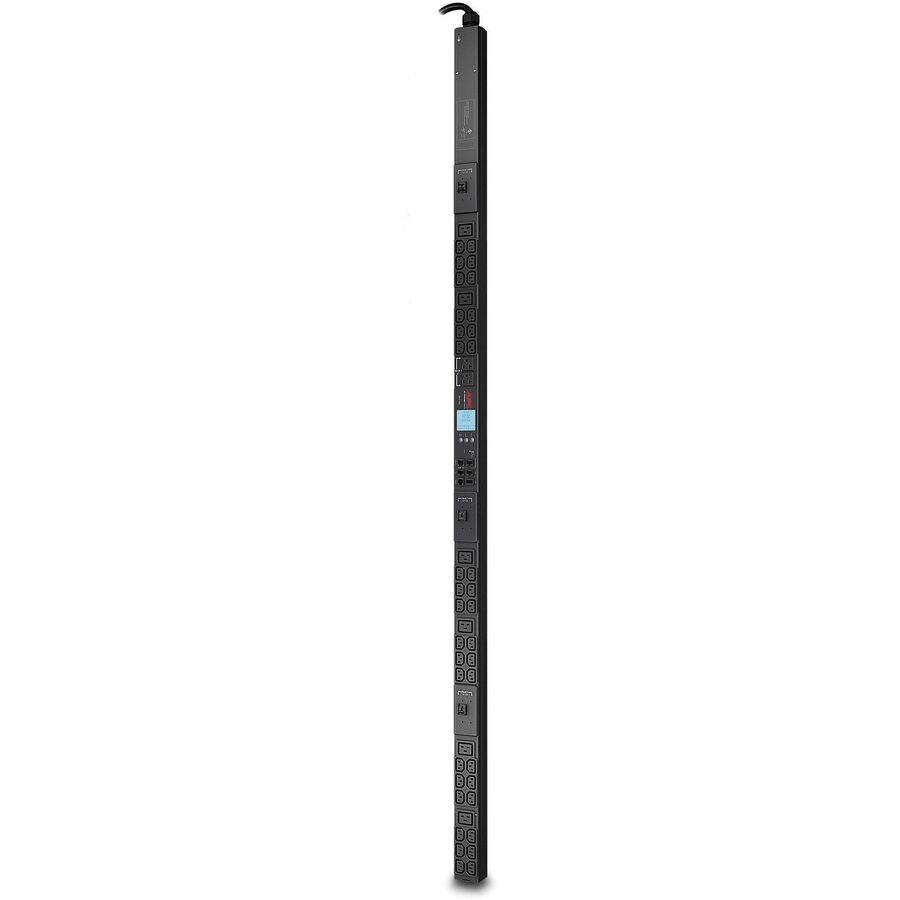

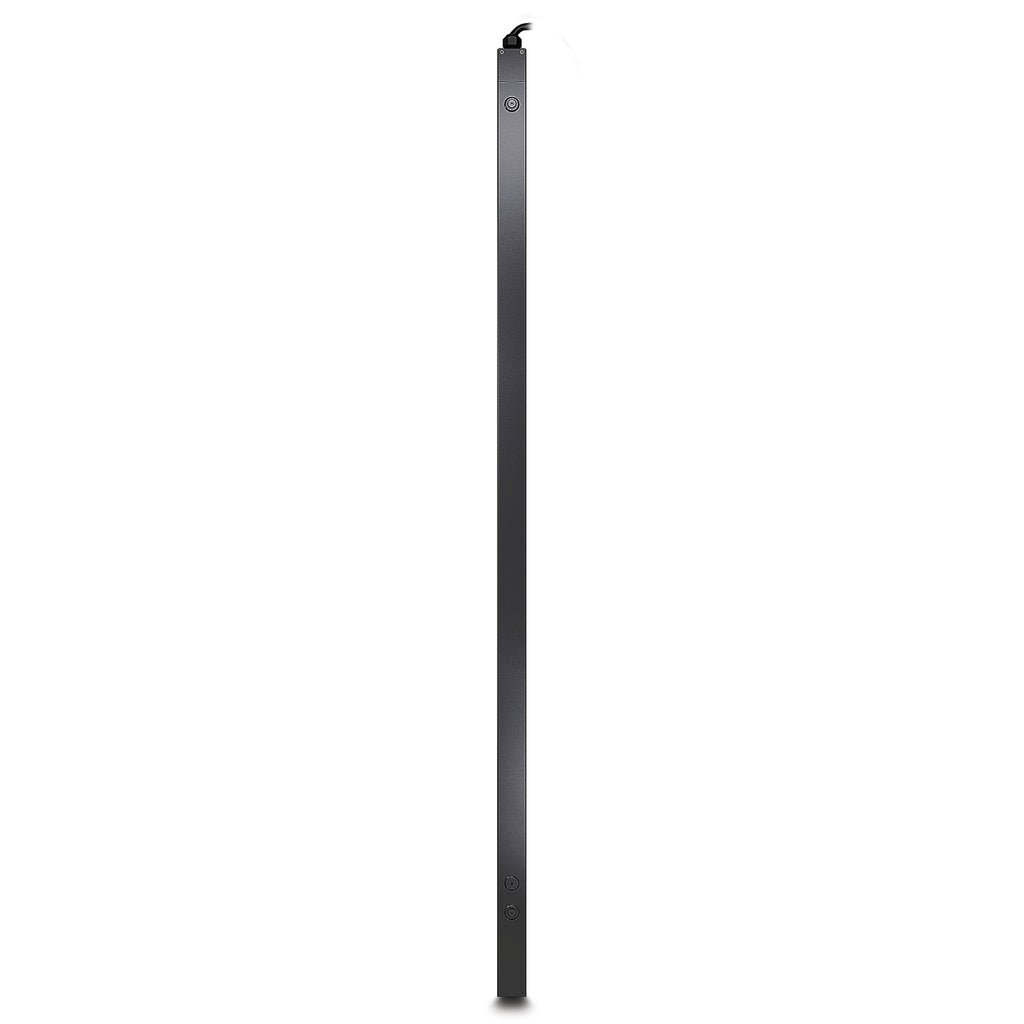

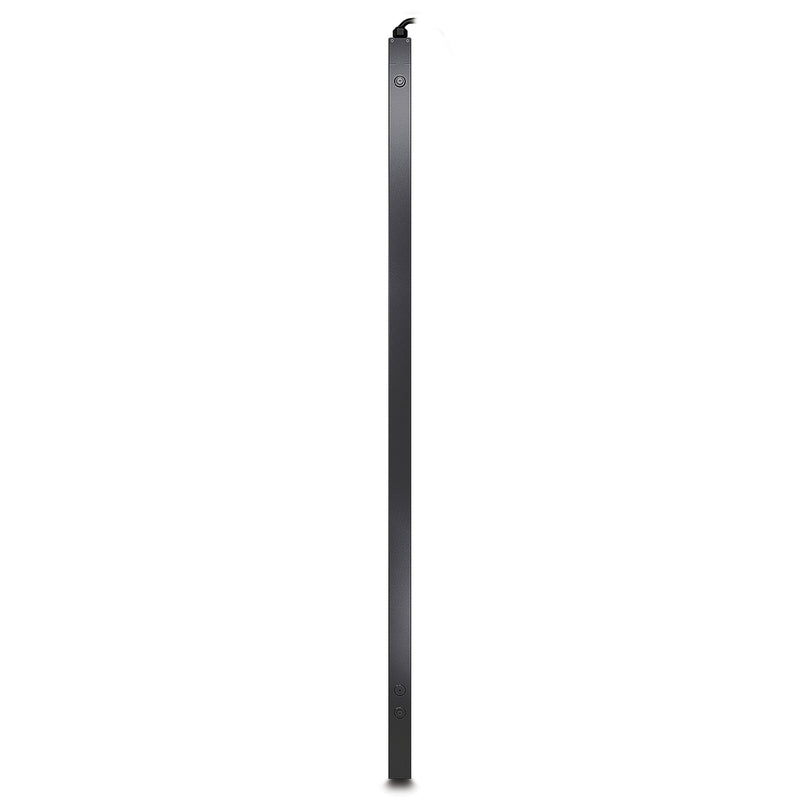

The APC AP8865 Metered Rack PDU provides high-density power distribution for demanding IT environments, including colocation, data centers, and enterprise edge. This 0U vertical PDU features a 208V 3-phase input, delivering 8.6kW of power across (2) NEMA 5-20R, (36) IEC C13, and (6) IEC C19 outlets. Real-time remote monitoring and a user-friendly LCD interface provide visibility into voltage, amps, and energy usage. With EcoStruxure™ IT integration, alarm thresholds, and daisy-chain capability for up to four PDUs, the AP8865 ensures secure, intelligent, and efficient rack power distribution.
| Specifications | Details |
|---|---|
| Brand | APC |
| Model | AP8865 |
| Product Type | Metered Rack PDU |
| Mounting Type | Vertical (0U), Toolless Mount in NetShelter Racks |

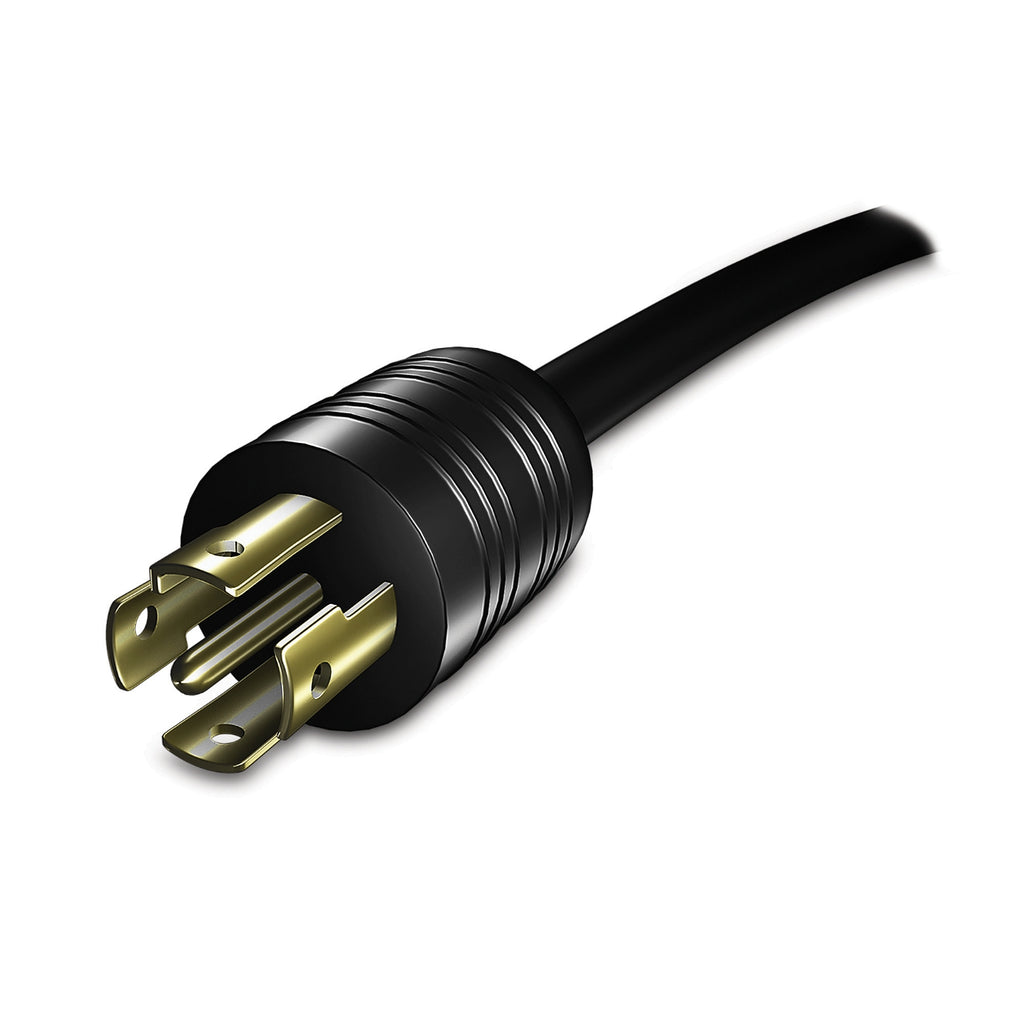

| Input Plug Type | NEMA L21-30P |
| Input Voltage | 208V, 3-Phase |
| Load Capacity | 8.6kW (8600 VA) |
| Max Input Current | 30A |
| Cord Length | 6 ft (1.83 m) |
| Outlet Quantity & Type | (2) NEMA 5-20R, (36) IEC C13, (6) IEC C19 |
| Monitoring Capabilities | Amps, Volts, kW, kWh via LCD and Remote Access |
| Network Management | Web, SNMP, CLI via Secure Network Management Card |
| Alarm Thresholds | User-defined overload alerts |
| Operating Temp (Max) | 60°C (140°F) |
| Environmental Monitoring | Port for Temp/Humidity Sensor (AP9335T/TH) |
| Security Features | Secured interfaces, enhanced password policy |
| Compliance Standards | UL 60950-1, CSA C22.2 No. 60950 |
| Daisy Chain Support | Up to 4 PDUs per IP address |
| Product Dimensions (HxWxD) | 70.51 x 2.20 x 1.81 in (179.1 x 5.6 x 4.6 cm) |
| Weight | 16.67 lbs (7.56 kg) |
| Warranty | 2-Year Repair or Replace |
| Included Accessories | Mounting Brackets, Serial Cable, Guides |
| Country of Origin | India |
