Description

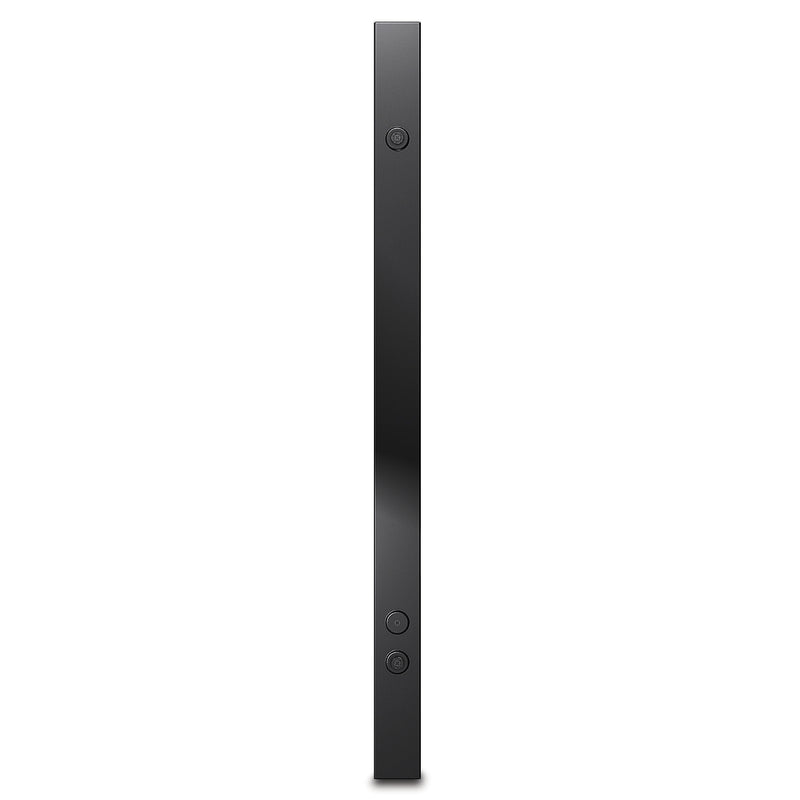

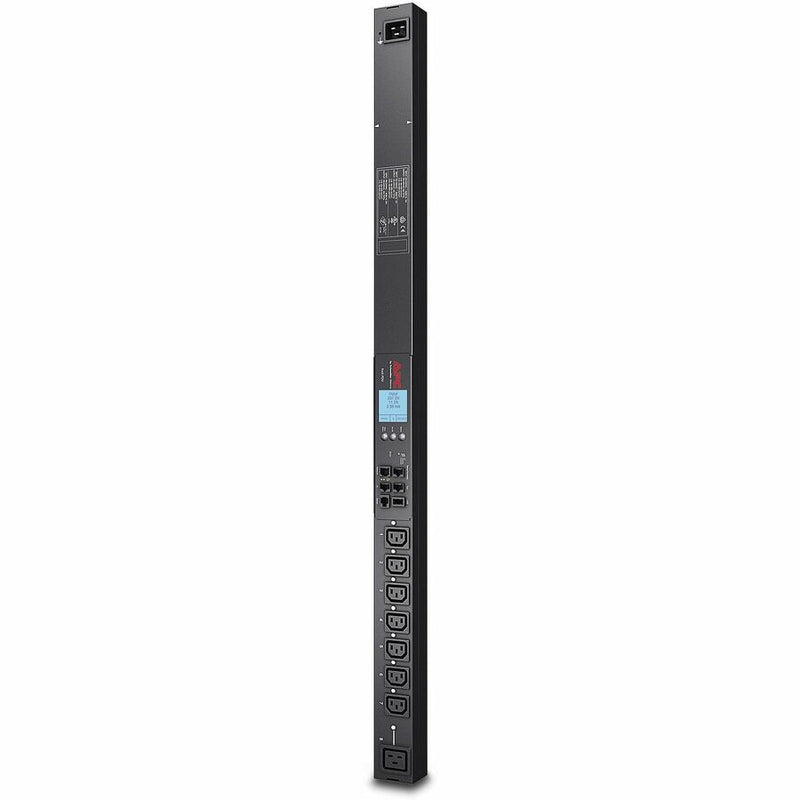

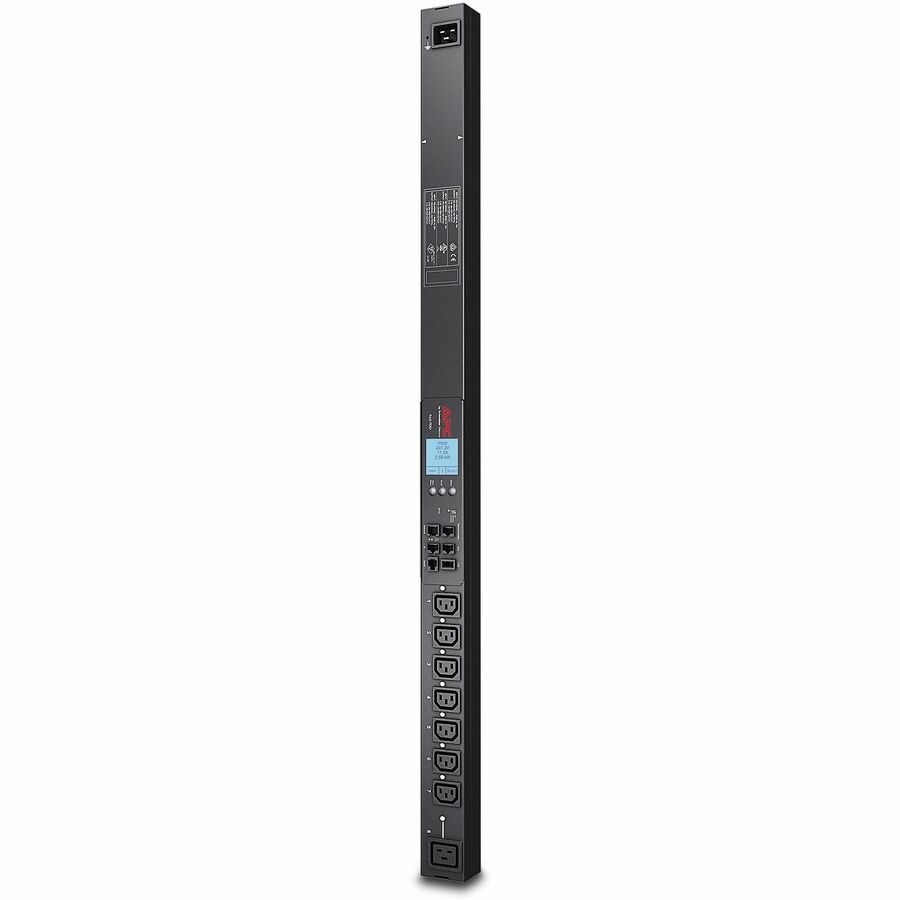

The APC AP8958 Switched Rack PDU offers intelligent power distribution with individual outlet-level control and real-time monitoring, making it ideal for data center and IT environments. Featuring a ZeroU vertical design, this 20A/208V unit fits easily in standard racks without consuming usable space. It supports remote switching and load management via Web, SNMP, or Telnet, and integrates with EcoStruxure IT and other management platforms. Locking IEC outlets, power sequencing, and overload alarms ensure operational safety and uptime. Includes mounting brackets, configuration cable, and installation guide.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8958 |
| PDU Type | Switched |
| Form Factor | ZeroU, Vertical Mount |
| Input Voltage | 200V / 208V / 230V |
| Output Voltage | 100V – 230V |
| Input Plug Type | IEC 60320 C20 |
| Outlets | (7) IEC C13, (1) IEC C19 |
| Line Rated Current | 16A (at 230V) / 20A (at 208V) |
| Load Capacity | 3300 VA |
| Mounting Mode | Rack-mounted (side) |
| Height | 38.90 in (98.8 cm) |
| Width | 2.20 in (5.6 cm) |
| Depth | 1.81 in (4.6 cm) |
| Weight | 7.12 lb (3.23 kg) |
| Monitoring & Control | Web/SNMP/Telnet access, per-outlet switching |
| Standards & Certifications | UL, cUL, VDE, PSE, VCCI Class A, FCC Part 15 A |
| Environmental Range | -5 to 60°C, 5–95% RH, 0–10,000 ft operating alt. |
| Included Accessories | Mounting brackets, config cable, safety guide |
| Warranty | 2-year repair or replace |
