Description

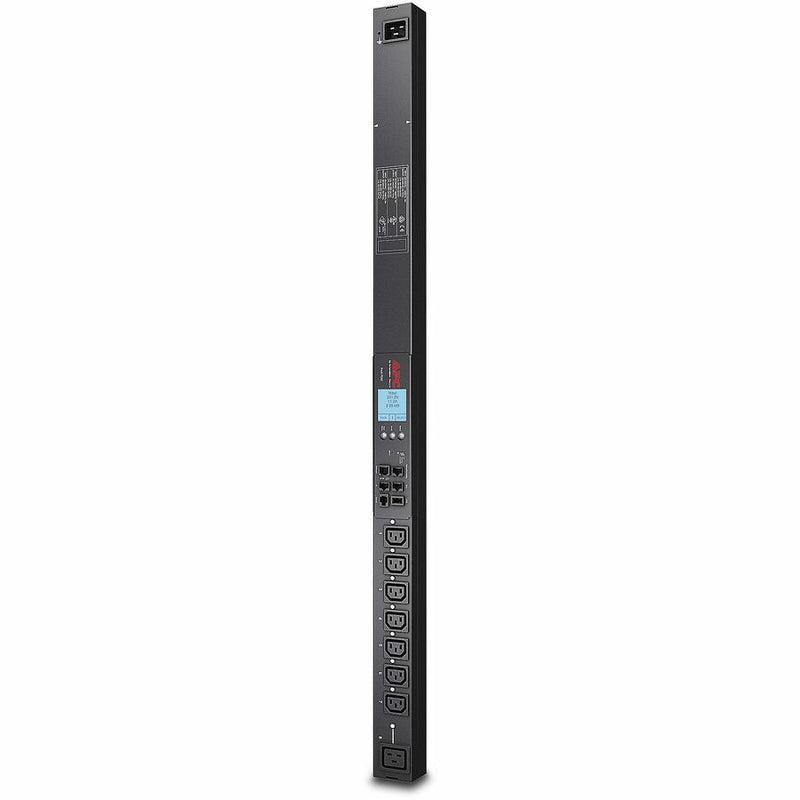

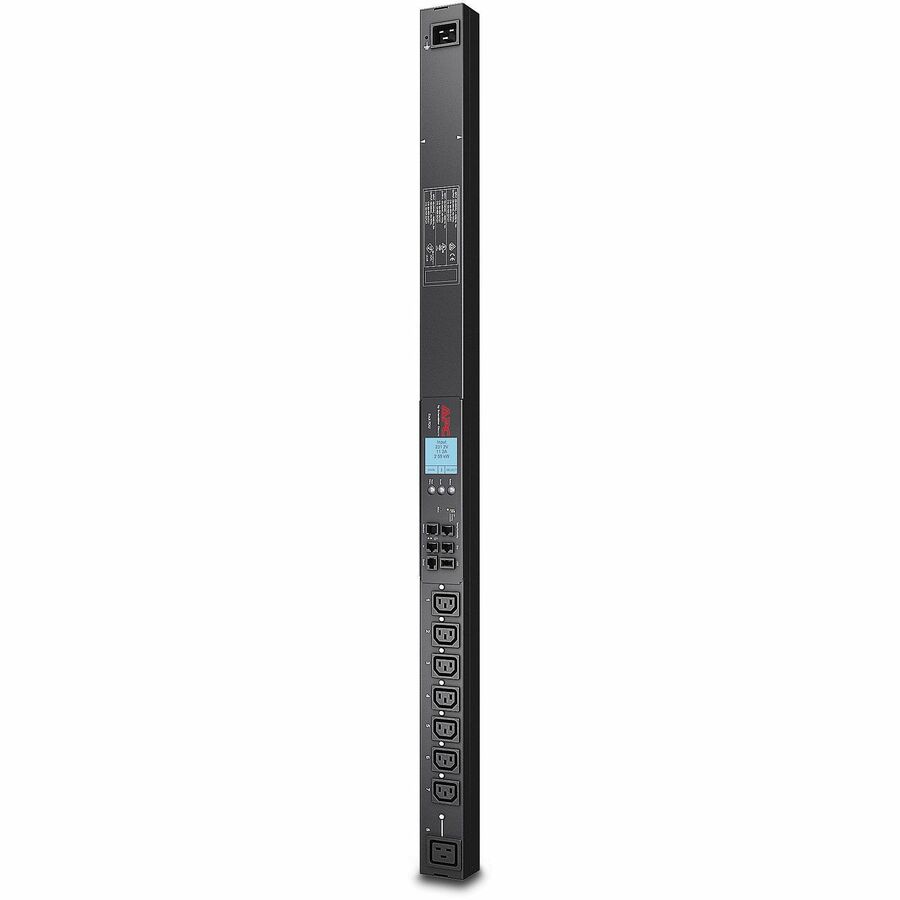

The APC AP8958NA3 is a second-generation switched Rack PDU that delivers advanced power distribution and active monitoring in a space-saving ZeroU vertical form factor. Designed for high-availability IT environments, this unit offers user-customizable outlet control, power sequencing, real-time current metering, and remote management capabilities via Web, SNMP, or Telnet. It features 7 IEC C13 and 1 IEC C19 outlets with a 3m NEMA L6-20P input cord, supporting up to 20A at 208V. Built-in load shedding, locking receptacles, low-profile breakers, and user-defined alarms help ensure uptime and safety for mission-critical equipment.
| Specification | Details |
|---|---|
| SKU / Part Number | AP8958NA3 |
| Product Type | Switched Rack PDU |
| PDU Form Factor | Vertical (ZeroU) |
| Mounting | Rack-mounted (side), includes brackets |
| Input Plug Type | NEMA L6-20P |
| Input Voltage | 200–240V AC |
| Output Voltage | 200, 208, 230, 240V AC |
| Output Connections | (7) IEC 60320 C13, (1) IEC 60320 C19 |
| Maximum Input Current | 20A |
| Line Rated Current | 16A |
| Power Capacity | 3300 VA |
| Cord Length | 3 meters (9.84 ft) |
| Dimensions (H x W x D) | 98.8 x 5.6 x 4.6 cm (38.9 x 2.2 x 1.81 in) |
| Weight | 3.23 kg (7.12 lb) |
| Indicators/Alarms | User-defined overload warnings, metering |
| Remote Access | Web, SNMP, Telnet |
| Included Accessories | Mounting brackets, safety guide, config cable |
| Certifications | UL, cUL, VDE, PSE, VCCI Class A, RoHS, REACh |
| Operating Temperature | -5 to 60°C (23 to 140°F) |
| Relative Humidity | 5–95% |
| Altitude (Operation) | 0–10,000 ft |
| Warranty | 2-year repair or replace |
