Description

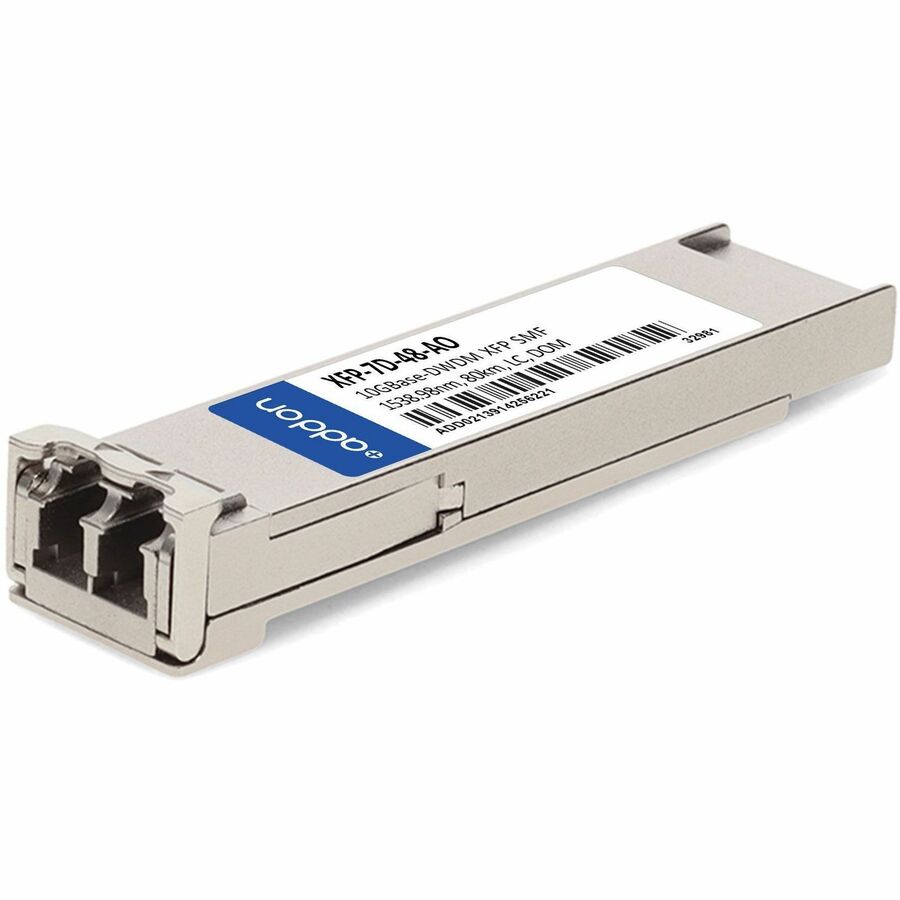

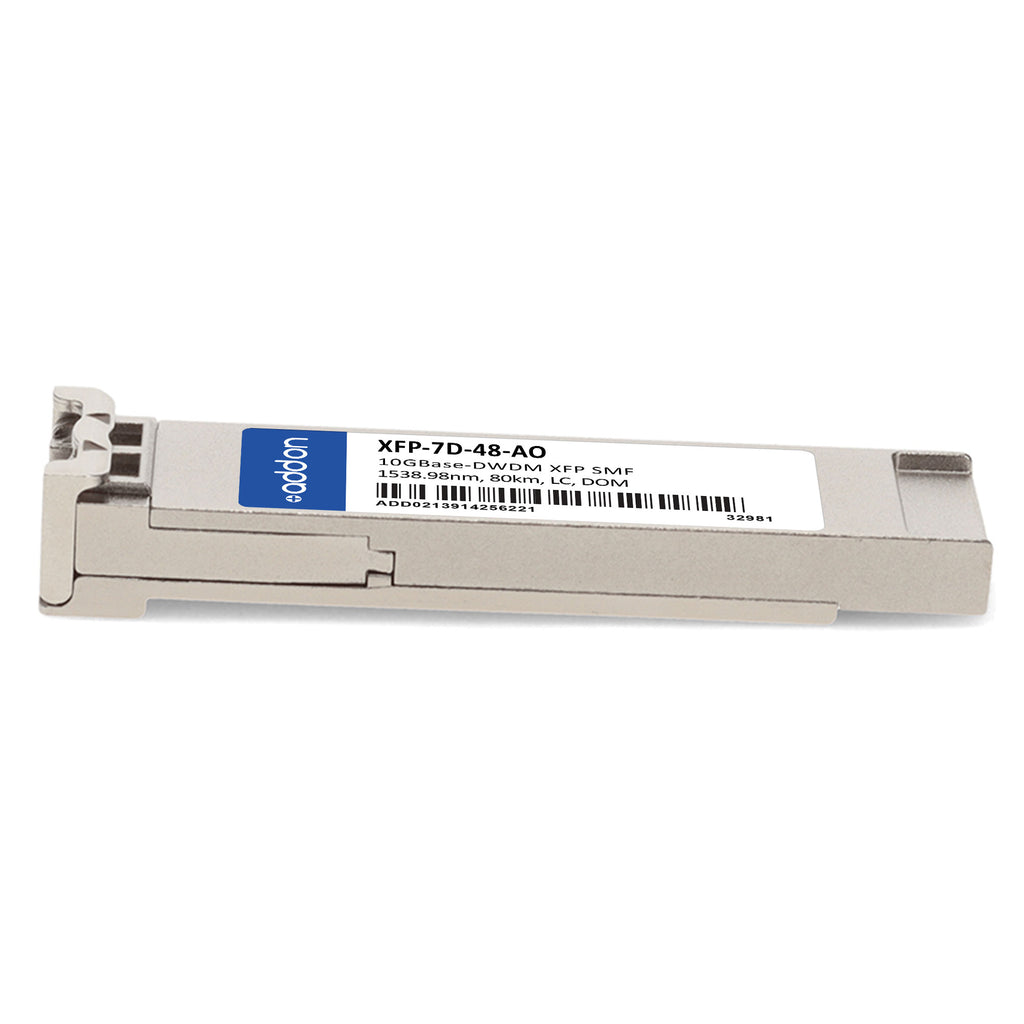

The AddOn Rad® XFP-7D-48 compatible TAA 10GBase-DWDM XFP transceiver delivers high-performance, long-distance optical connectivity for metro, access, and enterprise network applications. Supporting up to 80km transmission over single-mode fiber (SMF) at a wavelength of 1538.98nm, this hot-pluggable module ensures seamless integration with Rad® networking equipment. It features a temperature-stabilized EML transmitter and APD receiver for superior signal quality, as well as Digital Optical Monitoring (DOM) for real-time diagnostics. Built to meet INF-8077i standards, this transceiver offers excellent ESD protection, low EMI, and full RoHS compliance. Each unit is programmed, serialized, and rigorously tested for compatibility and performance, guaranteeing reliable 10G DWDM transmission and long-term network stability.
| Specification | Description |
|---|---|
| SKU | XFP-7D-48-AO |
| Brand Compatibility | Rad® |
| Form Factor | XFP |
| Data Rate | 10GBase-DWDM |
| Wavelength | 1538.98nm (ITU Channel 48, 100GHz) |
| Transmission Distance | Up to 80km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity (Rx) | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Receiver Wavelength Range | 1260nm – 1620nm |
| Extinction Ratio | ≥ 9 dB |
| Transmitter & Dispersion Penalty | ≤ 3 dB |
| Power Supply Voltage | +3.3V / +5V |
| Power Consumption | ≤ 3.5 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance Standards | INF-8077i, MSA, RoHS, TAA |
| Monitoring | Digital Optical Monitoring (DOM) |
| Applications | 8x/10x Fibre Channel, 10x Gigabit Ethernet over DWDM, Metro/Access/Enterprise networks |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
