Description

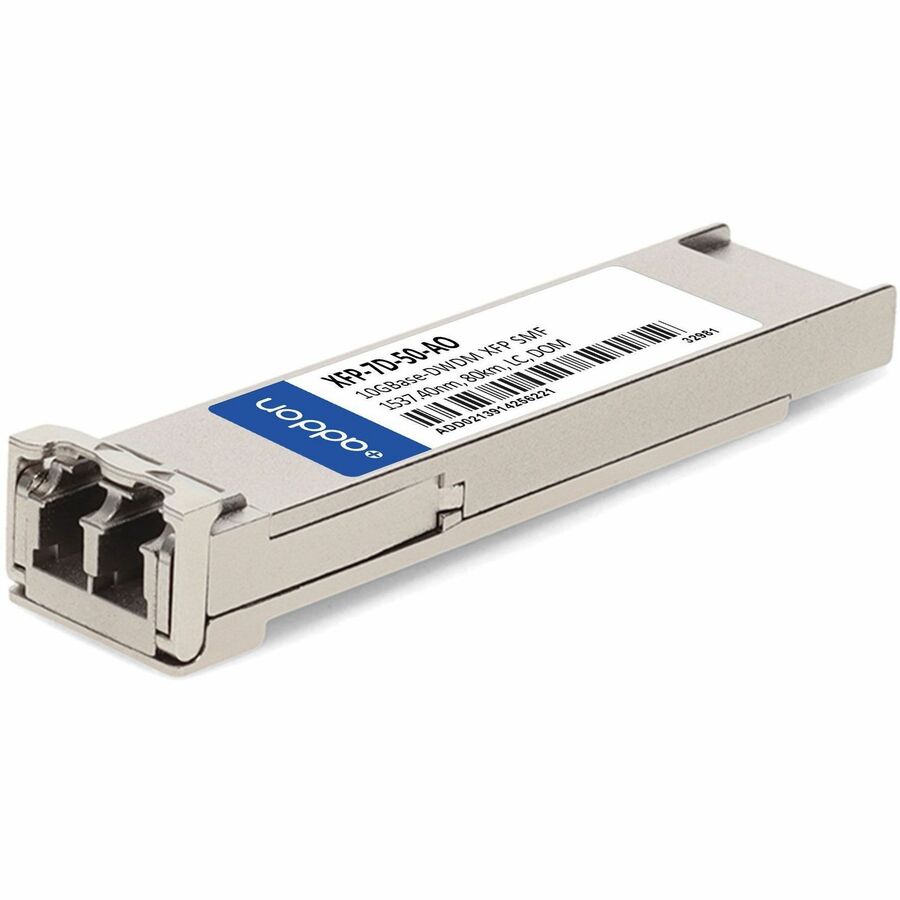

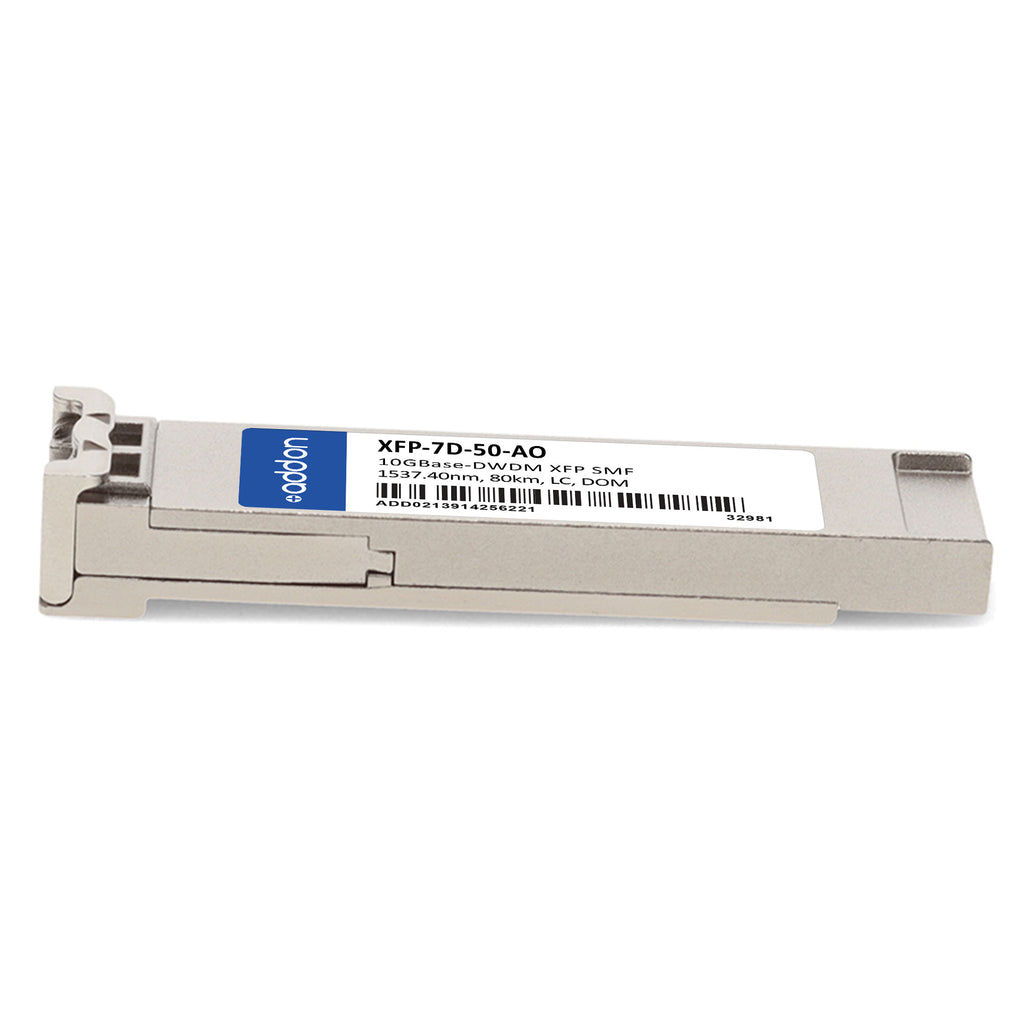

The AddOn Rad® XFP-7D-50-AO is a 10GBase-DWDM XFP transceiver designed for high-capacity, long-distance optical networking applications. It supports up to 80km transmission over single-mode fiber (SMF) on the ITU-T C-Band Channel DW50 (1537.40nm) using a duplex LC connector. Engineered with a temperature-stabilized EML transmitter and APD receiver, this transceiver ensures superior optical performance and reliability. It features Digital Optical Monitoring (DOM) for real-time parameter tracking and is hot-pluggable for easy installation and maintenance. Fully compliant with INF-8077i standards and Trade Agreements Act (TAA) requirements, this module guarantees 100% compatibility with Rad® equipment and seamless network integration across 8G/10G Fibre Channel, 10G Ethernet, metro, access, and enterprise environments.
| Specification | Details |
|---|---|
| SKU | XFP-7D-50-AO |
| Brand Compatibility | Rad® |
| Form Factor | XFP |
| Data Rate | 10GBase-DWDM |
| Wavelength | 1537.40nm (C-Band DW50, 100GHz ITU Grid) |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity (Rx) | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Operating Temperature | 0°C to 70°C |
| Compliance | INF-8077i, MSA, RoHS, TAA |
| DOM Support | Yes |
| Hot Pluggable | Yes |
| Applications | 8G/10G Fibre Channel, 10G Ethernet DWDM, Metro, Access, Enterprise |
| Power Consumption | 3.5 W (typical) |
| Power Supply | 3.3V / 5V |
| Dimensions | XFP MSA standard |
