Description

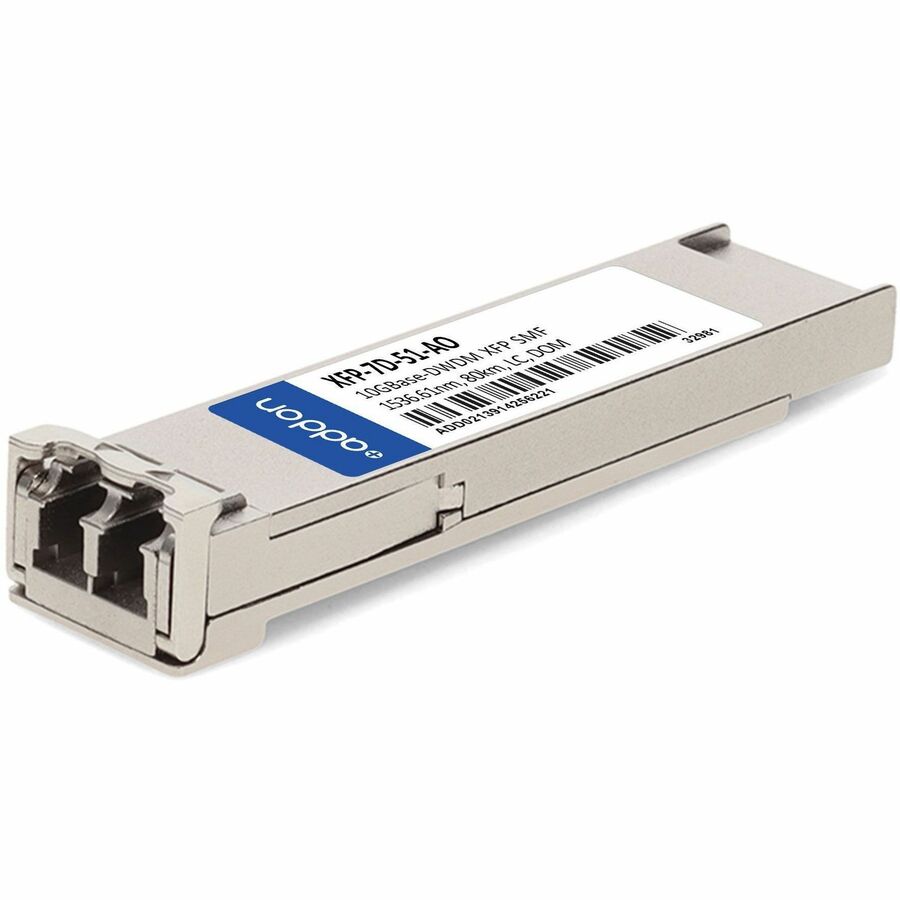

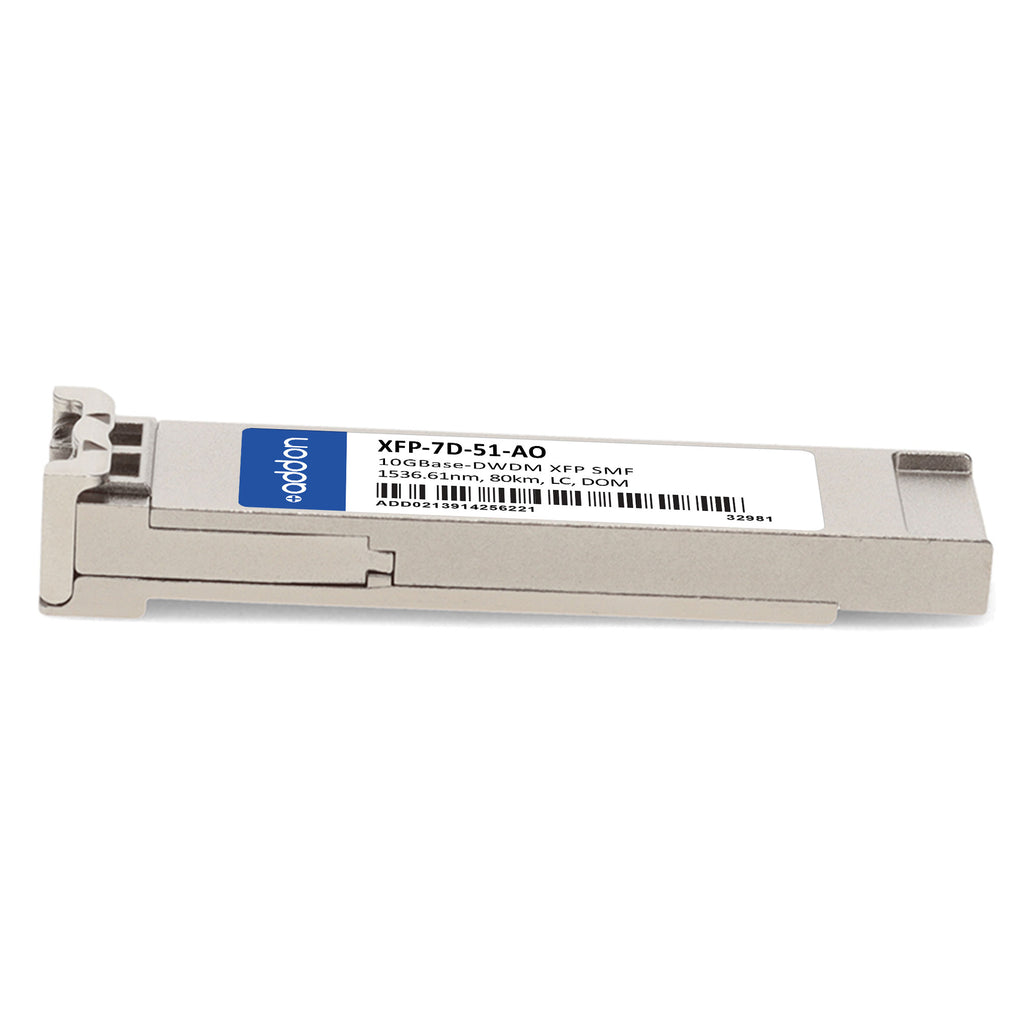

The AddOn Rad® XFP-7D-51-AO is a high-performance 10GBase-DWDM XFP transceiver designed for reliable long-distance data transmission over single-mode fiber (SMF) up to 80km. Operating at a 1536.61nm wavelength with a 100GHz channel spacing, this transceiver is fully compatible with the equivalent Rad® module and is hot-swappable for seamless deployment. Featuring a temperature-stabilized EML transmitter and APD receiver, it ensures optimal signal integrity and stability even under demanding network conditions. The module supports Digital Optical Monitoring (DOM) for real-time diagnostics and adheres to INF-8077i standards, making it ideal for 10G Ethernet, 8x/10x Fibre Channel, and metro or enterprise DWDM applications. TAA-compliant, RoHS certified, and built with robust EMI shielding, this transceiver guarantees exceptional reliability and network performance.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| Part Number | XFP-7D-51-AO |
| OEM Compatibility | Rad® XFP-7D-51 |
| Form Factor | XFP |
| Data Rate | Up to 11.3 Gbps |
| Transmission Standard | 10GBase-DWDM |
| Wavelength | 1536.61nm (ITU Channel 51, 100GHz) |
| Transmission Distance | Up to 80km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Optical Power (TX) | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Receiver Wavelength Range | 1260nm – 1620nm |
| Extinction Ratio | ≥ 9 dB |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.3V / 5V |
| Power Consumption | 3.5W (typical) |
| Compliance | INF-8077i, TAA, RoHS |
| Applications | 10G Ethernet, 8x/10x Fibre Channel, Access, Metro, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
