Description

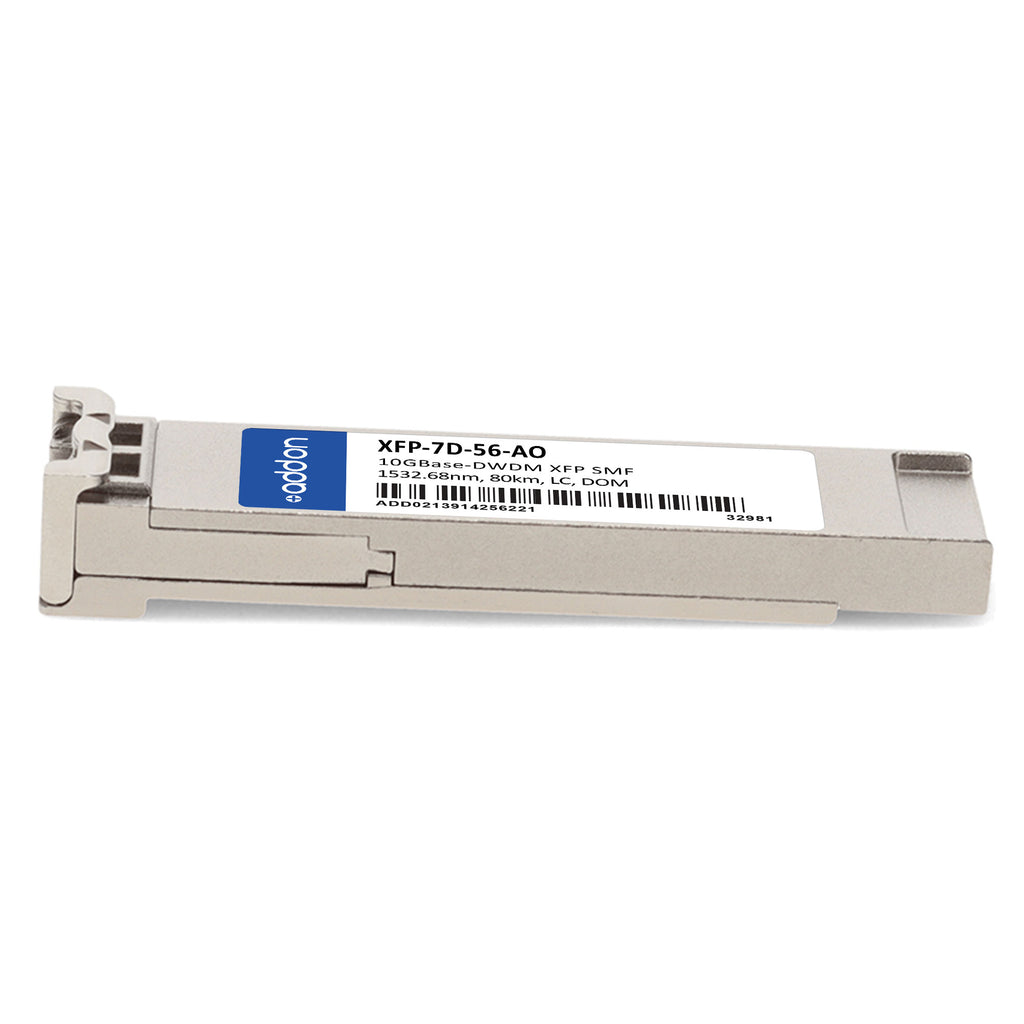

The AddOn Rad® XFP-7D-56 Compatible TAA 10GBase-DWDM XFP Transceiver is a high-performance optical module designed to deliver reliable 10Gbps data transmission over single-mode fiber (SMF) for distances up to 80km. Operating at a wavelength of 1532.68nm on a 100GHz DWDM channel, it is equipped with a temperature-stabilized EML transmitter and an APD receiver to ensure consistent optical performance. Featuring a duplex LC connector, digital optical monitoring (DOM), and full compliance with the INF-8077i MSA standard, this hot-swappable transceiver is ideal for applications including 8x/10x Fibre Channel, 10GbE over DWDM, and metro or enterprise network deployments. It is fully TAA compliant, RoHS certified, and guaranteed 100% compatible with the equivalent Rad® transceiver — backed by AddOn’s rigorous testing and limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | XFP-7D-56-AO |
| Form Factor | XFP |
| Data Rate | 10 Gbps |
| Application | 8x/10x Fibre Channel, 10G Ethernet over DWDM, Access, Metro, Enterprise |
| Wavelength | 1532.68 nm (100GHz ITU Channel 56) |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-Stabilized EML |
| Receiver Type | APD Receiver |
| Digital Diagnostics (DOM) | Supported |
| Hot Swappable | Yes |
| Optical Power (Avg.) | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Consumption | 3.5 W |
| Compliance | INF-8077i, TAA, RoHS, MSA |
| Warranty | Limited Lifetime Warranty |
