Description

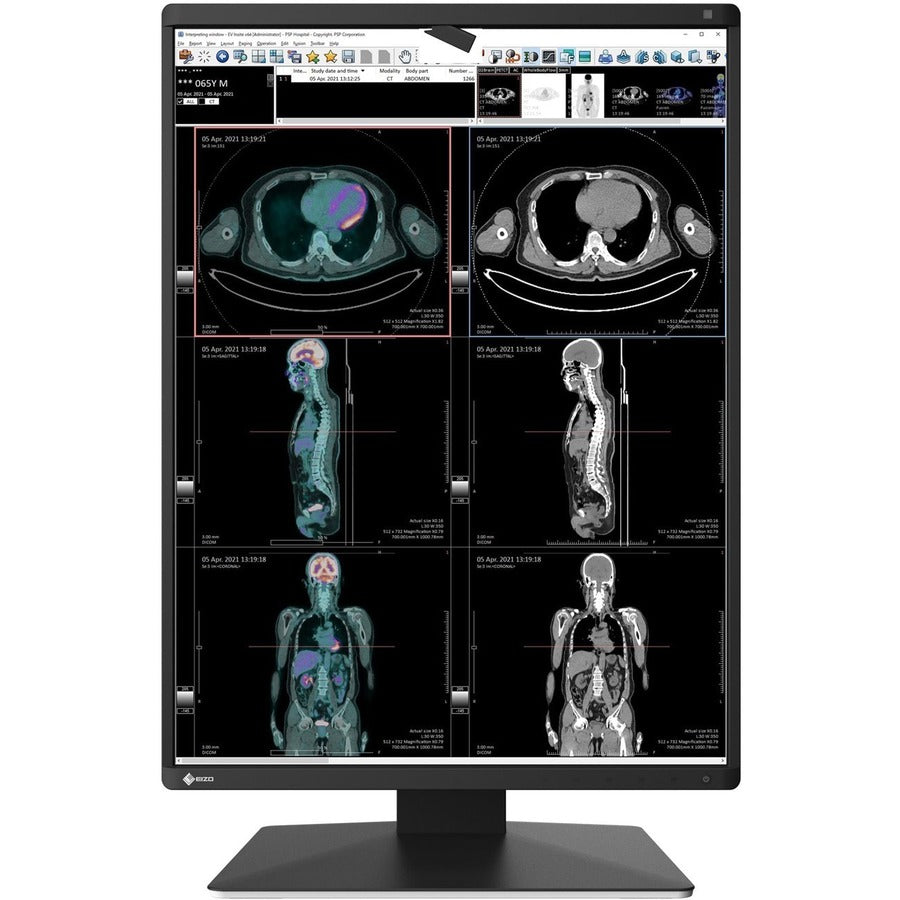

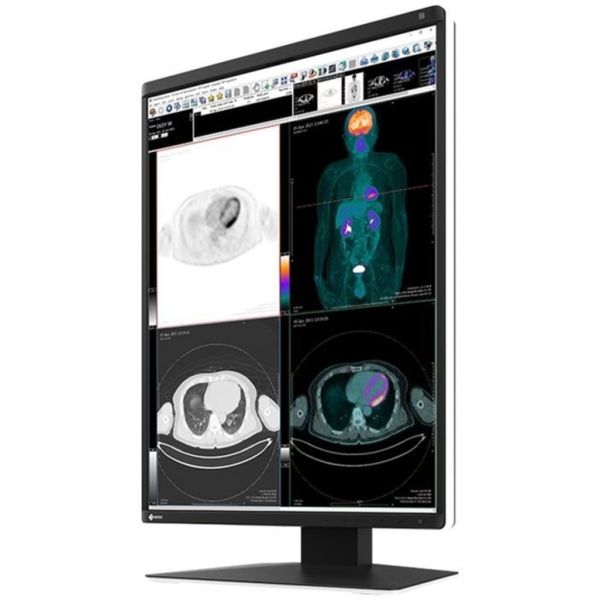

The EIZO RadiForce RX370-BK is a premium 21.3-inch color medical diagnostic display engineered for precision imaging across multiple modalities, including CR, DR, MRI, CT, and ultrasound. With a 3-megapixel (2048 x 2560) resolution and advanced IPS panel technology, the RX370 delivers exceptional image clarity, stable brightness, and consistent grayscale performance essential for accurate diagnoses.
Designed with the needs of modern radiology environments in mind, this monitor features DICOM Part 14 compliance for precise grayscale reproduction and EIZOās Digital Uniformity Equalizer (DUE) to ensure uniform brightness and color across the screen. The Hybrid Gamma PXL function automatically optimizes each pixel for monochrome and color content, enabling simultaneous, accurate display of X-ray and ultrasound images.

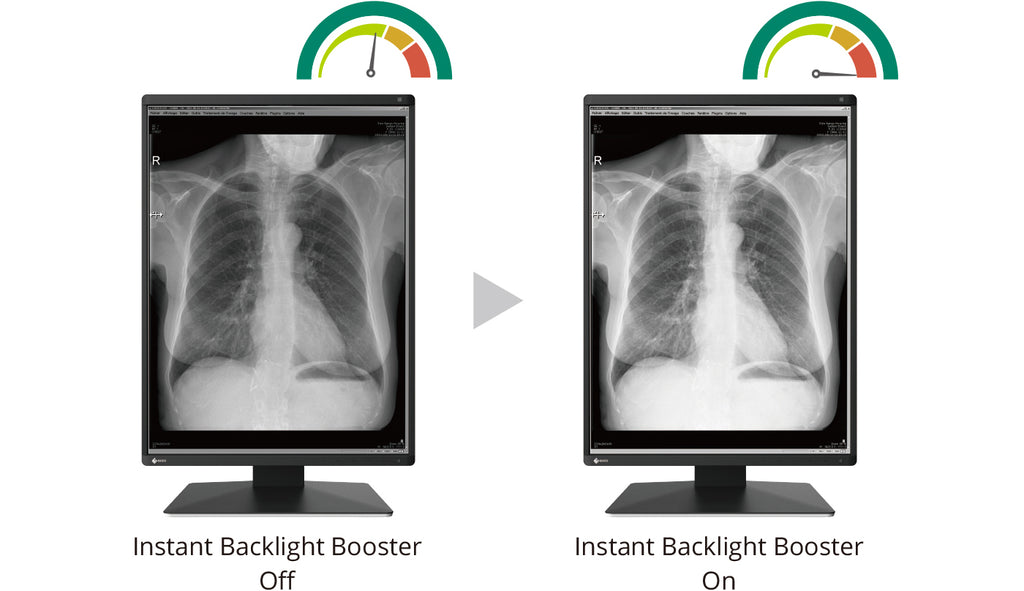

The RX370 enhances clinical workflow with Work-and-Flow technology, including features like Hide-and-Seek, Switch-and-Go, and Point-and-Focus, allowing radiologists to operate multiple workstations, manage patient data, and focus on critical image areas seamlessly. An Instant Backlight Booster provides rapid brightness adjustments for detailed examinations, while integrated sensors ensure ongoing brightness stability and automatic calibration.
Built for long-term reliability, the RX370-BK features DisplayPort daisy-chaining for multi-monitor setups, a wide 178Ā° viewing angle, and robust medical-grade certifications including FDA 510(k) clearance for general radiography. Its ergonomic design, anti-glare coating, and intuitive operation make it an indispensable solution for diagnostic imaging workstations.
| Feature | Specification |
|---|---|
| Model | EIZO RadiForce RX370-BK |
| Panel Type | Color (IPS) |
| Backlight | LED |
| Screen Size | 21.3" (54.1 cm) |
| Native Resolution | 2048 x 2560 (4:5 aspect ratio) |
| Pixel Pitch | 0.165 x 0.165 mm |
| Viewable Area (H x V) | 337.9 x 422.4 mm |
| Display Colors | 10-bit: 1.07 billion from a 543 billion palette; 8-bit: 16.77 million |
| Viewing Angles | 178Ā° / 178Ā° |
| Brightness (Typical) | 1200 cd/mĀ² |
| Recommended Brightness (Calibration) | 500 cd/mĀ² |
| Contrast Ratio | 2200:1 |
| Response Time | 12.5 ms (black-white-black, half cycle) |
| Video Inputs | DisplayPort x2, DVI-D (dual link) |
| Output Terminals | DisplayPort (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 - 135 kHz / 23 - 61 Hz |
| USB Upstream | USB 2.0: Type-B x 2 |
| USB Downstream | USB 2.0: Type-A x 2 |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 34 W |
| Maximum Power Consumption | 115 W |
| Power Save Mode | 1 W or less |
| Sensors | Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer (DUE) | Yes |
| Hybrid Gamma PXL | Yes |
| Work-and-Flow Features | Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster |
| Preset Modes | DICOM, CAL1, CAL2, Custom, sRGB, Text |
| Certifications & Standards | CB, CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC |
| FDA Clearance | 510(k) for General Radiography |
| Weight (With Stand) | 8 kg |
| Weight (Without Stand) | 4.8 kg |
| VESA Mount | 100 x 100 mm |
| Warranty | 5 Years |
