Description

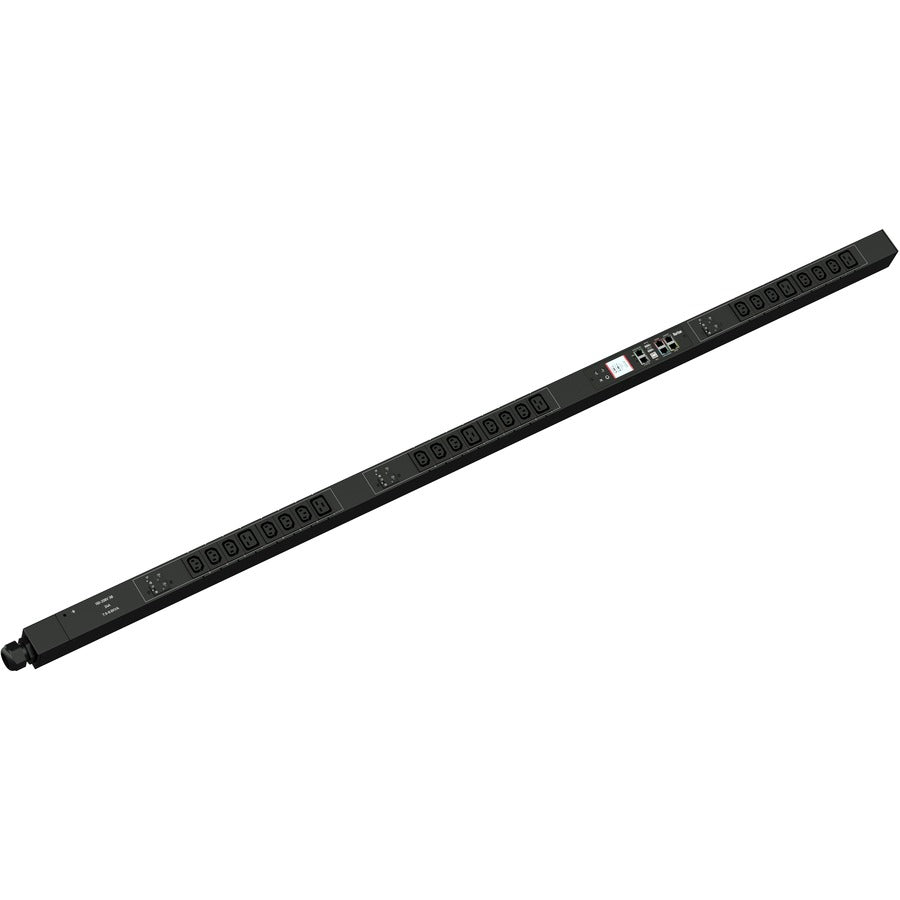

The Raritan PX3-5524V-C5 is a fully networked intelligent rack PDU designed for high-density data centers requiring precise energy metering and remote outlet-level control. This 208V 3-phase PDU supports advanced monitoring of voltage, current, power factor, active power, and energy usage across input lines, branch circuit breakers, and individual outlets. Equipped with a replaceable controller, Gigabit Ethernet ports, cascading support, and compatibility with environmental sensors, it delivers exceptional reliability and operational insight. Its 24-outlet configuration with SecureLock support ensures secure connections for mission-critical IT equipment in demanding environments.
| Category | Details |
|---|---|
| Model | PX3-5524V-C5 |
| Input Plug | NEMA L21-30P (4P5W), IP44 |
| Input Voltage | 208V 3-Phase (190–208V rated) |
| Input Current | 30A max |
| Power Capacity | 7.9kVA @ 190V / 8.6kVA @ 208V |
| Cord Length | 3m (9.84 ft), bottom-entry |
| Output Receptacles | (18) C13 (12A), (6) C19 (16A) |
| SecureLock / Cord Retention | Yes |
| Overload Protection | (3) LEGBXA66-20 breakers |
| Metering Capabilities | Voltage, Current, Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor |
| Metering Accuracy | ±1% for V/A/Power/Energy |
| Per-Outlet Metering | Yes |
| Per-Breaker Metering | Yes |
| Remote Outlet Switching | Yes |
| Networking | Dual Gigabit Ethernet, optional Wi-Fi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, SMTP, JSON-RPC, Modbus/TCP |
| Cascading | Up to 32 PDUs via USB + 32 PDUs via Ethernet |
| Display | Color LCD with auto-flip orientation |
| Processor | ARM Cortex-A5, 536MHz, 64MB DDR2 RAM |
| Environmental Sensor Support | Temperature, Humidity, Airflow, Differential Pressure, Water Leak, Contact Closure |
| Dimensions (WxDxH) | 2.1" × 2.6" × 70.1" (52mm × 65mm × 1780mm) |
| Unit Weight | 6.8 kg |
| Shipping Weight | 9.3 kg |
| Operating Temperature | Up to 60°C |
| Humidity | Up to 85% RH |
| Elevation | 0–6000 ft |
| Certifications | UL, ICES-003, FCC Part 15 Class A, RoHS |
| Warranty | 2-year standard |
| Mounting | G2-RACK-FOR-ZU |
