Description

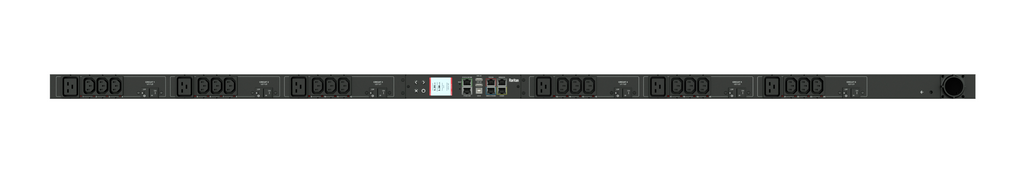

The Raritan PX3-5529-N2V2 is a high-performance intelligent rack PDU engineered for demanding data-center and enterprise power environments. It delivers advanced outlet-level metering, secure remote switching, and precise energy monitoring for every input line, circuit breaker, and individual receptacle. Featuring dual Ethernet ports, optional Wi-Fi, environmental sensor support, and a replaceable controller, this PDU provides robust visibility and remote management for mission-critical power distribution.
Designed for 208V 3-phase infrastructure, the PX3-5529-N2V2 offers 17.3kVA capacity with a 60A IEC 60309 input plug, plus SecureLock-ready C13 and C19 outlets to prevent accidental disconnects. A color LCD provides instant local diagnostics, while cascading support enables efficient multi-PDU deployments. This model is ideal for data centers, server rooms, colocation facilities, and high-density compute racks requiring accurate power usage data and dependable remote control.v
| Category | Details |
|---|---|
| Model | Raritan PX3-5529-N2V2 |
| Input Plug | IEC 60309 3P+E 9h 60A, IP67 |
| Input Voltage | 208–240V, 3-phase |
| Nominal Voltage | 208V 3Φ |
| Max Input Current | 60A |
| Power Capacity | 17.3kVA at 208V / 20kVA at 240V |
| Cord Length | 3m (9.84 ft), bottom-front feed |
| Output Receptacles | (18) C13 12A; (6) C19 16A |
| SecureLock Support | Yes |
| Overload Protection | (6) LEGBX66-20 breakers, 5kAIC |
| Metering Capabilities | Voltage, Current, kW, kVA, kWh, Power Factor; per line, per breaker, per outlet |
| Metering Accuracy | ±1% (ISO/IEC 62053-21) |
| Remote Outlet Switching | Yes |
| Networking | Dual Gigabit Ethernet; optional Wi-Fi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, Serial, Power IQ, SNMP v2/v3, SMTP, JSON-RPC, Modbus TCP |
| Cascading | Up to 32 PDUs via USB + 32 via Ethernet |
| Environmental Sensors | Temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Onboard Display | Color LCD (auto-flip orientation) |
| Processor | ARM Cortex-A5, 536MHz, 16MB SPI Flash, 64MB DDR2 RAM |
| Operating Temp | Up to 60°C |
| Humidity | Up to 85% RH |
| Regulatory | UL Listed, ICES-003, FCC Part 15 Class A, RoHS |
| Dimensions (WxDxH) | 1.8" × 3.9" × 67.0" (45 × 100 × 1702 mm) |
| Unit Weight | 14 kg |
| Mounting | Tool-less button mount |
| Warranty | 2 years standard |
