Description

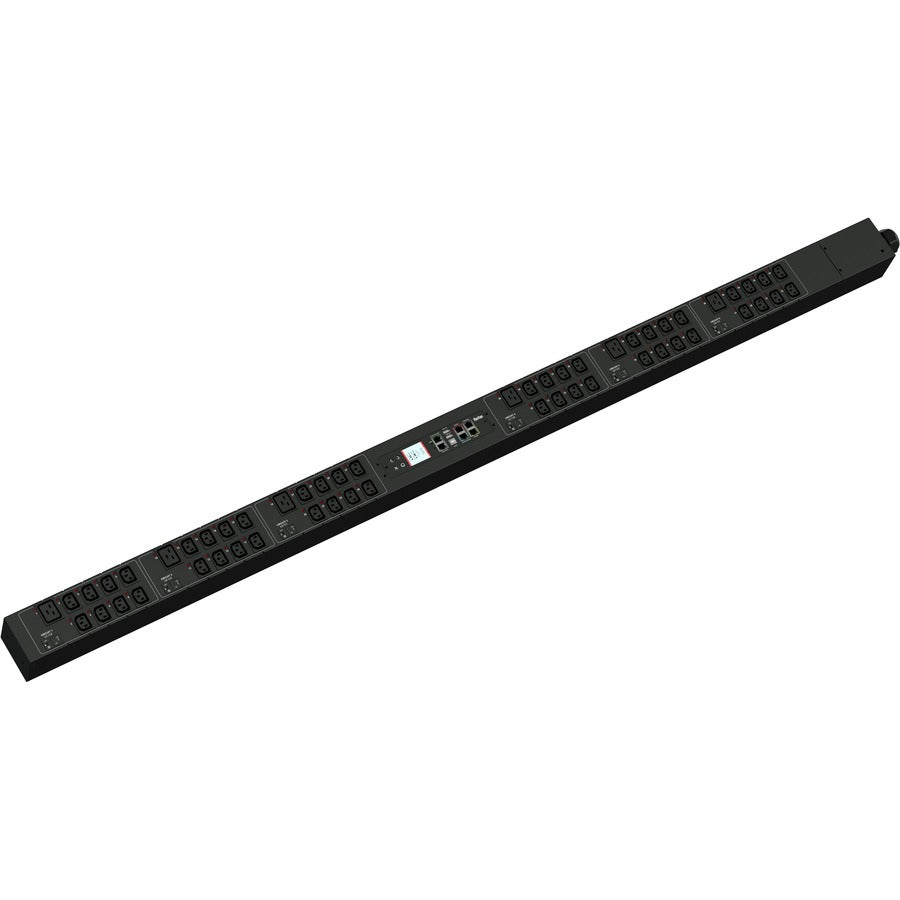

The Raritan PX3-5785U-V2 Intelligent Rack PDU delivers high-density power distribution, advanced outlet-level metering, and remote switching for modern data center environments. Designed for three-phase 208V power, it supports demanding compute and storage racks with a robust 60A input and a total power capacity of up to 17.3kVA.
This model provides 48 IEC C13 and 6 IEC C19 outlets with SecureLock support to prevent accidental disconnects, plus per-line, per-breaker, and per-outlet metering for precise visibility and energy optimization. A color LCD display, dual Ethernet ports, environmental sensor compatibility, and remote management (HTTP/HTTPS, SSH, SNMP, Modbus, JSON-RPC) make this PDU ideal for enterprise-class monitoring and control.
Engineered for reliability and operational efficiency, the PX3-5785U-V2 includes tool-less mounting, replaceable controller architecture, branch circuit monitoring, and overload protection—ensuring consistent uptime in mission-critical IT environments.
| Category | Details |
|---|---|
| SKU | PX3-5785U-V2 |
| Input Plug | IEC 60309 3P+E 9h, 60A, IP67 |
| Input Voltage | 208V 3-Phase nominal (208–240V rated) |
| Maximum Input Current | 60A |
| Power Capacity | 17.3kVA @ 208V, 20.0kVA @ 240V |
| Input Frequency | 50/60 Hz |
| Cord Length | 3 m (9.84 ft), top-end feed |
| Output Voltage | 208–240V |
| Outlets | (48) IEC C13 (12A), (6) IEC C19 (16A) |
| SecureLock Support | Yes |
| Outlet Switching | Remote individual switching |
| Metering | Per input line, branch breaker, and outlet |
| Metering Accuracy | ±1% per ISO/IEC 62053-21 |
| Environmental Sensor Support | Temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Networking | Dual Gigabit Ethernet (primary + secondary), optional WiFi |
| Management Protocols | HTTP/HTTPS, SSH, Telnet, RS-232, SNMP v2/v3, Modbus TCP, JSON-RPC, Power IQ |
| Cascading | Up to 32 PDUs via USB; 32 via Ethernet |
| Display | Color matrix LCD with auto-flip orientation |
| Processor | ARM Cortex A5 536MHz, 16MB Flash, 64MB DDR2 RAM |
| Overload Protection | (6) LEGBX66-20 breakers, 5kAIC |
| Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% RH |
| Mounting | Tool-less button mount |
| Unit Dimensions | 3.5" W × 3.1" D × 70.1" H (89mm × 80mm × 1780mm) |
| Unit Weight | 15 kg |
| Regulatory | UL Listed, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2 years |
