Description

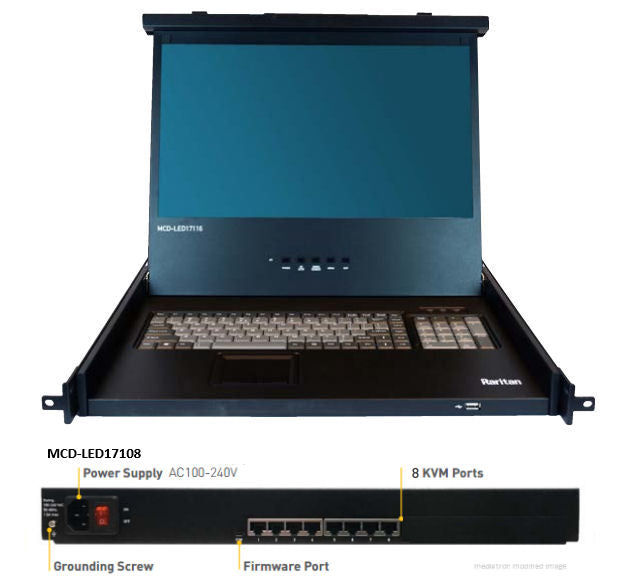

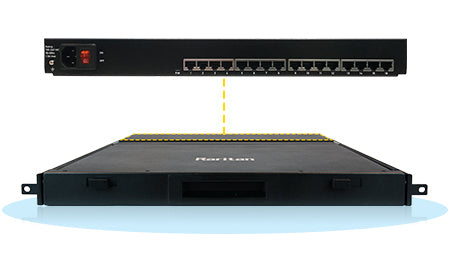

The Raritan MCD-LED17108 is a compact 1U LCD console drawer with an integrated 8-port digital KVM switch designed for small to midsized IT environments. It delivers Full HD video, intuitive at-the-rack server control, and the flexibility to manage both digital and analog video sources from a single device.
Featuring a 17.3" LED-backlit widescreen display, touchpad mouse, and an easy on-screen interface, this console provides seamless access for system administration, maintenance, and troubleshooting. The switch supports VGA, DVI, HDMI, and DisplayPort through Category 5/6/6e cabling—offering modern compatibility while still supporting legacy equipment.
Engineered for efficiency, the MCD-LED17108 can cascade to manage up to 256 servers, includes password protection, AutoScan and AutoSkip features, and maintains server operation even during power interruptions with keep-alive technology. It is an ideal all-in-one solution for streamlined server management.
| Specification | Details |
|---|---|
| Model | Raritan MCD-LED17108 |
| Form Factor | 1U LCD console drawer with integrated KVM switch |
| Display | 17.3" TFT LED-backlit LCD |
| Max Resolution | 1920 × 1080 @ 60Hz (Full HD) |
| Pixel Pitch | 0.1989 mm (H) × 0.1989 mm (V) |
| Brightness | 300 nits |
| Contrast Ratio | 650:1 (typical) |
| Video Interfaces Supported | VGA, DVI, HDMI, DisplayPort |
| User Access | Single-user |
| KVM Ports | 8 ports |
| Max Cascaded Systems | Up to 256 managed servers |
| Server Connectivity | CAT5/5e/6/6e UTP |
| Security | Password protection |
| Functions | AutoScan, AutoSkip, on-screen display, hotkey switching |
| Power Input | AC100–240V, 1.5A; DC12V/5.42A (65W) |
| Dimensions (L × W × H) | 562.71 × 484.7 × 41.5 mm |
| Weight | 11.15 kg |
| MTBF | >300,000 hours |
