Description

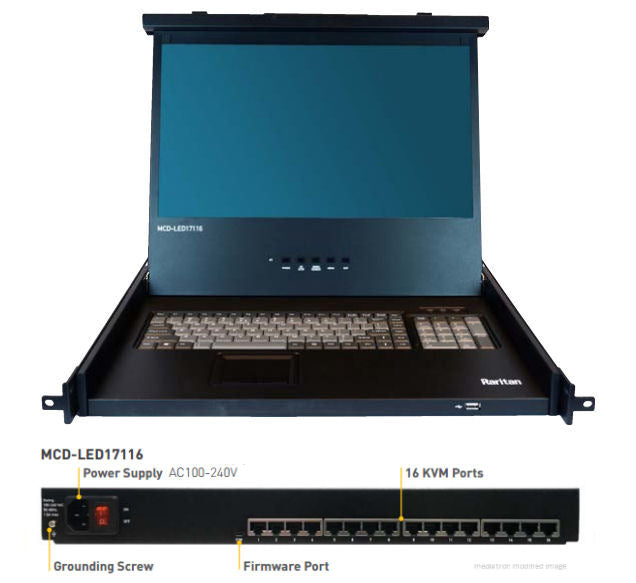

The Raritan MCD-LED17116 is a 1U LCD console drawer integrated with a 16-port MasterConsole Digital KVM switch, designed for reliable, efficient server management in small to midsized IT environments. Featuring a 17.3" Full HD LED display, intuitive on-screen controls, and multi-interface video support (VGA, DVI, HDMI, DisplayPort), it provides seamless access to both modern and legacy servers through a single solution.
Supporting resolutions up to 1920×1080, the MCD-LED17116 delivers crisp visuals for administration, troubleshooting, and routine maintenance tasks. With cascading capability for up to 512 managed servers, password-protected access, and an ergonomic drawer design, it ensures streamlined operation directly at the rack.
| Category | Details |
|---|---|
| Model | MCD-LED17116 |
| Type | 1U LCD Console Drawer with Integrated KVM Switch |
| User Access | 1 user |
| KVM Ports | 16 ports |
| Maximum Managed Servers (Cascaded) | Up to 512 servers |
| Video Resolution | 1920 × 1080 @ 60Hz (DVI) |
| LCD Panel | 17.3" TFT LCD with LED backlight |
| LCD Brightness | 300 nits |
| Contrast Ratio | 650:1 |
| Supported Colors | 262,144 |
| Pixel Pitch | 0.1989 mm (H) × 0.1989 mm (V) |
| MTBF | 15,000 hours |
| Video Interface Support | VGA, DVI, HDMI, DisplayPort (via CIMs) |
| Dimensions (W × D × H) | 481 × 571 × 43.9 mm |
| Weight | 12 kg |
| Power Input | AC 100–240V, 1.5A; DC 12V/5.42A (65W) |
| Additional Features | On-screen display, password authentication, automatic LCD power-off, cascading support |
