Description
The Raritan PX3-5466R is a 2U intelligent rack PDU engineered for high-density IT environments that require precise energy metering, secure outlet control, and robust environmental monitoring. Designed for 230V single-phase power distribution, it supports up to 7.7kVA and delivers comprehensive monitoring at the inlet, breaker, and outlet levels.
This model features 20 IEC C13 outlets with SecureLock support, remote outlet switching, and advanced measurement accuracy compliant with ISO/IEC 62053-21. A full-color LCD display provides real-time electrical parameters, while dual Ethernet ports and optional Wi-Fi ensure flexible network connectivity. With support for up to 32 cascaded PDUs and multiple environmental sensors, the PX3-5466R enables scalable, reliable, and fully managed power delivery across your racks.
| Category | Details |
|---|---|
| Input | |
| Input Plug | IEC 60309 2P+E 6h 32A (2P3W), IP44 |
| Nominal Voltage | 230V (200–240V rated) |
| Maximum Input Current | 32A |
| Input Frequency | 50/60Hz |
| Power Capacity | 6.4kVA @ 200V, 7.7kVA @ 240V |
| Cord Length | 3m (9.84 ft) |
| Cord Entry | Rear feed |
| Output | |
| Output Voltage | 230V nominal (200–240V rated) |

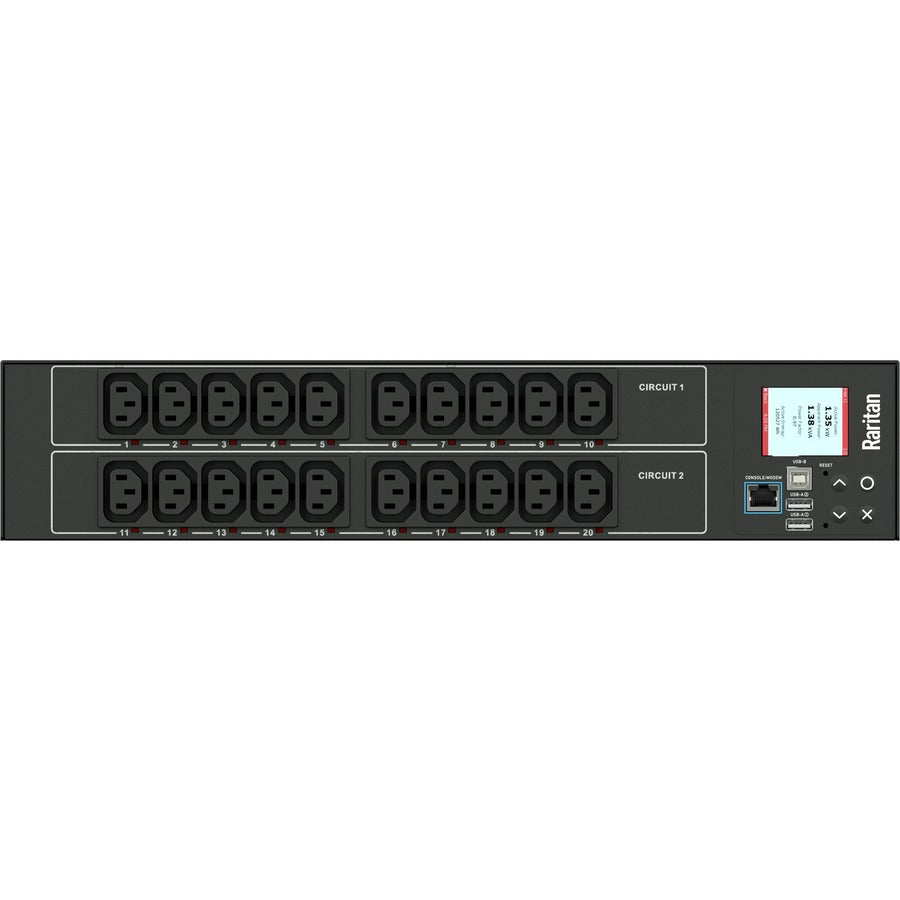

| Outlets | (20) IEC C13, 10A |
| SecureLock | Yes |
| Overload Protection | (2) Airpax LEGBX6-37483-16-V, 5kAIC |
| Metering & Control | |
| Metering | Per inlet, per breaker, per outlet |
| Metering Accuracy | ±1% (voltage, current, power, energy) |
| Remote Switching | Yes (per outlet) |
| Environmental Sensors | Temp, humidity, airflow, differential pressure, water leak, contact closure |
| Networking & Management | |
| Connectivity | Gigabit Ethernet; secondary 10/100 Ethernet; optional Wi-Fi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, RS-232, SNMP v2/v3, Modbus TCP, JSON-RPC, Power IQ |
| Cascading Support | Up to 32 PDUs via USB + 32 via Ethernet |
| Onboard Display | Color LCD (voltage, current, power, alarms, config) |
| Physical | |
| Dimensions (WxDxH) | 17.3 × 11.5 × 3.5 in (440 × 293 × 88 mm) |
| Unit Weight | 6.8 kg |
| Shipping Weight | 10.8 kg |
| Mounting | RACK-KIT-PX-2U |
| Color | Black powder coat |
| Environmental | |
| Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% RH |
| Operating Elevation | 0–6000 ft |
| Certifications & Warranty | |
| Approvals | CE, ICES-003, FCC Part 15 Class A, RoHS |
| Warranty | 2-year manufacturer warranty |
