Description

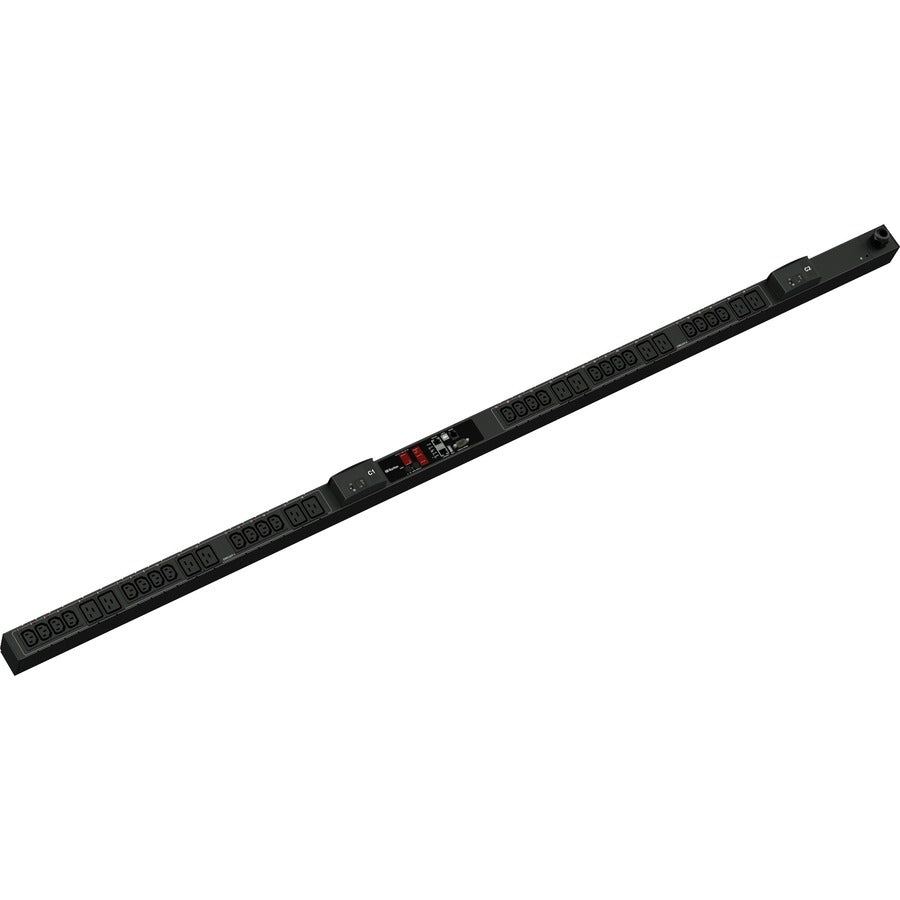

The Raritan PX2-2886 Intelligent Rack PDU delivers reliable, high-density power distribution with advanced inlet and breaker metering for modern data center environments. Designed for precise energy monitoring, it measures voltage, current, active power, real power, energy consumption, and power factor with 1% accuracy.
This model includes 36 total outlets (24× C13 and 12× C19) with SecureLock support to prevent accidental disconnects. With remote outlet switching, environmental sensor support, and rich network management protocols, the PX2-2886 provides complete visibility and control over IT power infrastructure.
Built for flexibility and long-term dependability, it features a 32A IEC 60309 input plug, 3-meter cord, ARM9 processing, daisy-chain capability for up to eight PDUs, and a durable 70-inch vertical form factor ideal for high-density racks.
| Category | Details |
|---|---|
| Input | |
| Input Plug | IEC 60309 2P+E 6h 32A |
| Nominal Input Voltage | 230V (200–240V rated) |
| Input Frequency | 50/60Hz |
| Maximum Input Current | 32A |
| Power Capacity | 6.4kVA at 200V, 7.7kVA at 240V |
| Cord Length | 3m (9.84 ft), bottom-front entry |
| Output | |
| Output Voltage | 230V (200–240V rated) |
| Outlets | 24× IEC C13 (10A), 12× IEC C19 (16A) |
| SecureLock | Yes |
| Overload Protection | (2) Airpax LEGBX6-37483-16-V breakers |
| Metering & Control | |
| Metering | Inlet & breaker-level metering (V, A, kW, kVA, kWh, PF) |
| Metering Accuracy | ISO/IEC 62053-21 1% |
| Remote Outlet Switching | Yes |
| Networking | 10/100 Ethernet; optional WiFi (802.11a/b/g/n) |
| Remote Management | HTTP/HTTPS, SNMP v2/v3, SSH, Telnet, RS-232, SMTP, JSON-RPC, Power IQ |
| Daisy-Chain Support | Up to 8 PDUs via USB |
| Environmental Sensors | Temp, humidity, airflow, differential pressure, water leak, contact closure |
| Onboard Display | 3-digit LED (orientation auto-flip) |
| Physical | |
| Dimensions (WxDxH) | 2.1 × 2.6 × 70.1 in (52 × 65 × 1780 mm) |
| Unit Weight | 7 kg |
| Color | Black powder coat |
| Mounting | G2-RACK-FOR-ZU |
| Environmental | |
| Operating Temperature | Up to 50°C |
| Operating Humidity | Up to 85% RH |
| Elevation | 0–10,000 ft operating |
| Compliance & Warranty | |
| Regulatory | CE, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year standard manufacturer warranty |
