Description

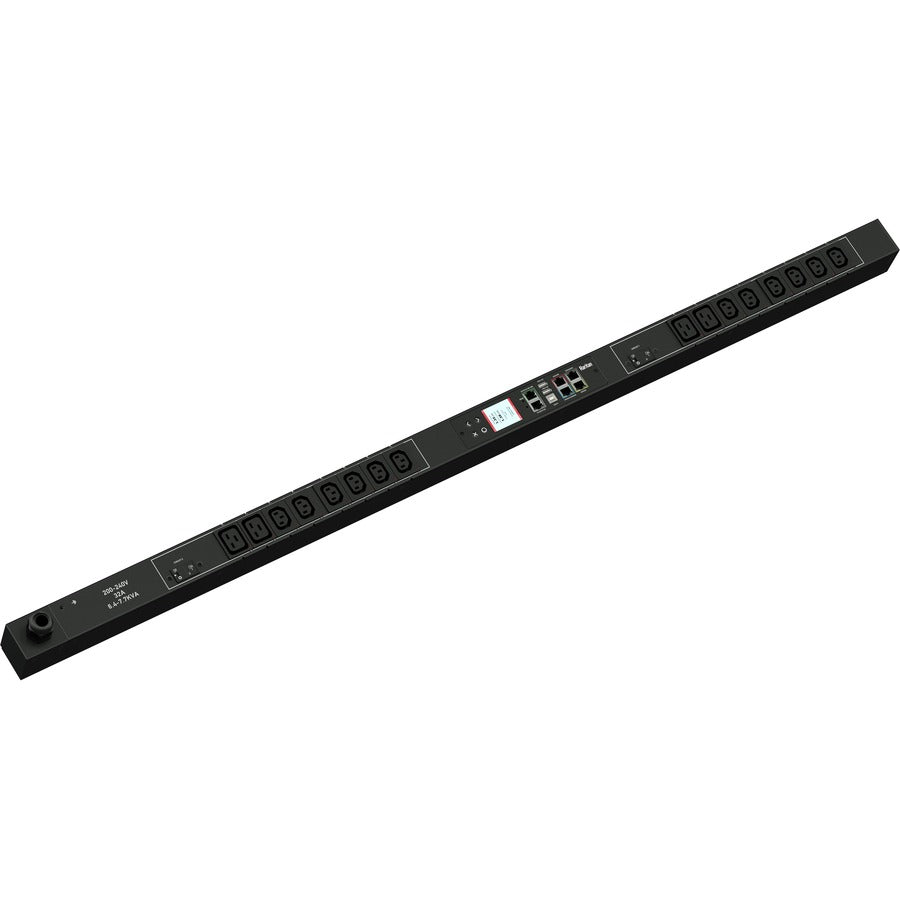

The Raritan PX3-5397 is a high-performance intelligent rack PDU designed for reliable power distribution, advanced metering, and remote outlet control in demanding IT environments. Rated at 230V and 32A, it delivers up to 7.7kVA of power with precise metering at the inlet, breaker, and individual outlet levels—ideal for data centers requiring detailed energy analytics and proactive capacity planning.
This model features 12 IEC C13 and 4 IEC C19 outlets, SecureLock support, environmental sensor integration, and dual Ethernet ports with optional Wi-Fi for redundant connectivity. Its hot-swappable controller, color LCD display, and wide range of remote management protocols make it a robust solution for modern, energy-efficient infrastructure.
| Category | Details |
|---|---|
| Model | Raritan PX3-5397 |
| Input Plug | IEC 60309 2P+E 6h 32A (2P3W) |
| Input Voltage | 200–240V AC (Nominal 230V) |
| Input Current | 32A max |
| Power Capacity | 6.4kVA @ 200V; 7.7kVA @ 240V |
| Frequency | 50/60 Hz |
| Output Receptacles | (12) IEC C13 (10A), (4) IEC C19 (16A) |
| SecureLock / Cord Retention | Yes |
| Overload Protection | (2) LEGBXA6-16 breakers |
| Metering | Voltage, Current, Power (kW / kVA), Energy (kWh), Power Factor |
| Metering Levels | Inlet, Branch Breaker, Outlet |
| Switching | Remote per-outlet switching |
| Networking | Dual Gigabit Ethernet (primary & redundant), optional Wi-Fi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, RS-232, Power IQ, JSON-RPC, Modbus TCP |
| Cascading | Daisy chain up to 16 PDUs via Ethernet or USB |
| Controller | Replaceable; ARM Cortex-A5 500MHz, 16MB Flash, 128MB RAM |
| Environmental Sensor Support | Temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Display | Color LCD (auto-flip orientation) |
| Dimensions (W × D × H) | 52mm × 65mm × 1298mm (2.1" × 2.6" × 51.1") |
| Unit Weight | 4.4 kg |
| Operating Temp | Up to 60°C |
| Regulatory Compliance | CE, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year standard (extended warranty available) |
