Description

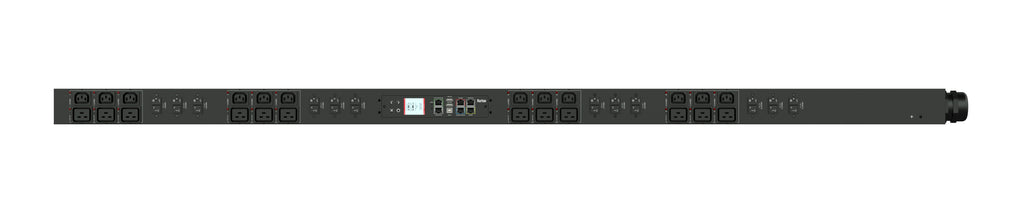

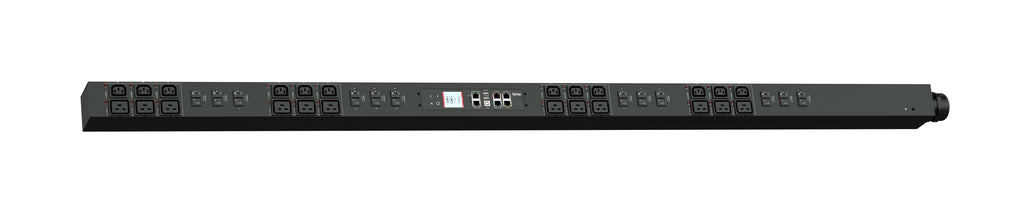

The Raritan PX3-4213U-V2 is a high-capacity intelligent rack PDU engineered for mission-critical data center power distribution. Designed with advanced outlet-level metering, branch-circuit monitoring, and enterprise-grade networking, this model delivers real-time energy visibility and operational reliability.
With support for environmental sensors, a replaceable controller, dual Ethernet ports, and an auto-orienting LCD display, the PX3-4213U-V2 provides robust monitoring and simplified management across high-density IT racks. Its 24 mixed IEC outlets, integrated circuit protection, and durable SOOW cabling make it ideal for enterprise servers, storage, and networking loads requiring 208V 3-phase power.
| Category | Specification |
|---|---|
| Model | PX3-4213U-V2 |
| Input Plug | IEC 60309 3P+E 9h 100A, IP67 |
| Input Voltage | 208–240V 3-phase (nominal 208V) |
| Max Input Current | 100A |
| Power Capacity | 28.8 kVA at 208V; 33.3 kVA at 240V |
| Cord Length | 3 m (9.84 ft) |
| Cable Type | SOOW 4C#2 |
| Output Receptacles | (12) IEC C13 (12A), (12) IEC C19 (16A) |
| Output Voltage | 208–240V |
| Overload Protection | (12) LEGBX66-20 breakers, 5 kAIC |
| Metering | Per line, per breaker, per outlet; ±1% accuracy |
| Environmental Sensors | Supports temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Networking | Dual Gigabit Ethernet (primary + redundant); Optional WiFi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, SMTP, JSON-RPC, Power IQ, Modbus over TCP |
| Cascading | Up to 32 PDUs via USB; 32 via Ethernet |
| Display | Color LCD with auto-flip orientation |
| Processor | ARM Cortex A5 536MHz, 16MB SPI Flash, 64MB DDR2 RAM |
| Dimensions (WxDxH) | 2.8″ × 3.1″ × 70.1″ (70mm × 80mm × 1780mm) |
| Unit Weight | 20.6 kg |
| Operating Temp | Up to 60°C |
| Regulatory | UL Listed, FCC Class A, ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
