Description
The Raritan PX3-4611R-E2 is a high-precision intelligent rack PDU engineered for data centers that require detailed energy metering and reliable 3-phase power distribution. Designed for 208V Delta environments, it delivers up to 14.4kVA and supports advanced monitoring at the inlet, branch circuit breaker, and individual outlet levels.

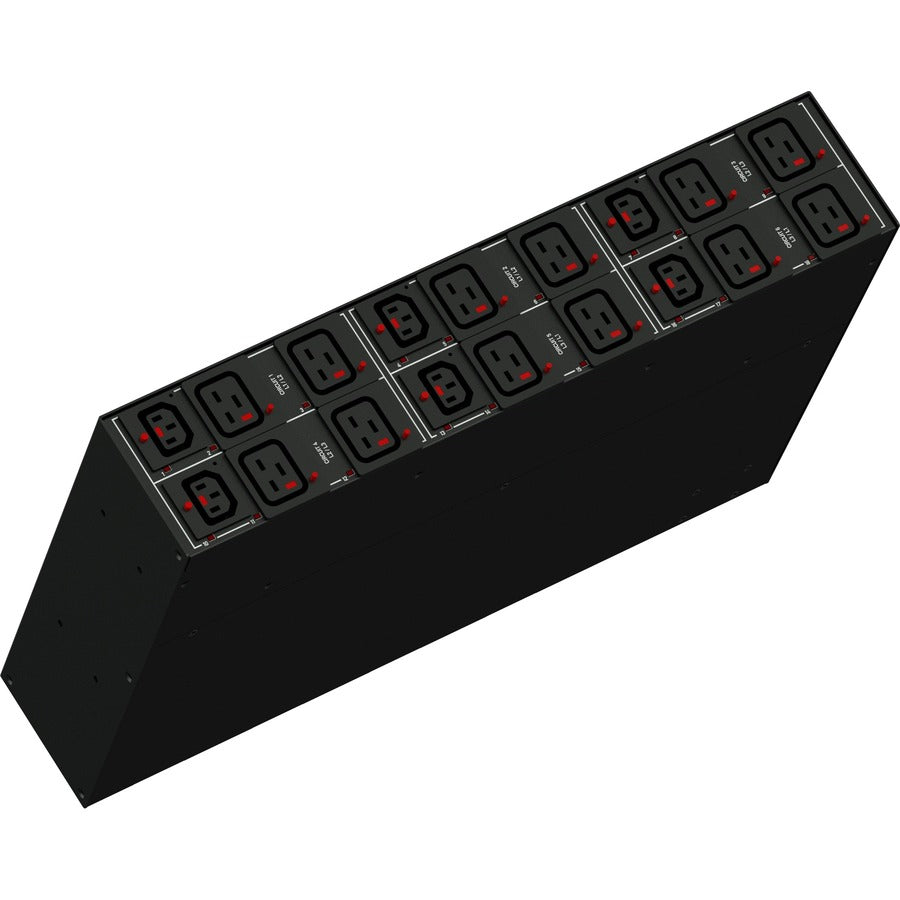

This 2U PDU features 18 locking outlets (6× C13 and 12× C19), SecureLock support, and robust overload protection. The unit includes Gigabit Ethernet connectivity, a secondary redundant Ethernet port, environmental sensor support, and an onboard color LCD for at-a-glance diagnostics. With support for HTTP(s), SNMP v2/v3, SSH, Telnet, Modbus TCP, and JSON-RPC, it integrates easily into modern DCIM tools and automation environments.
Built for reliability and operational visibility, the PX3-4611R-E2 helps IT teams ensure proper load balancing, reduce downtime, and optimize rack-level power usage.
| Category | Specification |
|---|---|
| Model | Raritan PX3-4611R-E2 |
| Input Plug | CS8365C (3P4W), IP20 |
| Input Voltage | 208–240V, 3-phase |
| Nominal Input Voltage | 208V |
| Maximum Input Current | 50A |
| Power Capacity | 14.4kVA (208V), 16.6kVA (240V) |
| Input Frequency | 50/60Hz |
| Cord Length | 3 meters (9.84 ft) |
| Cord Entry | Rear feed |
| Cable Type | SOOW 4C#8 |
| Output Voltage | 208–240V |
| Outlets | (6) IEC C13 locking (12A) / (12) IEC C19 locking (16A) |
| SecureLock Support | Yes |
| Remote Outlet Switching | No |
| Overload Protection | (6) LEGBX66-20, 5kAIC |
| Metering | Voltage, Current, Active/Real Power, Apparent Power, Energy, Power Factor |
| Metering per Component | Per input line, per breaker, per outlet |
| Metering Accuracy | ±1% (various parameters) |
| Environmental Sensor Ports | Yes (temp, humidity, airflow, differential pressure, water leak, contact closure) |
| Networking | Gigabit Ethernet + redundant 10/100 Ethernet; optional Wi-Fi (802.11 a/b/g/n) |
| Remote Management | HTTP(s), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC, Modbus TCP |
| Cascading | Up to 32 PDUs via USB; 32 via Ethernet |
| Onboard Display | Color matrix LCD with power metrics & alarms |
| Processor | ARM Cortex A5 536MHz, 16MB SPI Flash, 64MB DDR2 RAM |
| Dimensions (WxDxH) | 17.3" × 11.5" × 3.5" (440mm × 293mm × 88mm) |
| Unit Weight | 10.9 kg |
| Shipping Weight | 14.7 kg |
| Mounting | RACK-KIT-PX-2U |
| Operating Temperature | Up to 60°C |
| Humidity | Up to 85% RH |
| Regulatory | UL Listed, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
