Description

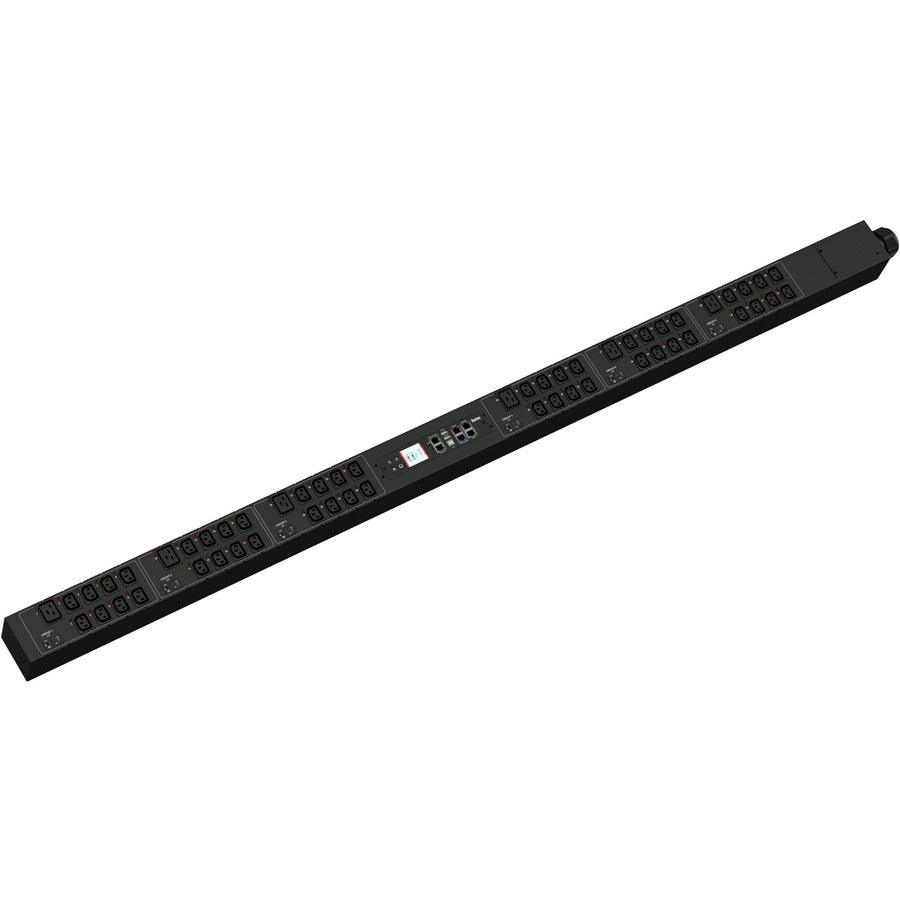

The Raritan PX3-5214I2U-V2 is a premium intelligent rack PDU engineered for high-density data centers requiring precise power monitoring and remote outlet control. Designed for 415V three-phase environments, it delivers up to 28.8kVA of capacity and supports comprehensive metering at the input, branch circuit, and individual outlet levels.
With 48 C13 and 6 C19 outlets, remote switching, SecureLock support, and robust environmental sensor capability, this PDU offers reliable, scalable, and secure power distribution. Its replaceable controller, redundant network ports, and color LCD interface ensure superior manageability and uptime across mission-critical deployments.
| Category | Specification | Details |
|---|---|---|
| Electrical – Input | Input Plug | IEC 60309 3P+N+E 60A 6h, IP67 |
| Nominal Input Voltage | 415V 3Φ Wye | |
| Rated Input Voltage | 380–415V 3Φ | |
| Maximum Input Current | 60A | |
| Input Frequency | 50/60Hz | |
| Power Capacity | 26.3kVA @ 380V; 28.8kVA @ 415V | |
| Cord Length | 3m (9.84 ft) | |
| Cord Entry | Top feed | |
| Cable Type | SOOW 5C#6 | |
| Electrical – Output | Nominal Output Voltage | 230V |
| Rated Output Voltage | 220–240V | |
| Outlets | 48 × IEC C13 (12A), 6 × IEC C19 (16A) | |
| SecureLock Support | Yes | |
| Cord Retention | Yes | |
| Overload Protection | (6) Airpax LELBX1-20 breakers | |
| Monitoring & Intelligence | Metering Capabilities | Voltage, Current, Active Power, Apparent Power, Energy, Power Factor |
| Metering Accuracy | ±1% (ISO/IEC 62053-21) | |
| Metering Levels | Input line, branch circuit, outlet | |
| Remote Outlet Switching | Yes | |
| Environmental Sensors | Temperature, Humidity, Airflow, Differential Pressure, Water Leak, Contact Closure | |
| Embedded Processor | ARM Cortex A5 536MHz; 16MB Flash; 64MB DDR2 RAM | |
| Display | Color LCD (auto-orienting) | |
| Networking & Management | Ethernet Ports | Dual Gigabit (10/100/1000Base-T) |
| WiFi Option | 802.11 a/b/g/n | |
| Management Protocols | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Modbus TCP, SMTP, Power IQ | |
| Cascading | Up to 32 PDUs via USB + 32 via Ethernet | |
| Physical | Dimensions (W × D × H) | 3.5" × 3.1" × 70.1" (89 × 80 × 1780 mm) |
| Unit Weight | 13.7 kg | |
| Shipping Weight | 16.4 kg | |
| Shipping Dimensions | 12.99" × 5.51" × 80.2" (330 × 140 × 2037 mm) | |
| Mounting | Tool-less button mount | |
| Color | Black powder coat | |
| Environmental | Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% | |
| Operating Elevation | 0–6000 ft | |
| Compliance & Warranty | Regulatory Approvals | UL Listed, ICES-003, FCC Part 15 Class A, RoHS |
| Warranty | 2-year manufacturer warranty |
