Description

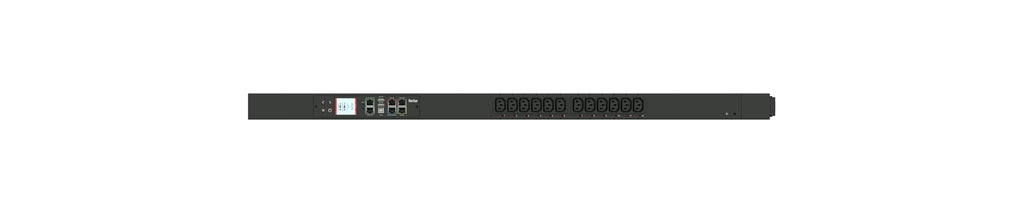

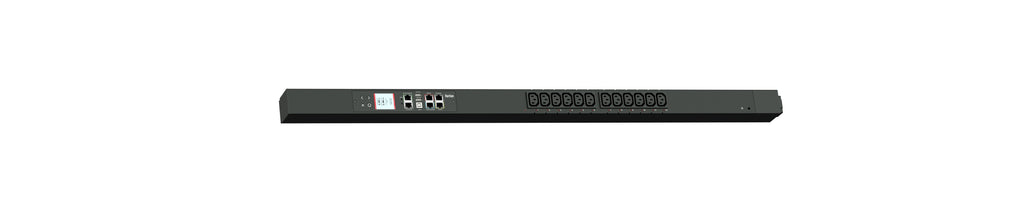

The Raritan PX3-5260V is an intelligent rack PDU designed for high-precision energy management and reliable power distribution in modern data centers and IT environments. It delivers advanced outlet-level metering, remote switching, and comprehensive environmental monitoring support to ensure optimal uptime and efficient power usage.
Built with a durable vertical form factor, the PX3-5260V includes twelve IEC C13 outlets, a 230V input, and robust networking capabilities with dual Gigabit Ethernet ports and optional Wi-Fi. Its integrated color LCD display provides real-time power insights, while the replaceable controller and support for a wide range of sensors make it a future-ready power solution for demanding rack deployments.
| Category | Details |
|---|---|
| Model | PX3-5260V |
| Input Plug | IEC 60309 2P+E 16A, IP44 |
| Input Voltage | 200–240V AC (230V nominal) |
| Input Current | 16A |
| Power Capacity | 3.2kVA at 200V / 3.8kVA at 240V |
| Frequency | 50/60Hz |
| Cord Length | 3 m (bottom-feed) |
| Output Receptacles | (12) IEC C13, 10A each |
| SecureLock Support | Yes |
| Outlet Switching | Remote, per-outlet |
| Metering | Input level & per-outlet metering |
| Metering Accuracy | ±1% for V, A, kW, kVA, kWh, PF |
| Networking | Dual Gigabit Ethernet (10/100/1000); optional Wi-Fi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, Modbus TCP, JSON-RPC, RS-232 |
| Cascading | Up to 32 PDUs via USB or Ethernet |
| Display | Color LCD, auto-flip orientation |
| Dimensions (W x D x H) | 52 × 65 × 1044 mm (2.1" × 2.6" × 41.1") |
| Unit Weight | 2.4 kg |
| Operating Temperature | Up to 60°C |
| Humidity | 0–85% RH |
| Certifications | CE, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
