Description

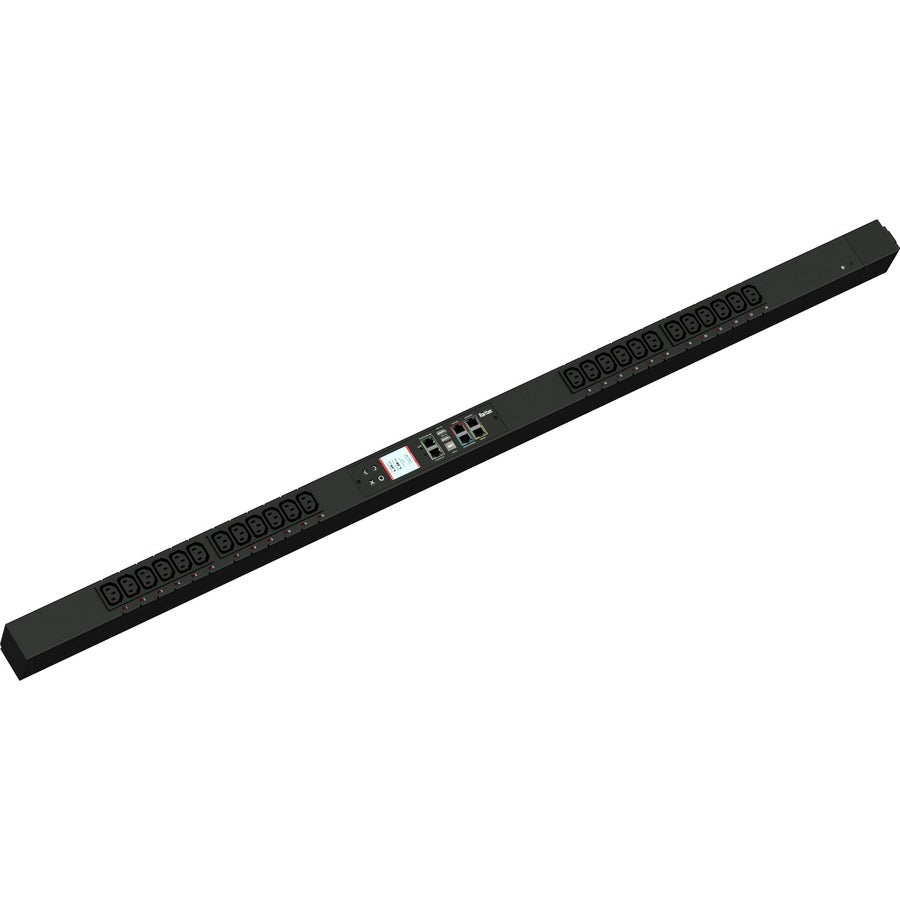

The Raritan PX3-5476V is an intelligent 120V rack PDU designed for high-accuracy energy monitoring, secure remote outlet control, and reliable power distribution in demanding IT environments. Equipped with 24 IEC C13 outlets, per-outlet metering, and remote switching, it enables granular power management for servers, storage, and network equipment.
This model supports advanced environmental monitoring with optional sensors, includes dual Ethernet ports for redundant networking, and features an auto-rotating color LCD for at-a-glance local visibility. With robust construction, accurate ISO/IEC-certified metering, and compatibility with Power IQ and standard management protocols, the PX3-5476V delivers enterprise-grade efficiency, automation, and uptime protection for modern data centers.
| Category | Specification |
|---|---|
| Model | Raritan PX3-5476V |
| Input Plug Type | NEMA L5-20P (2P3W), IP44 |
| Input Voltage | 100–120V AC (120V nominal) |
| Maximum Input Current | 20A |
| Power Capacity | 1.6kVA at 100V / 1.9kVA at 120V |
| Cord Length | 3m (9.84 ft), bottom entry |
| Cable Type | VCT 3G3.5 |
| Number of Power Cords | 1 |
| Output Receptacles | (24) IEC C13, 12A |
| Output Voltage | 100–120V AC |
| Outlet Metering | Yes — per outlet |
| Outlet Switching | Yes — remote switching supported |
| SecureLock & Cord Retention | Yes |
| Controller | Replaceable |
| Environmental Sensor Support | Temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Networking | Dual Gigabit Ethernet (primary & secondary), optional Wi-Fi |
| Remote Management | HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, Power IQ, SMTP, JSON-RPC, Modbus TCP |
| Cascading Support | Up to 32 PDUs (USB) + 32 PDUs (Ethernet) |
| Onboard Display | Color LCD: voltage, current, power, alarms, configuration; auto-flip orientation |
| Dimensions (WxDxH) | 2.1" × 2.6" × 51.1" (52 × 65 × 1298 mm) |
| Unit Weight | 4.6 kg |
| Shipping Weight | 6.6 kg |
| Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% RH |
| Regulatory Compliance | UL Listed, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
