Description

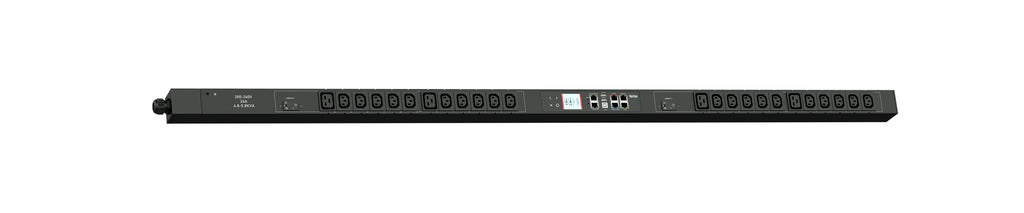

The Raritan PX3-5497V-E2 is an advanced intelligent rack PDU designed for high-density IT environments requiring precise energy metering, secure outlet control, and reliable power distribution. This vertical 60.6-inch PDU features twenty C13 locking outlets and four C19 locking outlets, all backed by per-outlet metering and remote switching for complete visibility and control.
Engineered for mission-critical applications, it supports gigabit networking, redundant Ethernet, environmental sensor integration, and cascading for large-scale deployments. Its replaceable controller, color LCD display, and industry-leading measurement accuracy make it a powerful and scalable solution for data centers, enterprise networks, and edge deployments.
| Category | Specification |
|---|---|
| Model | PX3-5497V-E2 |
| Input Plug | NEMA L6-30P (2P3W), IP44 |
| Input Voltage | 200–240V (Nominal 208V) |
| Input Frequency | 50/60Hz |
| Maximum Input Current | 30A |
| Power Capacity | 4.8kVA @ 200V, 5.8kVA @ 240V |
| Cord Length | 3m (9.84 ft), bottom entry |
| Outputs | (20) IEC C13 Locking 12A; (4) IEC C19 Locking 16A |
| SecureLock Support | Yes |
| Overload Protection | (2) LEGBXA66-20 breakers, 5kAIC |
| Metering | Per input line, per breaker, per outlet |
| Metering Accuracy | ±1% for current, voltage, active power, apparent power, energy |
| Remote Switching | Yes (per outlet) |
| Environmental Sensors | Temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Networking | Dual Gigabit Ethernet (primary + redundant), optional WiFi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC, Modbus/TCP |
| Cascading Support | Up to 32 PDUs via USB + 32 via Ethernet |
| Display | Color LCD with auto-flip orientation |
| Processor | ARM Cortex A5 536MHz, 16MB SPI Flash, 64MB DDR2 RAM |
| Dimensions (WxDxH) | 2.1" × 2.8" × 60.6" (52mm × 71mm × 1539mm) |
| Unit Weight | 6.2 kg |
| Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% |
| Regulatory | UL Listed, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-Year Manufacturer Warranty |
