Description

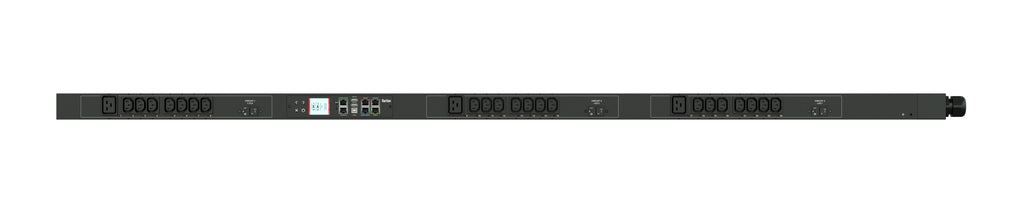

The Raritan PX3-5522V is a high-performance intelligent rack PDU designed for modern data centers that require precise energy management, secure access, and maximum uptime. With 24 outlets, advanced metering, remote switching, and robust environmental sensor support, it provides full visibility and control over your power distribution at the rack level.
Engineered for demanding IT environments, the PX3-5522V delivers 3-phase 208V power, industry-leading metering accuracy, configurable alarms, and redundant networking options for continuous availability. Its color LCD, replaceable controller, outlet-level monitoring, and compatibility with Power IQ® software make it ideal for enterprise deployments requiring reliable, scalable power management.
Built with Raritan’s Xerus™ technology platform, this intelligent PDU ensures secure remote management via HTTPS, SSH, SNMP v2/v3, and more—all while supporting advanced environmental monitoring for optimal rack conditions.
| Category | Specification |
|---|---|
| Model | Raritan PX3-5522V |
| Input Plug | NEMA L21-30P, 4P5W, IP44 |
| Input Voltage | 208V 3-Phase (Rated 190–208V) |
| Maximum Input Current | 30A |
| Input Frequency | 50/60Hz |
| Power Capacity | 8.6 kVA at 208V (7.9 kVA at 190V) |
| Output Voltage | 208V nominal (190–208V rated) |
| Outlets | (21) IEC C13 12A, (3) IEC C19 16A |
| Outlet Features | Remote switching, SecureLock support, cord retention |
| Overload Protection | (3) LEGBXA66-20 breakers, 5kAIC |
| Metering Capabilities | Input line, branch circuit, and per-outlet metering; ±1% accuracy |
| Environmental Sensor Support | Temperature, humidity, air flow, differential pressure, water leak, contact closure sensors |
| Networking | Dual Gigabit Ethernet (primary + redundant), optional Wi-Fi (802.11 a/b/g/n) |
| Remote Management | HTTP/HTTPS, SSH, Telnet, Serial, Power IQ, SNMP v2/v3, JSON-RPC, Modbus TCP |
| Cascading Support | Up to 32 PDUs via USB; 32 via Ethernet |
| Display | Color matrix LCD (auto-flip); shows voltage, current, power, alarms, configuration |
| Dimensions (WxDxH) | 2.1" × 2.6" × 70.1" (52mm × 65mm × 1780mm) |
| Unit Weight | 6.4 kg (Shipping: 9 kg) |
| Operating Temperature | Up to 60°C |
| Regulatory Compliance | UL Listed, FCC Part 15 Class A, Canada ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
