Description

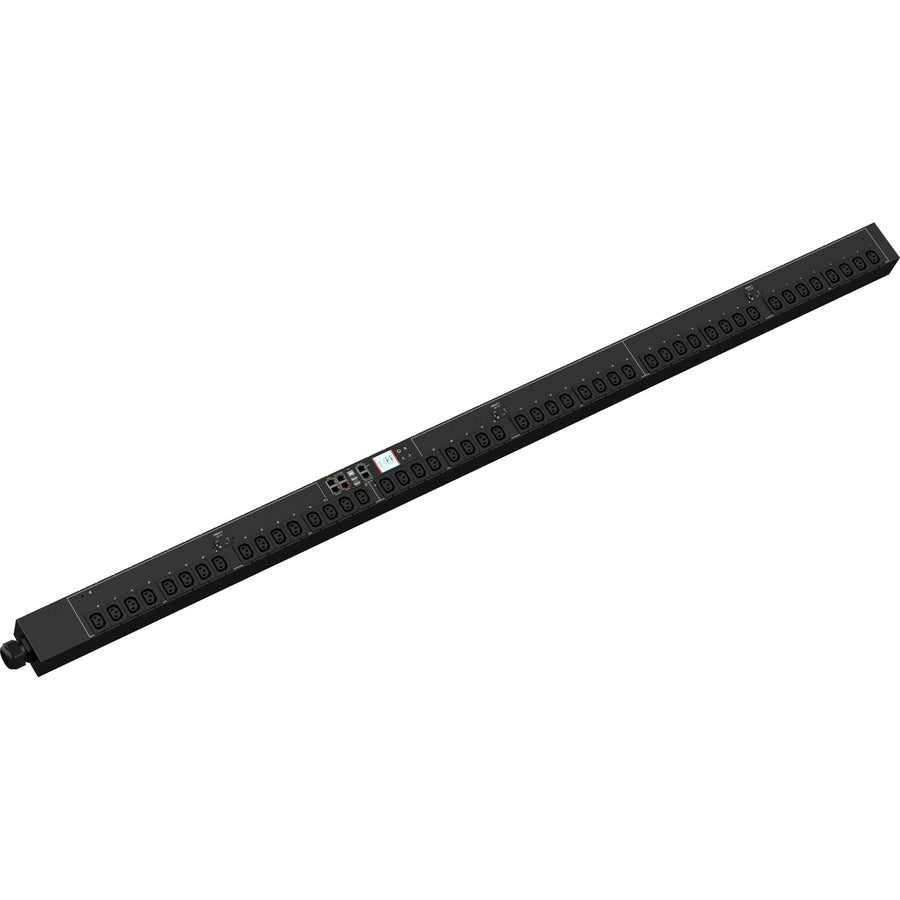

The Raritan PX3-5776U-N2 is a high-density, intelligent rack PDU engineered for modern data centers requiring precise power monitoring, secure power control, and maximum outlet capacity. This unit delivers 208V three-phase power, supports 48 IEC C13 outlets, and provides full inlet, branch, and outlet-level metering for accurate energy usage insight.
Designed for reliability and operational efficiency, it includes remote outlet switching, advanced environmental sensor support, and multiple network management protocols such as HTTPS, SNMP, SSH, and Modbus TCP. Its integrated color LCD display offers real-time power data and device status with auto-flip orientation for easy viewing in any rack position.
With tool-less mounting, secure outlet retention, cascading capability for up to 64 PDUs, and robust electrical protection, the PX3-5776U-N2 is an ideal solution for enterprise IT racks, colocation facilities, and mission-critical power environments.
| Category | Details |
|---|---|
| Model | PX3-5776U-N2 |
| Input Plug | CS8365C (3P4W), 208V 3Φ |
| Input Current Max | 50A |
| Power Capacity | 12.6kVA @ 208V; 14.5kVA @ 240V |
| Input Frequency | 50/60Hz |
| Cord Length | 3 m (9.84 ft), top-end feed |
| Output Receptacles | 48 × IEC C13 (12A each), SecureLock supported |
| Output Voltage | 208–240V |
| Overload Protection | (3) LEGBXA66-20 breakers |
| Metering | Inlet, branch circuit, and per-outlet metering (V, A, kW, kVA, kWh, PF) |
| Metering Accuracy | ±1% per ISO/IEC 62053-21 |
| Remote Switching | Yes, per-outlet |
| Environmental Sensor Support | Temp, humidity, airflow, differential pressure, water leak, contact closure |
| Networking | Gigabit Ethernet + secondary 10/100 Ethernet; optional WiFi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC, Modbus TCP |
| Cascading | Up to 32 PDUs via USB + 32 via Ethernet |
| Onboard Display | Color LCD with auto-flip orientation |
| Dimensions (WxDxH) | 3.5" × 2.6" × 74.5" (89 × 65 × 1892 mm) |
| Unit Weight | 11.5 kg |
| Operating Temp | Up to 60°C |
| Regulatory | UL Listed, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
