Description

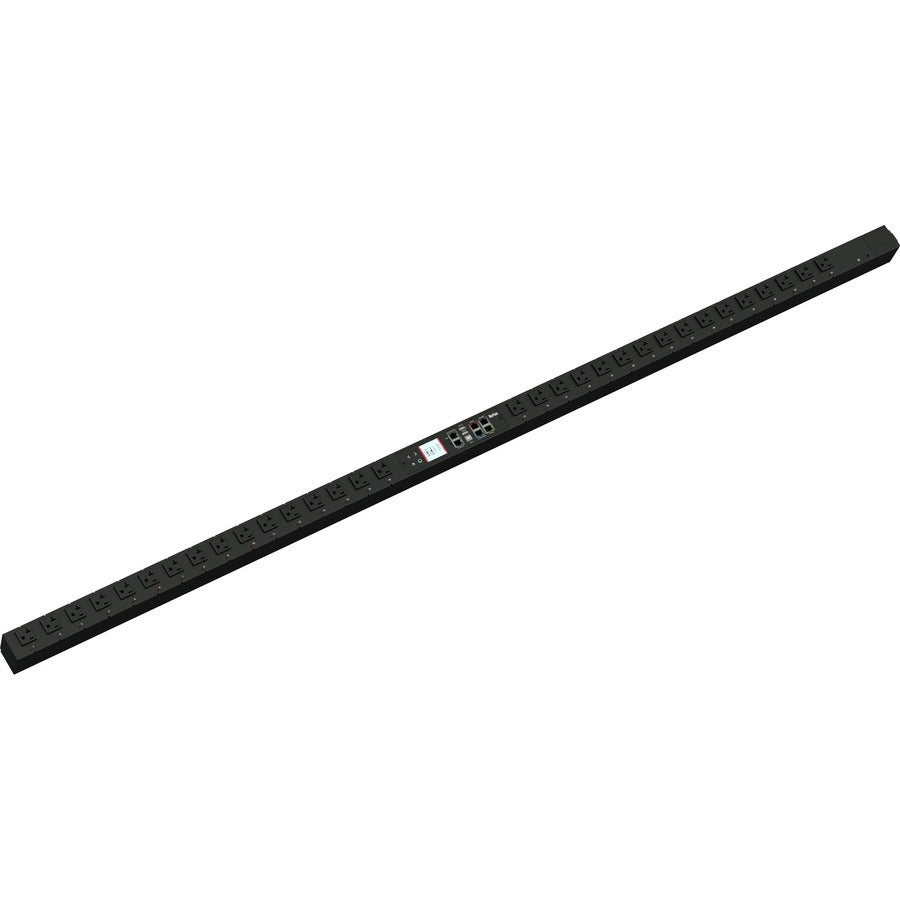

The Raritan PX3-5924V-N1 is a high-density, intelligent rack PDU designed for advanced power monitoring, remote outlet control, and reliable distribution in mission-critical IT environments. Equipped with 32 individually metered and switchable NEMA 5-20R outlets, this unit delivers precise power analytics down to the outlet level, enabling efficient capacity planning and proactive issue detection.
With support for redundant Gigabit Ethernet, optional Wi-Fi, environmental sensor integration, and a bright color LCD display, the PX3-5924V-N1 provides powerful visibility and control for data centers, labs, and enterprise IT rooms. A rugged vertical form factor ensures maximum outlet availability while maintaining a compact footprint.
| Category | Details |
|---|---|
| SKU | PX3-5924V-N1 |
| Input Plug | NEMA L5-20P (2P3W), IP44 |
| Input Voltage | 100–120V AC |
| Maximum Input Current | 20A |
| Power Capacity | 1.6 kVA at 100V / 1.9 kVA at 120V |
| Input Frequency | 50/60 Hz |
| Cord Length | 3 m (9.84 ft), bottom entry |
| Output Receptacles | (32) NEMA 5-20R |
| Outlet Metering | Yes (per-outlet monitoring) |
| Remote Switching | Yes (per-outlet switching) |
| Environmental Sensors | Temperature, Humidity, Airflow, Differential Pressure, Water Leak, Contact Closure |
| Networking | Dual 10/100/1000 Ethernet; Optional Wi-Fi |
| Remote Management | HTTP/HTTPS, SSH, Telnet, RS-232, SNMP v2/v3, Power IQ, Modbus/TCP, JSON-RPC |
| Cascading Support | Up to 32 PDUs via USB; 32 via Ethernet |
| Display | Color matrix LCD with auto-flip orientation |
| Processor | ARM Cortex A5 536 MHz, 16MB SPI Flash, 64MB DDR2 RAM |
| Dimensions (WxDxH) | 2.1" × 2.6" × 73.1" (52 × 65 × 1856 mm) |
| Unit Weight | 12.5 kg |
| Regulatory | UL Listed, FCC Part 15 Class A, ICES-003, RoHS compliant |
| Operating Temperature | Up to 60°C |
| Warranty | 2-year manufacturer warranty |
