Description

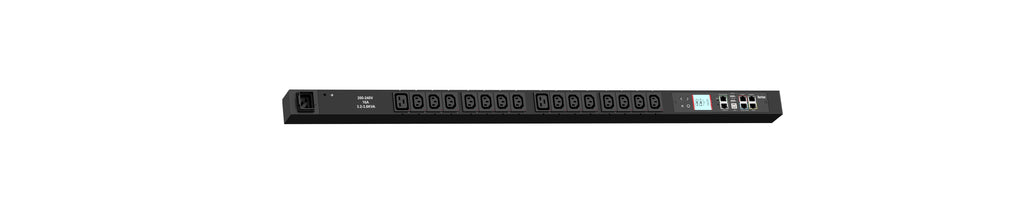

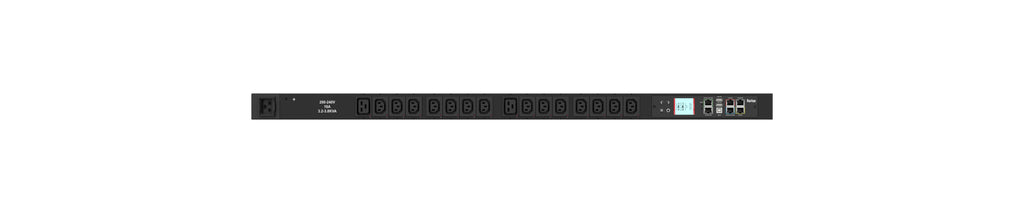

The Raritan PX3-5367V is a high-performance intelligent rack PDU engineered for data centers that require precise energy monitoring, secure outlet control, and robust operational reliability. Designed for 230V single-phase deployments, it provides outlet-level metering, remote switching, and comprehensive environmental sensor support. Equipped with dual Ethernet ports, optional Wi-Fi, and an auto-flipping LCD display, the PX3-5367V ensures seamless integration, clear local visibility, and streamlined power management. With a mix of C13 and C19 outlets, SecureLock compatibility, and advanced monitoring accuracy, it delivers dependable, safe, and scalable power distribution for mission-critical IT environments.
| Category | Details |
|---|---|
| Input | |
| Input Plug | IEC 60309 2P+E 16A (2P3W), IP44 |
| Input Voltage | 230V nominal (200–240V rated) |
| Input Current | 16A max |
| Frequency | 50/60Hz |
| Power Capacity | 3.2kVA at 200V, 3.8kVA at 240V |
| Cord Length | 3m (9.84 ft), bottom-feed entry |
| Cable Type | N-S LSOH 3G2.5 |
| Output | |
| Output Voltage | 230V nominal (200–240V rated) |
| Receptacles | (14) IEC C13 (10A), (2) IEC C19 (16A) |
| SecureLock Support | Yes |
| Cord Retention | Yes |
| Overload Protection | N/A |
| Metering & Control | |
| Metering Types | Voltage, Current, Active/Real Power, Energy, Power Factor |
| Metering Accuracy | ISO/IEC 62053-21 1% |
| Metering Levels | Input line metering; per-outlet metering |
| Remote Outlet Switching | Yes |
| Networking & Management | |
| Network Ports | Dual Gigabit Ethernet (10/100/1000) |
| Optional Wireless | WiFi 802.11a/b/g/n |
| Remote Management | HTTP/HTTPS, SSH, Telnet, RS-232, SNMP v2/v3, Power IQ, SMTP, JSON-RPC, Modbus/TCP |
| Cascading | Up to 32 PDUs via USB; 32 via Ethernet |
| Onboard Display | Color LCD with auto-flip orientation |
| Embedded Processor | ARM Cortex A5 536MHz, 16MB SPI Flash, 64MB DDR2 RAM |
| Physical | |
| Dimensions (WxDxH) | 2.1" × 2.6" × 41.1" (52 × 65 × 1044 mm) |
| Unit Weight | 2.25 kg |
| Shipping Weight | 4.55 kg |
| Mounting | G2-RACK-FOR-ZU |
| Color | Black powder coat |
| Environmental | |
| Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% RH |
| Operating Elevation | 0–6000 ft |
| Regulatory & Warranty | |
| Certifications | CE, ICES-003, FCC Class A, RoHS |
| Warranty | Standard 2-year manufacturer warranty |
