Description

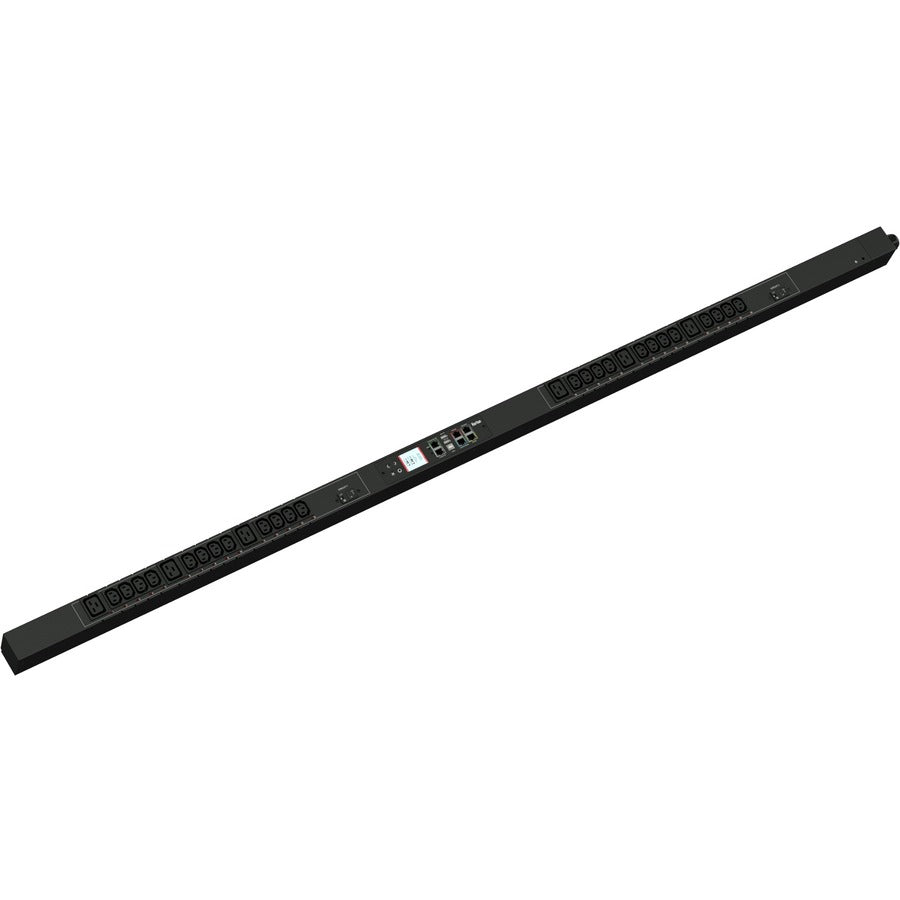

The Raritan PX3-5870V is a high-efficiency intelligent rack PDU engineered for data centers that require advanced power monitoring, remote outlet control, and exceptional reliability. Designed with enterprise-grade metering at the inlet, breaker, and individual outlet levels, it provides precise visibility into energy usage and helps prevent overloads before they occur.
This model delivers robust power distribution through a mix of IEC C13 and C19 outlets, supports SecureLock for cable retention, and features dual Gigabit Ethernet ports with optional WiFi for redundant connectivity. Its onboard color LCD makes it easy to view power readings and status information directly at the rack. With environmental sensor support, cascading capabilities, and a replaceable controller, the PX3-5870V ensures long-term scalability and operational uptime.
| Category | Specification |
|---|---|
| Input | |
| Input Plug | NEMA L6-30P (2P3W), IP44 |
| Cord Length | 3 m (9.84 ft) |
| Input Voltage | 200–240V AC (208V nominal) |
| Maximum Input Current | 30A |
| Frequency | 50/60Hz |
| Power Capacity | 4.8 kVA at 200V / 5.8 kVA at 240V |
| Output | |
| Output Voltage | 200–240V AC (208V nominal) |
| Outlets | (24) IEC C13 (12A), (6) IEC C19 (16A) |
| SecureLock | Yes |
| Cord Retention | Yes |
| Overload Protection | (2) LEGBXA66-20 breakers |
| Metering & Control | |
| Metering | Voltage, Current, Active Power, Apparent Power, Energy, Power Factor |
| Metering Accuracy | ±1% |
| Metering Levels | Input line, branch circuit, and per-outlet |
| Remote Outlet Switching | Yes |
| Network & Management | |
| Network Ports | Dual Gigabit Ethernet (10/100/1000) |
| Optional Connectivity | WiFi (802.11a/b/g/n) |
| Remote Management | HTTP/HTTPS, SNMP v2/v3, SSH, Telnet, RS-232, Modbus TCP, Power IQ, JSON-RPC |
| Cascading | Up to 32 PDUs via USB + 32 via Ethernet |
| Physical | |
| Dimensions (WxDxH) | 2.1" × 2.6" × 70.1" (52 × 65 × 1780 mm) |
| Weight | 6.2 kg |
| Color | Black powder coat |
| Environmental | |
| Operating Temperature | Up to 60°C |
| Operating Humidity | Up to 85% RH |
| Elevation | 0–6000 ft |
| Compliance & Warranty | |
| Certifications | UL Listed, FCC Part 15 Class A, ICES-003, RoHS |
| Warranty | 2-year manufacturer warranty |
