Description

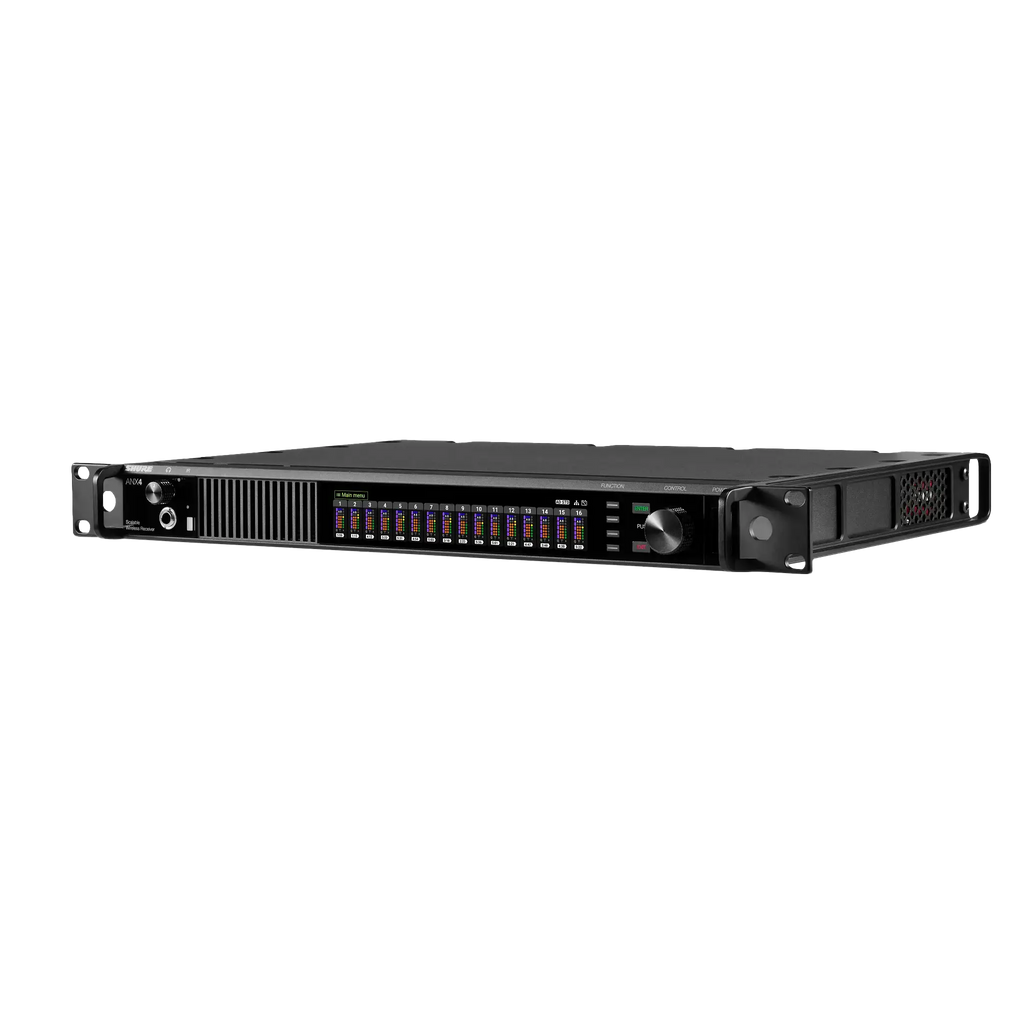

The Shure ANX4US-DC is a high-performance, scalable wireless receiver designed for professional AV, broadcast, and live production environments requiring maximum flexibility and reliability. Supporting both Axient Digital and ULX-D systems, this 1RU receiver delivers high channel density with the ability to scale up to 16 channels of Axient Digital or 24 channels of ULX-D through software-based licensing.
Engineered for mission-critical deployments, this DC version includes support for redundant power, ensuring continuous operation in demanding environments. The wide tuning range from 174 MHz to 2 GHz enables compatibility across multiple frequency bands, making it ideal for global and complex RF setups.
With advanced networking capabilities, Dante/AES67 digital audio output, and seamless integration with Shure Wireless Workbench, the ANX4US-DC provides full control, monitoring, and optimization of RF performance. Its streamlined antenna architecture reduces system complexity while maintaining exceptional signal integrity.
Built-in IntelliMix-quality performance, low latency, and high dynamic range ensure pristine audio capture and transmission, making it the ultimate solution for scalable, enterprise-grade wireless systems.
| Specification | Details |
|---|---|
| Form Factor | 1RU Rackmount |
| Wireless Compatibility | Shure Axient Digital and ULX-D Systems |
| Channel Capacity | Up to 16 (Axient Digital) or 24 (ULX-D) with licenses |
| Licensing | Single- and four-channel licenses available separately |
| Frequency Range | 174 MHz to 2000 MHz |

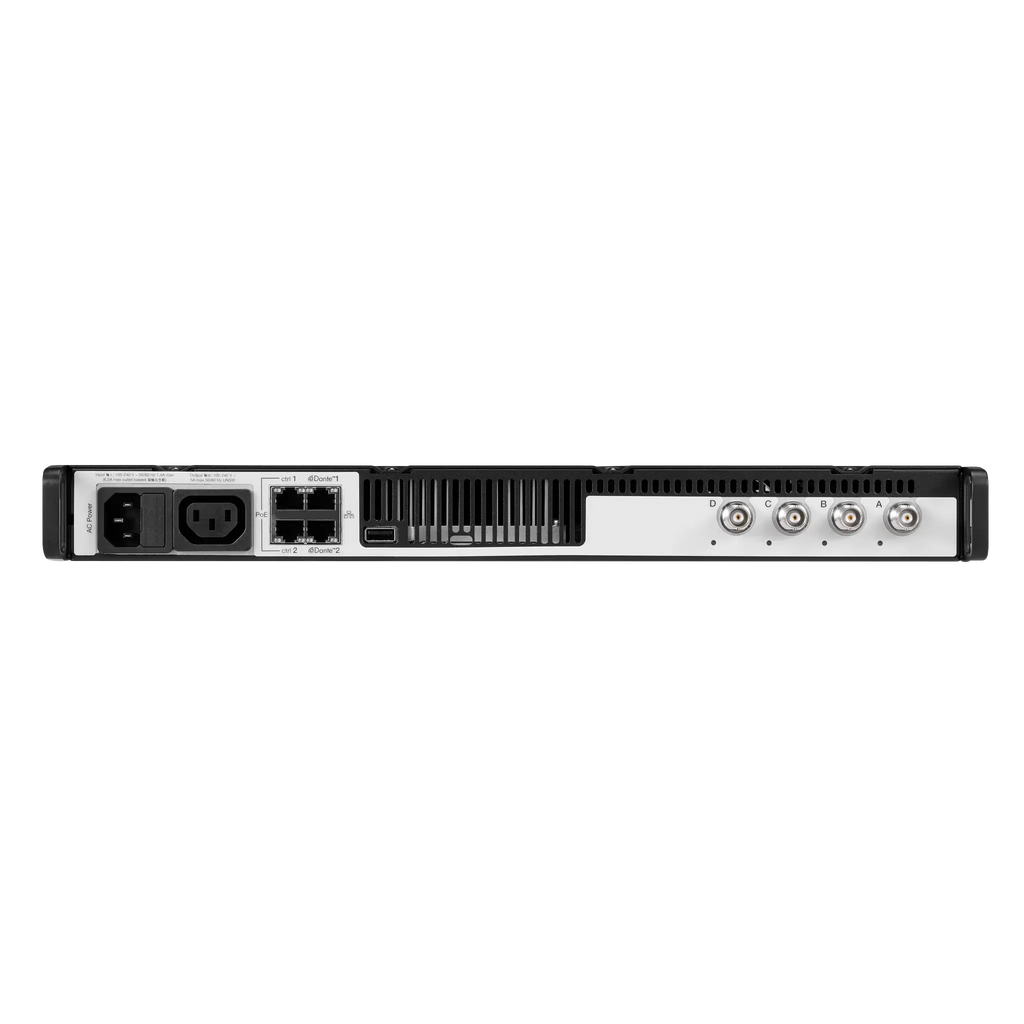

| RF Input Connectors | 4 x BNC |
| RF Impedance | 50 Ohms |
| RF Gain Adjustment | -18 to +42 dB (1 dB steps) |
| RF Sensitivity | ULX-D: -95 dBm, Axient Digital: -93.5 dBm |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | 124 dB (A-weighted) |
| Total Harmonic Distortion | < 0.1% |
| Latency | As low as 2.1 ms (Axient Digital Standard) |
| Networking | 4 x Ethernet (Dante/AES67, control, monitoring) |
| Network Speed | 10/100 Mbps, 1 Gbps |
| Control Software | Shure Wireless Workbench |

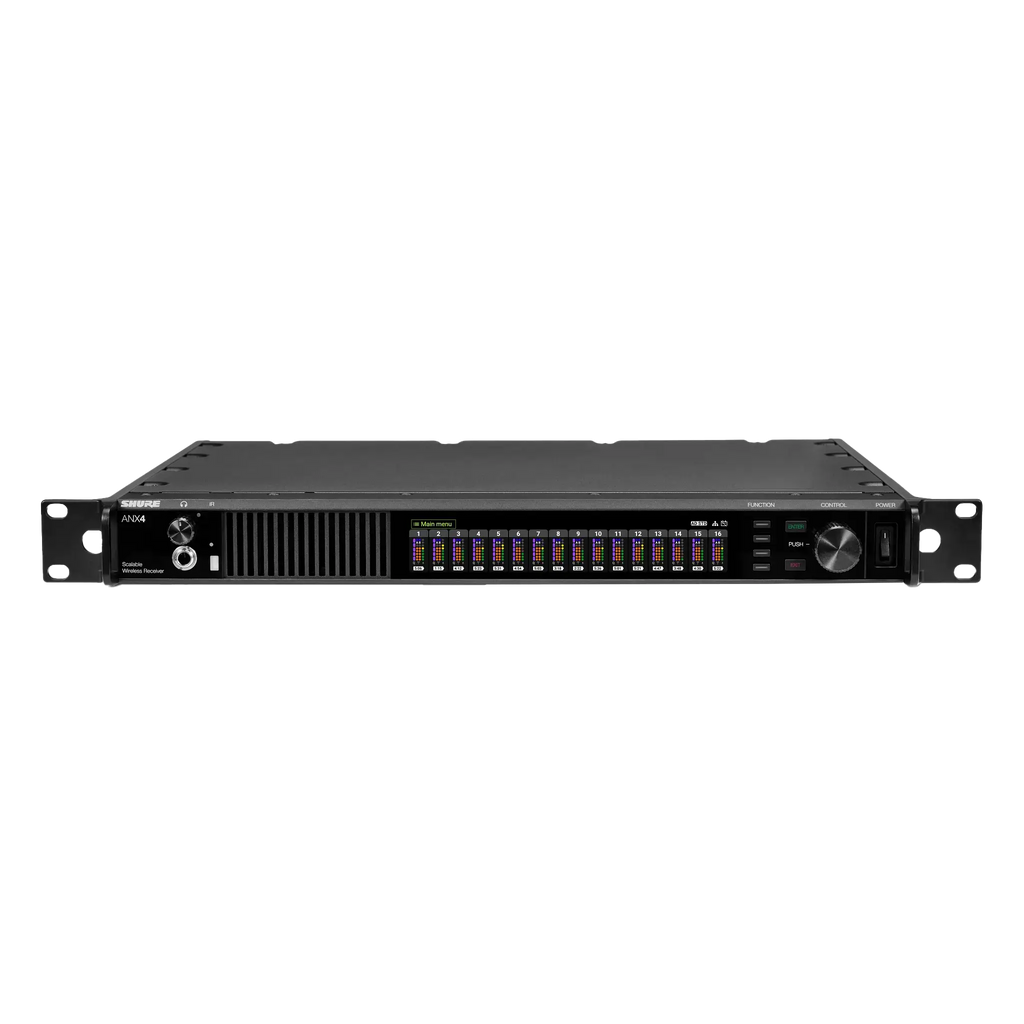

| Display | 6.6-inch Color Front Panel Display |
| Headphone Output | 1/4-inch (6.3 mm) Stereo |
| Antenna Bias | 12 to 13.5 V DC (switchable) |
| Power Supply | AC: 100–240V / DC: 11.3–16V (redundant capable) |
| Power Consumption | Max 61.3 W |
| Dimensions | 1.7 x 19.0 x 11.3 in |
| Weight | 8.6 lb (3.9 kg) |
| Operating Temperature | -18°C to 50°C |
| Construction | Steel chassis with aluminum top |
| Redundant Power Support | Yes (DC module version) |
