Description

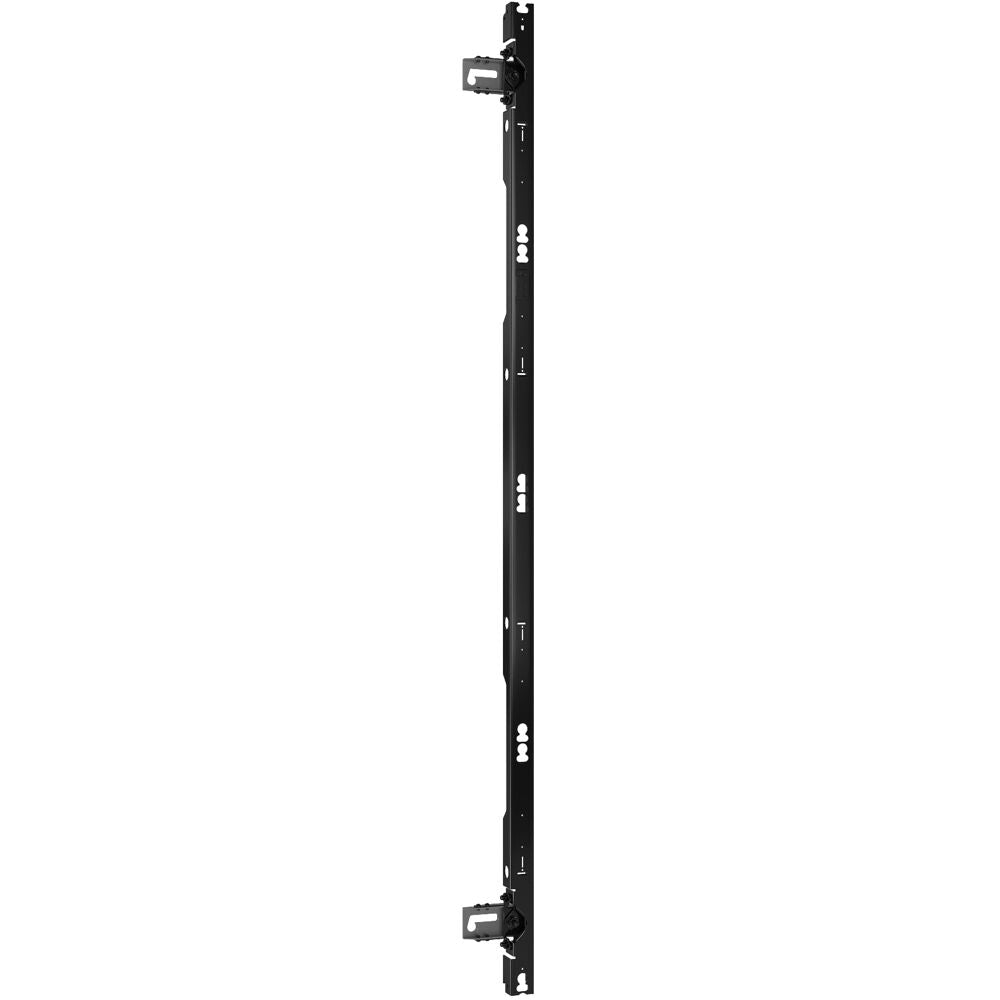

The Chief TiLED™ Right dvLED Wall Mount (TILD1X5SO1-R) is a modular, precision-engineered mounting solution designed specifically for Sony Crystal LED C and B Series video wall installations that are five displays tall. As part of the TiLED™ direct-view LED system, this right-side structural component integrates seamlessly with left and middle modules to create clean, scalable video wall configurations.
Built for professional AV environments, the system provides essential X-, Y-, and Z-axis micro-adjustments to ensure perfect cabinet alignment, consistent spacing, and a flawlessly flat finished surface—even on imperfect walls. Offset mounting slots protect LED cabinet edges during installation while simplifying placement and alignment.
TiLED™ dvLED mounting solutions are standard, off-the-shelf products that are stockable and ready to ship, eliminating custom lead times or project registration requirements. Designed for fast specification and installation, this mount helps bring creative video wall concepts to life with speed, accuracy, and reliability.
Compatible Sony Crystal LED models include ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A.
| Specification | Details |
|---|---|
| Product Type | Right-Side dvLED Wall Mount |
| Supported Display Technology | Direct-View LED Video Walls |
| Compatible Display Series | Sony Crystal LED C and B Series |
| Compatible Display Models | ZRD-C12A, ZRD-C15A, ZRD-B12A, ZRD-B15A |
| Number of Displays Supported | 5 displays tall |
| Orientation | Landscape |
| Application | Wall-Mounted |
| Adjustability | Fixed mount with lateral (X), vertical (Y), and plumb (Z) micro-adjustments |
| X-Axis Adjustment | Lateral shift for precise LED positioning |
| Y-Axis Adjustment | Vertical shift for cabinet-to-cabinet alignment |
| Z-Axis Adjustment | Plumb adjustment to compensate for wall imperfections |
| Plumb Adjustment Range | 0.75 in (19 mm) |
| Depth Range (with display) | 4.14 – 4.84 in (105 – 123 mm) |
| Weight Capacity | 25 lb (11.3 kg) per display |
| System Design | Modular right-side component for TiLED™ mounting systems |
| Included Components | Right-side mounting structure only |
| Required Accessories | Wall mounting structure, vertical connectors, and side covers sold separately |
| Special Features | LED video wall optimized, multi-display support |
| TAA Compliance | Not TAA compliant |
