Description

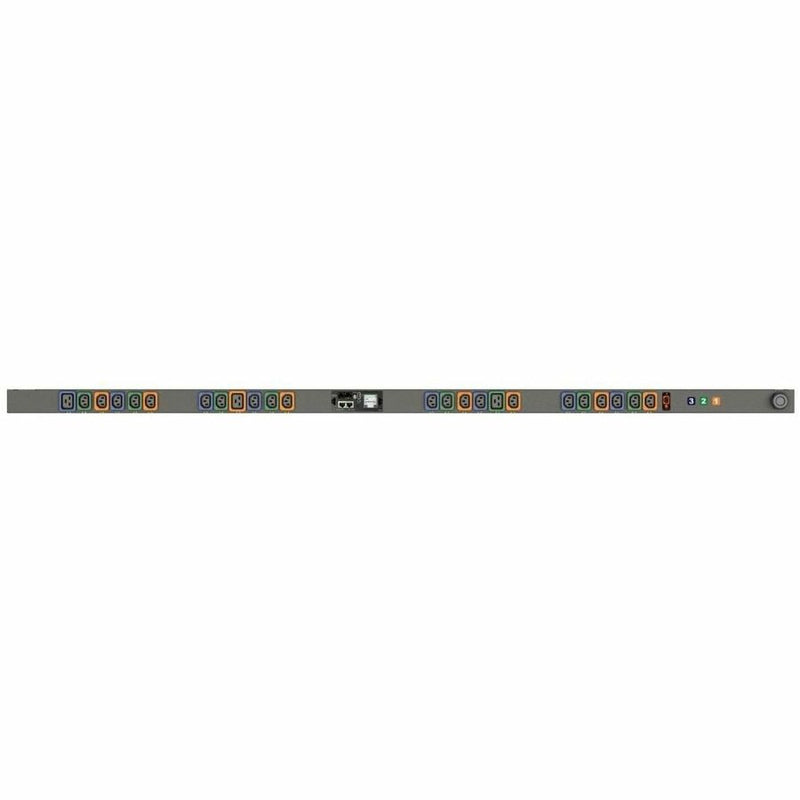

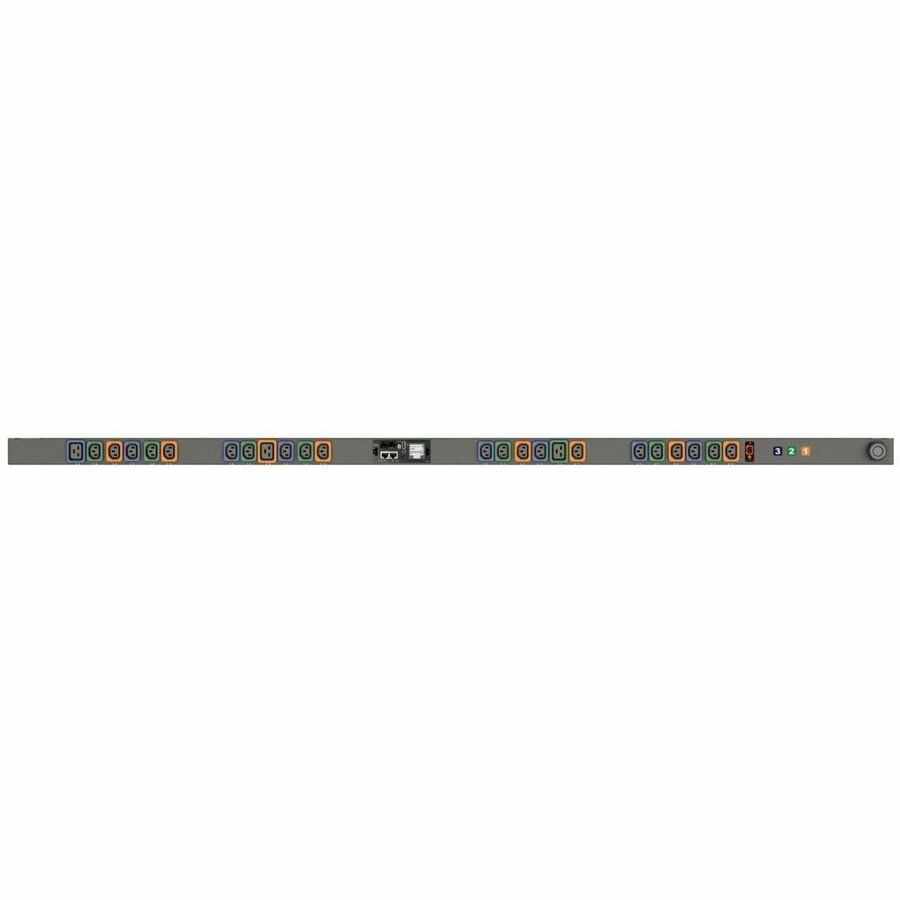

The Vertiv VP6N20A1 is a Monitored Outlet Level EC rPDU designed for reliable and intelligent power distribution in critical IT environments. This 66-inch vertical Zero U unit features 24 locking IEC outlets (21 C13, 3 C19), a 10ft power cord with L21-20P plug, and comprehensive power monitoring down to the outlet level. With daisy-chain Ethernet connectivity, dual gigabit ports, and support for up to 50 devices per IP address, it ensures streamlined management and scalability. Integrated environmental sensor support and a local display enhance infrastructure visibility and uptime assurance.
| Specification | Details |
|---|---|
| Model | VP6N20A1 |
| Type | Monitored Outlet Level EC rPDU |
| Input Voltage / Configuration | 120/208V, 3-Phase WYE |
| Current Rating | 20A |
| Load Capacity | 5.7kW |
| Receptacles | 21 × Locking IEC C13, 3 × Locking IEC C19 |
| Plug Type | NEMA L21-20P Twistlock |
| Power Cord Length | 10ft / 3m |
| Monitoring | Input, Outlet, Circuit/Breaker Monitoring |
| Display | Local high-visibility LCD with auto-orientation |
| Connectivity | Dual Ethernet (10/100/1000 Mbps), RS232 via RJ45 |
| Sensor Ports | 1 × RJ-type (Supports up to 16 sensors) |
| Mounting | Vertical (Zero U), Toolless Mount Kit Included |
| Chassis Dimensions | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Material / Finish | Heavy Steel, Black Powder Coat |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS Compliant |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, SSH, HTTPS, RADIUS, etc. |
| Operating Temperature | Up to 60°C / 140°F |
| Warranty | 5-Year (with registration), 3-Year (standard) |
| Country of Origin | USA, TAA and BAA COTS Compliant |
