Description

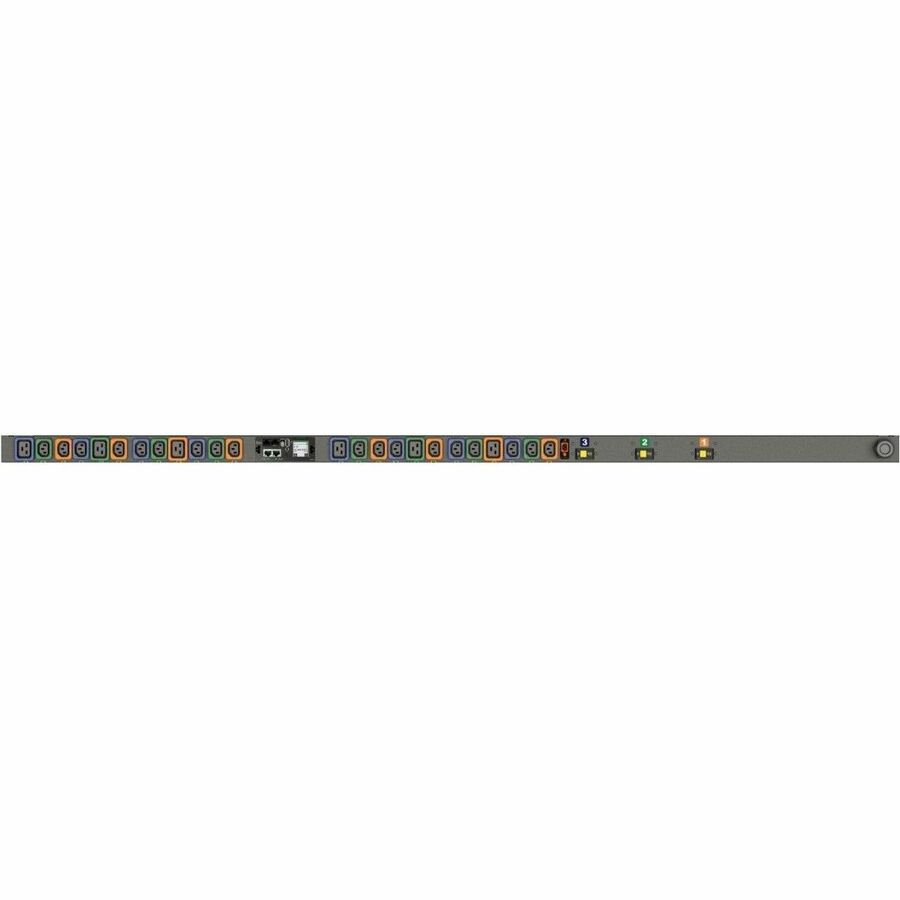

The Vertiv VP6N30A0 is a high-performance PowerIT rPDU™ designed to deliver robust and intelligent power distribution for critical IT environments. Offering outlet-level EC monitoring, it enables accurate power usage tracking (kWh, W, VA, PF, V, A) and remote network access. This vertical 66-inch rPDU supports 30A 3-phase WYE, features (18) locking IEC C13 and (6) locking IEC C19 receptacles, and integrates daisy chain Ethernet connectivity, optional environmental sensors, and a local LCD display for real-time power status.
With fault-tolerant architecture, magnetic breakers, and compliance with ANSI and IEC standards, the VP6N30A0 supports up to 50 devices per IP address, making it ideal for dense data center applications. Comes with a 10ft cord and L21-30P plug.
| Feature | Details |
|---|---|
| Model | VP6N30A0 |
| Input Voltage | 100-120/200-240V WYE |
| Max Current | 30A 3-Phase WYE |
| Power Capacity | 8.6kW (208V) |
| Receptacles | 18 × Locking IEC C13, 6 × Locking IEC C19 |
| Receptacle Voltage | 208V |
| Power Monitoring | Outlet Level EC (kWh, W, VA, PF, V, A); Breaker Monitoring |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet; Daisy Chain (50 devices/IP) |
| Plug Type | NEMA L21-30P (Twistlock) |
| Power Cord | 10ft / 3m, 10 AWG, Bottom Front Entry |
| Chassis Size | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Form Factor | Vertical (Zero U), 7938 Mounting Bracket Kit Included |
| Display | LCD Touchscreen, Auto-Oriented |
| Indicators | 24 LEDs |
| Environmental Monitoring | Optional Sensors (RJ connection, up to 16 supported) |
| Data Access Formats | CSV, JSON API, JSON Datalog |
| Other Interfaces | RS232 via RJ45, USB, IP Reset, Hard Reboot Button |
| Mounting Hardware | Toolless (61.25in / 64.75in spacing) |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 Years (if registered within 120 days), otherwise 3 Years |
| Finish / Color | Black Powder Coat |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Operating Temperature | Up to 60°C (140°F) |
| Weight | 22 lbs (9.98 kg) |
