Description

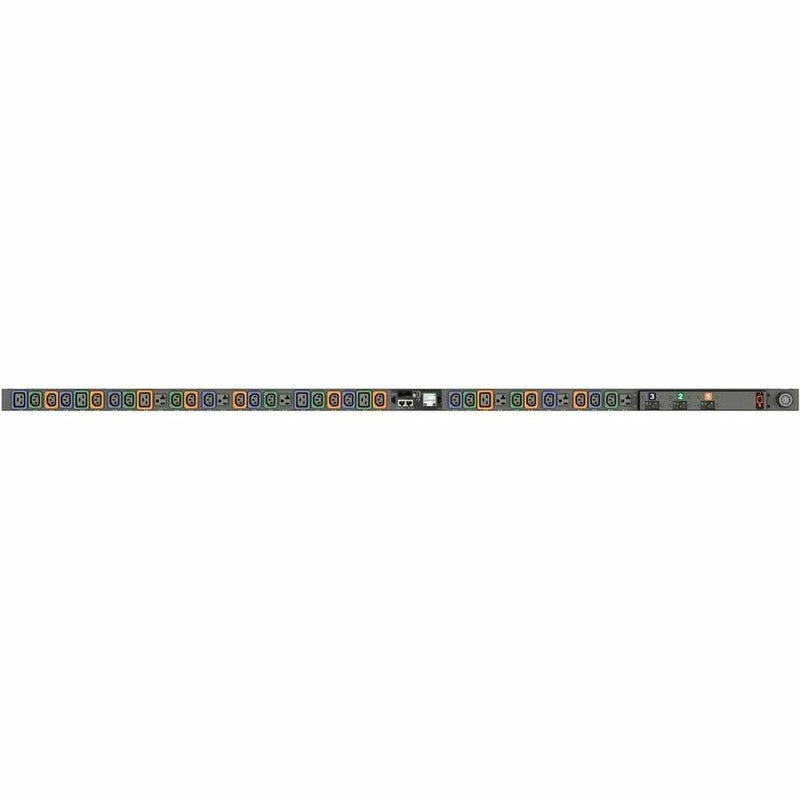

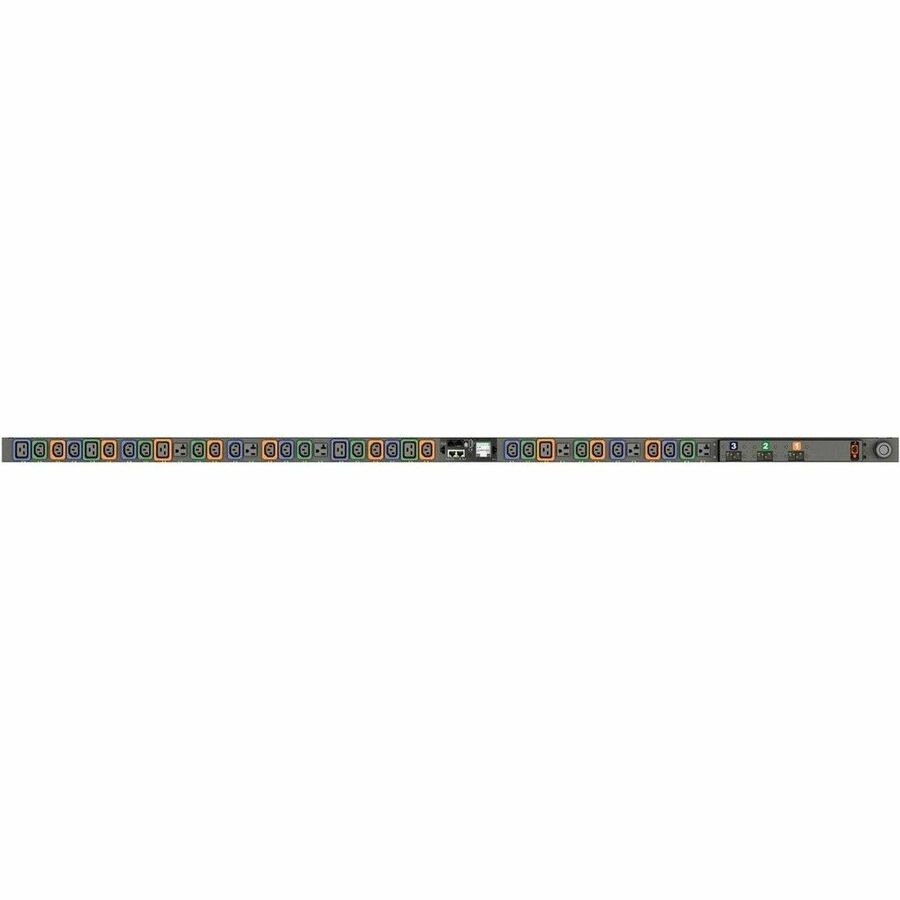

The Vertiv VP6N30A4 is a high-performance, outlet-level monitored rPDU that delivers 8.6kW of power with a 30A, 120/208V WYE configuration. Designed for critical IT environments, it features input, outlet, and circuit-level power monitoring, environmental sensor compatibility, and daisy-chain Ethernet connectivity. With 36 total outlets—including locking IEC C13, C19, and NEMA 5-20R—and a 10ft L21-30P power cord, this vertical, zero-U unit supports alternating phase output and is built for reliability, scalability, and operational insight.
| Specification | Details |
|---|---|
| Part Number | VP6N30A4 |
| Form Factor | Vertical, 0U |
| Power Rating | 30A, 120/208V WYE, 8.6kW |
| Input Plug | NEMA L21-30P, 10ft (3m) cord |
| Receptacles | (24) Locking IEC C13, (6) Locking IEC C19, (6) NEMA 5-20R |
| Monitoring | Input, Outlet, Circuit-level Monitoring |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet, Daisy Chain (up to 50 units) |
| Environmental Monitoring | Yes, via optional sensors (up to 16) |
| Display | Auto-orienting LCD touchscreen with LED indicators (36) |
| Power Measurement Standards | ANSI C12.1, IEC 62053-21 (1% Accuracy); Circuit at 2% Accuracy |
| Breaker Protection | (3) 20A Double Pole Magnetic Breakers (10kAIC) |
| Mounting | Toolless, Vertical Mount (61.25in/64.75in centers) |
| Chassis Color | Black Powder Coat |
| Operating Temperature | Max 60°C / 140°F |
| Dimensions (HxWxD) | 72in x 2in x 2.6in (1829mm x 51mm x 66mm) |
| Weight | 22 lbs (9.98 kg) |
| Compliance | UL/c-UL 62368-1, RoHS, FCC Class A, TAA, BAA |
| Warranty | 5 Years (if registered within 120 days), otherwise 3 Years |
