Description

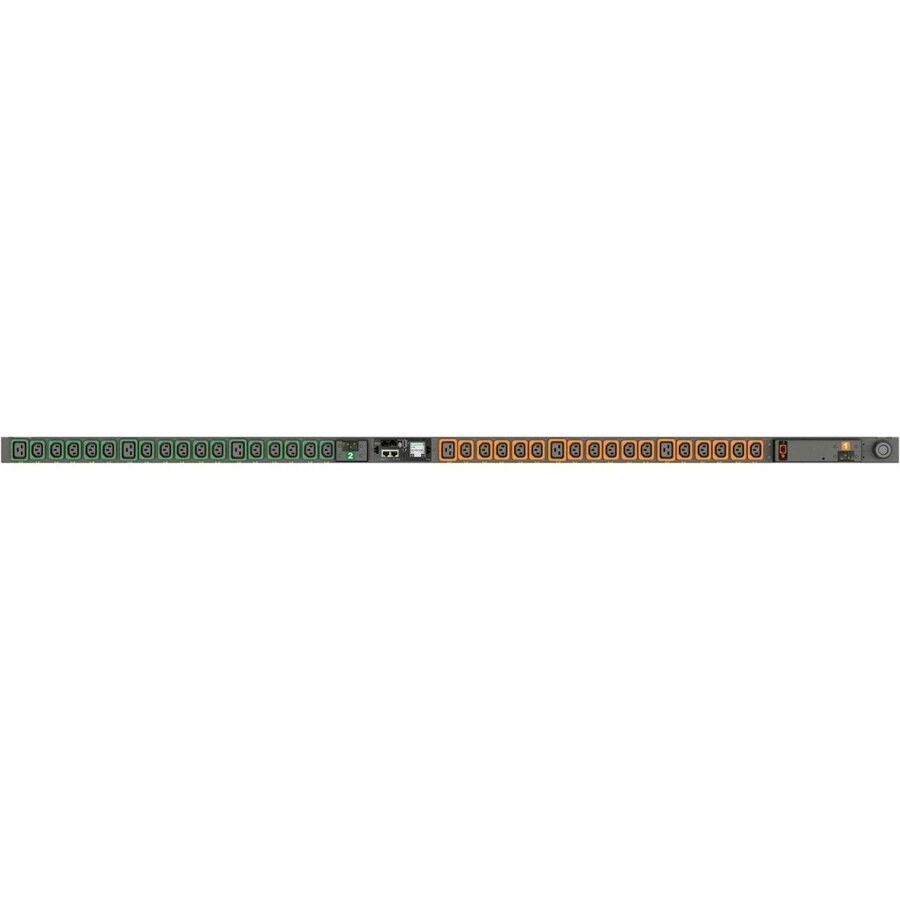

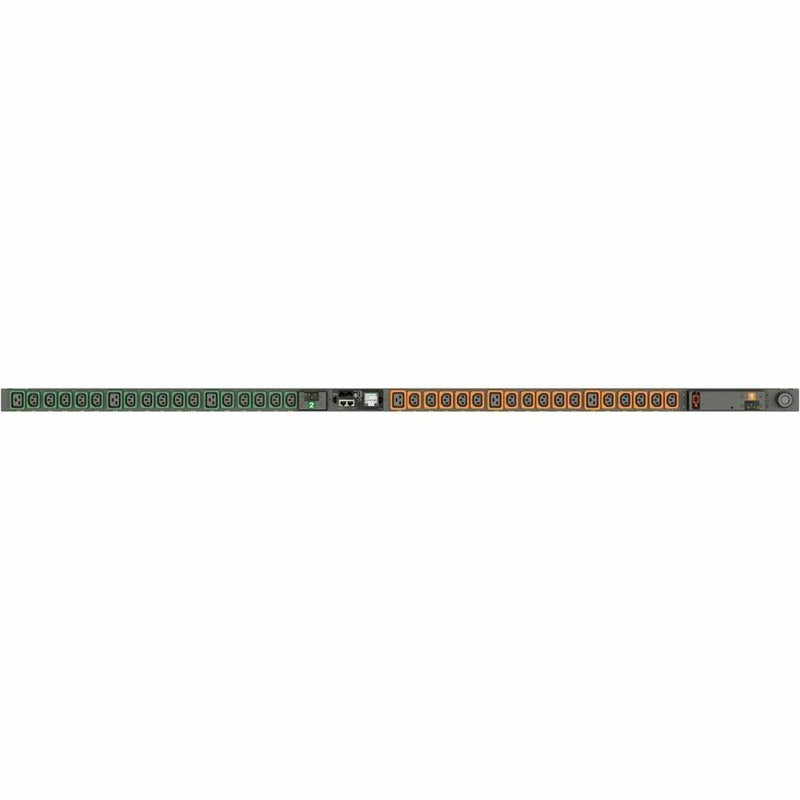

The Vertiv VP6N30AN is a high-performance Monitored Outlet Level EC rPDU delivering 30A, 208V, and 4.9kW of reliable power to critical IT equipment. Designed for vertical Zero U installation, this unit features 30 Locking IEC C13 and 6 Locking IEC C19 outlets, with input and outlet-level metering for comprehensive power monitoring. It supports daisy chaining for up to 50 devices and remote access via dual Ethernet ports. Integrated support for environmental sensors ensures proactive monitoring, helping prevent thermal risks and system downtime.
| Attribute | Details |
|---|---|
| Model Number | VP6N30AN |
| Input Voltage | 200–240V |
| Input Current | 30A |
| Power Capacity | 4.9kW (208V) |
| Frequency | 50/60Hz |
| Plug Type | NEMA L6-30P Twistlock |
| Outlets | 30x Locking IEC C13, 6x Locking IEC C19 |
| Mounting | Vertical, Zero U |
| Cord Length | 10ft (3m) |
| Monitoring | Input & Outlet Level (kWh, W, VA, PF, V, A) |
| Circuit Protection | (2) 20A Double Pole Magnetic Breakers |
| Network Connectivity | Dual Gigabit Ethernet, Daisy Chain |
| Protocols Supported | SNMP, HTTP/HTTPS, SSH, RADIUS, Modbus TCP, etc. |
| Sensor Support | Up to 16 via RJ jacks |
| Display | LCD Touchscreen with LED indicators |
| Chassis Dimensions | 70 x 2 x 2.6 in (1778 x 51 x 66 mm) |
| Weight | 20 lbs (9.07 kg) |
| Compliance | UL 62368-1, RoHS, FCC Part 15 Class A, TAA |
| Warranty | 5-Year Limited (with registration) |
