Description

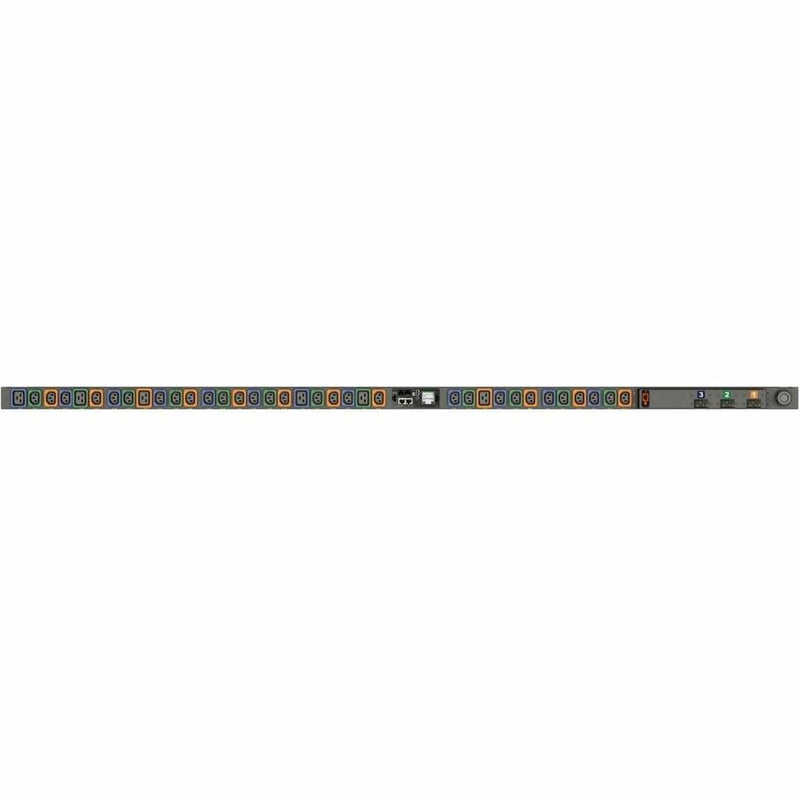

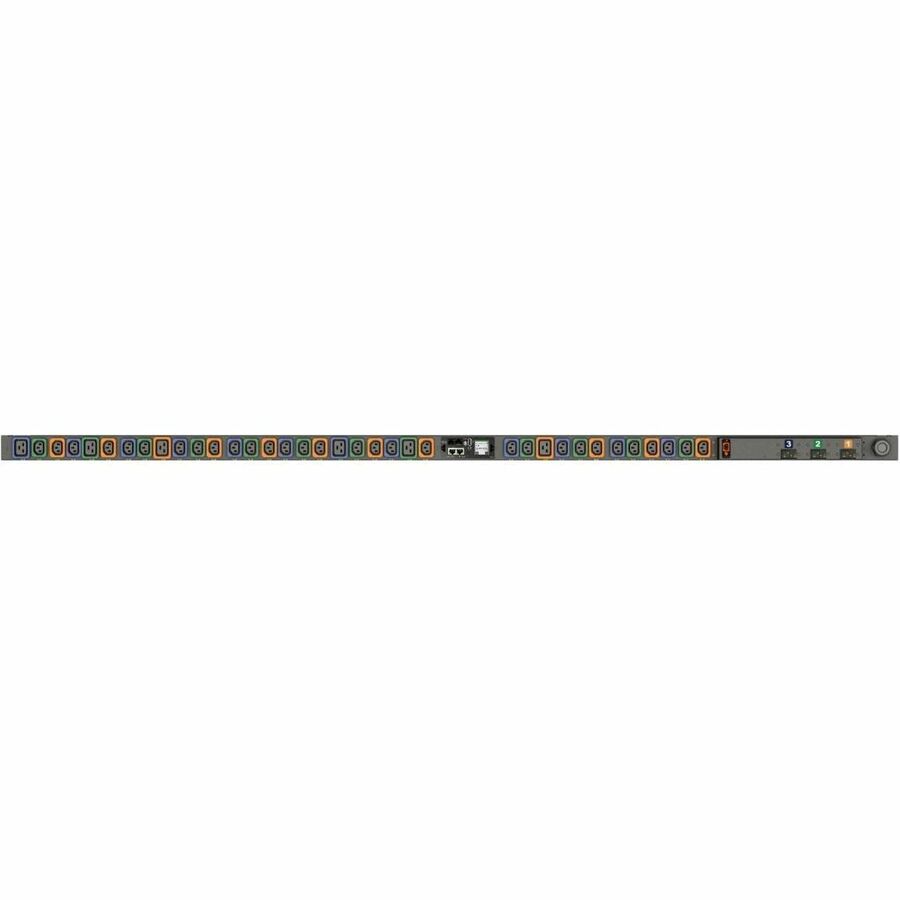

The Vertiv VP6N30AM is a high-performance Monitored Outlet-Level rPDU designed for data centers and critical IT environments. With 30 locking IEC C13 and 6 locking IEC C19 outlets, it delivers 8.6kW of reliable 3-phase power at 208V Delta. This vertical rPDU features advanced outlet-level power monitoring, environmental monitoring support, and daisy-chain Ethernet connectivity for simplified network management. Designed with fault tolerance and remote access capabilities, the VP6N30AM helps maximize uptime and optimize energy efficiency.
| Specification | Details |
|---|---|
| Model Number | VP6N30AM |
| Form Factor | Vertical, Zero U |
| Input Voltage | 208V Delta (200–240V) |
| Input Current | 30A, 3-Phase |
| Power Capacity | 8.6kW |
| Plug Type | NEMA L15-30P Twistlock |
| Receptacles | (30) Locking IEC C13, (6) Locking IEC C19 |
| Receptacle Style | U-Lock, Alternating Phase (Color ID) |
| Power Monitoring | Input, Outlet, Breaker, Circuit |
| Display | Local high visibility LCD |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP, HTTP/S, SSH, Modbus TCP, TACACS+, etc. |
| Mounting | Toolless Vertical Mount (72in / 1829mm) |
| Cord Length | 10ft / 3m |
| Color | Black Powder Coat |
| Chassis Dimensions (LxWxD) | 72 x 2 x 2.6 in (1829 x 51 x 66 mm) |
| Weight | 22 lbs (9.98 kg) |
| Environmental Monitoring | Optional sensors via RJ jack |
| Data Access Formats | CSV, JSON API, JSON datalog |
| Compliance | UL, c-UL, RoHS, FCC Part 15 Class A |
| Warranty | 5 years with registration (3 years standard) |
