Description

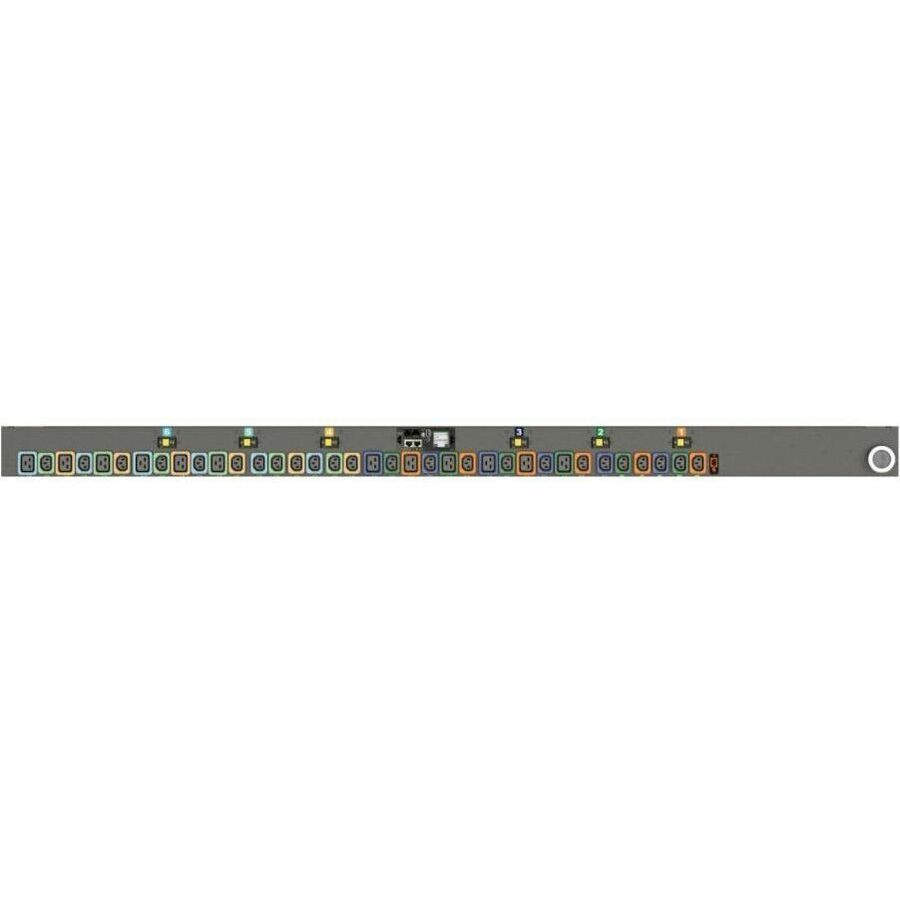

The Vertiv VP6N50A1 is a high-performance vertical rPDU designed for critical IT environments requiring precise power and environmental monitoring. It features 50A, 208V Delta input with 36 locking outlets (24x IEC C13, 12x IEC C19), dual network ports, and a touchscreen LCD for local readings. Engineered for fault tolerance and scalability, it allows daisy-chaining of up to 50 devices and supports remote monitoring, circuit-level metering, and environmental sensors. Built with a robust steel enclosure and a 5-year warranty when registered, the VP6N50A1 delivers reliability and visibility in modern data centers.
| Specification | Details |
|---|---|
| Model | VP6N50A1 |
| Input Power | 50A, 208V Delta, 14.4kW |
| Form Factor | Vertical, 66in (1683mm) Zero U |
| Outlet Types | 24x Locking IEC C13, 12x Locking IEC C19 |
| Receptacle Voltage | 208V |
| Breaker Protection | 6x 20A Double Pole Magnetic Breakers |
| Monitoring | Outlet-level, breaker-level, environmental capable |
| Display | High visibility LCD touchscreen |
| Network Connectivity | Dual Gigabit Ethernet (Daisy Chain up to 50 units) |
| Supported Protocols | SNMP (v1/2c/3), HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| Remote Sensor Support | Yes, via RJ connection (up to 16 sensors) |
| Mounting | Toolless vertical mounting kit (61.25in or 64.75in) |
| Plug Type | 3P+E CA (California Style, Twistlock) |
| Power Cable | 10ft (3m), 6/4 Gauge |
| Chassis | Black Powder-Coated Heavy Steel |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (with registration), 3-Year standard |
| Operating Temperature | Up to 60°C (140°F) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
| Weight | 24 lbs (10.89 kg) |
