Description

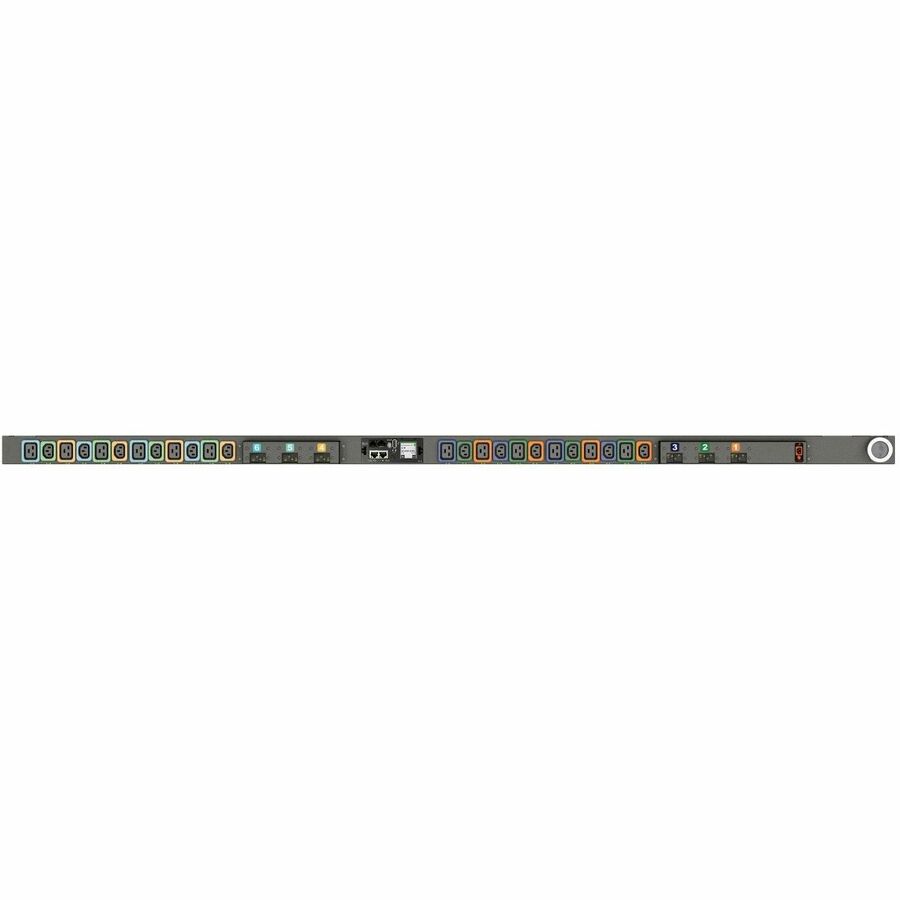

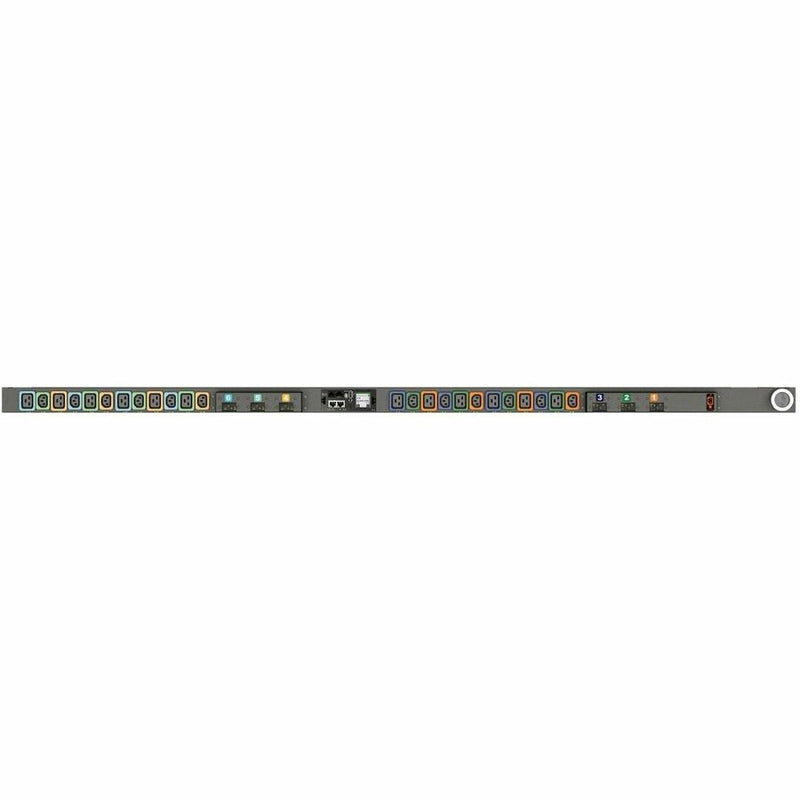

The Vertiv Geist VP6N60A1 is a high-capacity Monitored Outlet Level EC rPDU delivering 17.2kW of reliable power distribution with real-time environmental and power usage monitoring. Designed for high-density data center applications, this vertical 70-inch unit features 24 locking IEC outlets (12x C13, 12x C19), a 60A 208V DELTA input with a watertight IP67 plug, and advanced daisy chain capabilities for streamlined network integration. It offers fault-tolerant monitoring, local display, and is TAA and RoHS compliant with a 5-year limited warranty.
| Specification | Details |
|---|---|
| Model Number | VP6N60A1 |
| Series | Vertiv PowerIT rPDU™ |
| Form Factor | Vertical, Zero U |
| Mounting | Toolless Vertical Mounting, 70 in / 1778 mm |
| Input Plug Type | IEC60309 3P+E, IP67, 60A |
| Input Voltage & Current | 208V DELTA, 60A x 3 Phase |
| Load Capacity | 17.2kW |
| Outlets | 24 (12x Locking IEC C13, 12x Locking IEC C19) |
| Outlet Monitoring | Yes (kWh, W, VA, PF, V, A) |
| Circuit Protection | (6) 20A Double Pole Magnetic Breakers (10kAIC) |
| Monitoring Capabilities | Input & Outlet, Circuit/Breaker, Environmental via sensors |
| Display | Auto-oriented LCD touchscreen |
| Connectivity | Dual Ethernet, USB, Serial (RS232), Remote Sensor Port |
| Supported Protocols | SNMP v1/v2c/v3, HTTPS, Modbus TCP, RADIUS, DHCP, Syslog & more |
| Network Features | Daisy-chain up to 50 units per IP address |
| Wire Gauge / Cord Length | 6/4 AWG, 10 ft / 3 m |
| Construction | Steel with Black Powder Coat |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS, TAA & BAA Compliant |
| Operating Temperature | Up to 60°C (140°F) |
| Dimensions (L x W x D) | 70 in x 2.25 in x 2.6 in / 1778 mm x 58 mm x 66 mm |
| Weight | 30 lbs / 13.61 kg |
| Warranty | 5-Year Limited (with registration), 3-Year Standard |
