Description

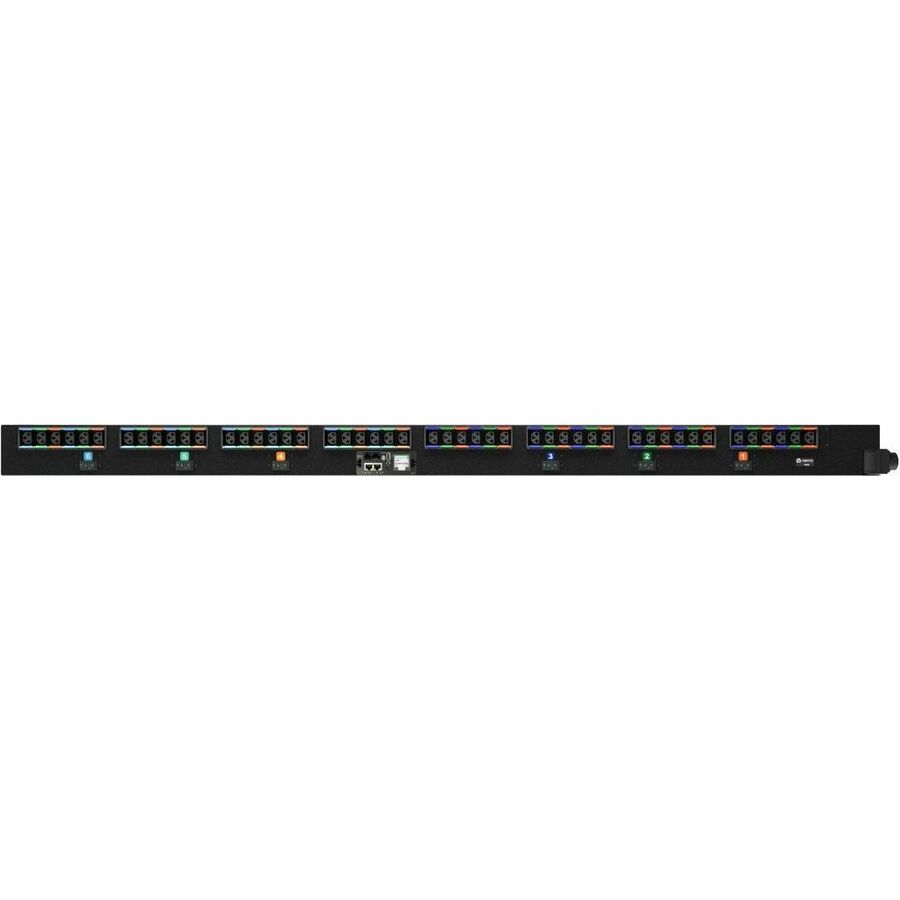

The Vertiv VP4UV0A3 is a high-performance, Monitored Unit Level EC rPDU designed for advanced power distribution and monitoring in modern data centers. Supporting up to 22.0kW with a universal inlet and 48 mixed C13/C19 outlets, this vertical 0U PDU ensures precise input and circuit-level power monitoring. It features environmental sensor support, a hot-swappable monitoring unit, dual Ethernet ports, and fault-tolerant daisy chaining—enabling maximum uptime, remote insights, and scalable deployment.
| Specification | Details |
|---|---|
| Model Number | VP4UV0A3 |
| Power Capacity | Up to 22.0kW (32A WYE, 240/415V) |
| Power Configuration | Variable (supports multiple input types) |
| Form Factor | Vertical, 0U |
| Inlet Type | Universal Inlet |
| Receptacles | 48x Combination C13/C19 |
| Per Circuit Receptacles | 8 per breaker, 6 circuits |
| Breakers | (6) 16A Double Pole Magnetic Breakers |
| Monitoring | Input, Phase, and Breaker Level Monitoring (W, VA, PF, V, A, kWh) |
| Display | LCD Touchscreen (auto-oriented) |
| Environmental Monitoring | Yes (via optional sensors, 1 RJ port supports up to 16 sensors) |
| Network Connectivity | Dual Gigabit Ethernet, Daisy Chain (up to 50 PDUs) |
| Network Protocols | SNMP v1/2c/3, HTTP/HTTPS, SSH, Modbus TCP, RADIUS, TACACS+, Syslog, etc. |
| Data Formats | CSV, JSON API, JSON datalog |
| Chassis Color | Black Powder Coat |
| Construction | Heavy Steel |
| Mounting Hardware | Toolless, Center-to-Center 49in/61.25in |
| Dimensions (LxWxD) | 66.25in x 3.8in x 2.25in (1683mm x 97mm x 57mm) |
| Weight | 25 lbs (11.34 kg) |
| Certifications | UL & c-UL 62368-1, CE, FCC Class A, UKCA, RoHS |
| Operating Temperature | Up to 60°C (140°F) |
| Warranty | 5 years (with registration), otherwise 3 years |
