Description

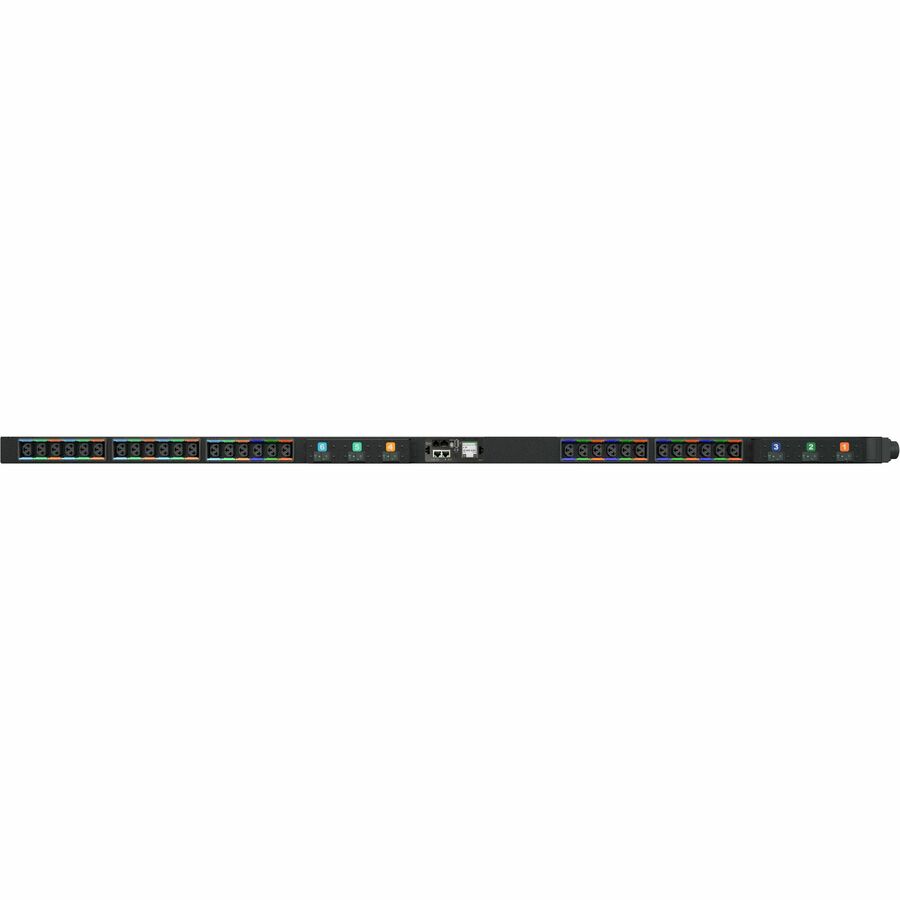

The Vertiv Geist VP4UV0A2 is a high-performance, monitored rack PDU (rPDU) delivering reliable power distribution for mission-critical IT environments. With 30 combination C13/C19 outlets, a universal inlet, and a 22kW power capacity, it features unit-level monitoring, advanced environmental sensing, and daisy-chain Ethernet connectivity. This vertical Zero U PDU includes intelligent circuit breaker monitoring, an auto-orienting LCD display, and is ideal for data centers requiring robust monitoring and uptime assurance.
| Specification | Details |
|---|---|
| Model Number | VP4UV0A2 |
| Power Capacity | Up to 22.0kW |
| Input Configuration | Universal Inlet |
| Output Receptacles | 30x Combination C13/C19 |
| Form Factor | Vertical, Zero U |
| Unit Monitoring | Unit-level EC monitoring (Input & Phase, Circuit/Breaker current) |
| Environmental Monitoring | Optional sensors (supports up to 16) |
| Breaker Configuration | 6x 16A Double Pole Magnetic Breakers (10kAIC rated) |
| Display | Auto-orienting LCD touchscreen |
| Mounting Compatibility | Toolless, fits 49in and 61.25in (1245mm/1556mm) center-to-center spacing |
| Connectivity | Dual Gigabit Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTP(S), SSH, DHCP, IPv4/6, RADIUS, more |
| Power Measurement Compliance | ANSI C12.1, IEC 62053-21 (1% accuracy) |
| Chassis Material/Color | Heavy-duty steel, Black powder coat finish |
| Dimensions (HxWxD) | 66.25 x 2 x 2.5 in (1682 x 51 x 64 mm) |
| Weight | 21 lbs (9.53 kg) |
| Operating Temperature | Up to 60°C (140°F) |
| Certifications | UL 62368-1, CE, UKCA, FCC Class A, RoHS |
| Warranty | 5-year limited (with registration within 120 days), otherwise 3 years |
