Description

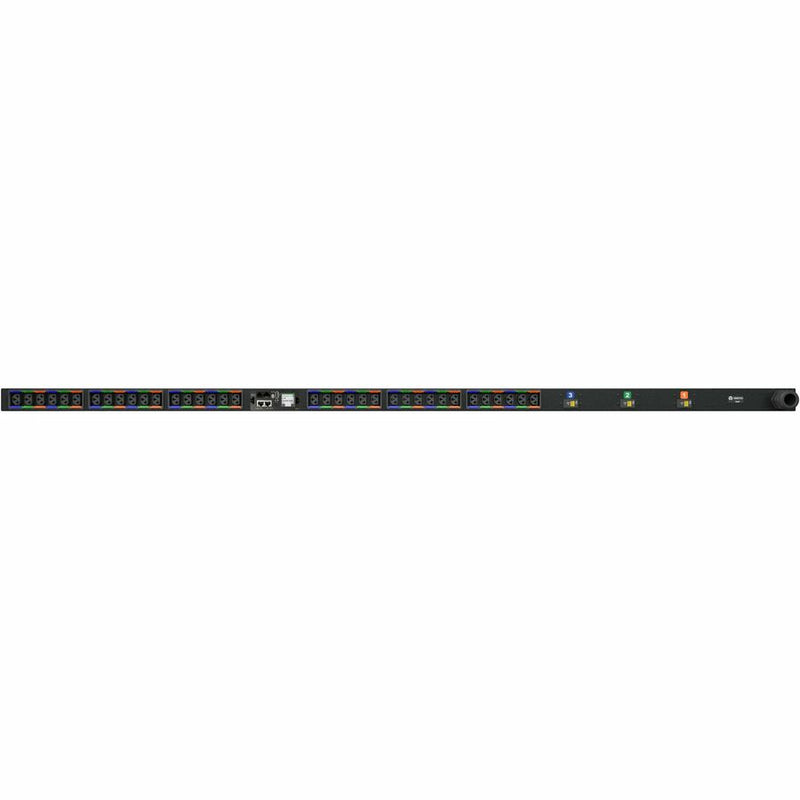

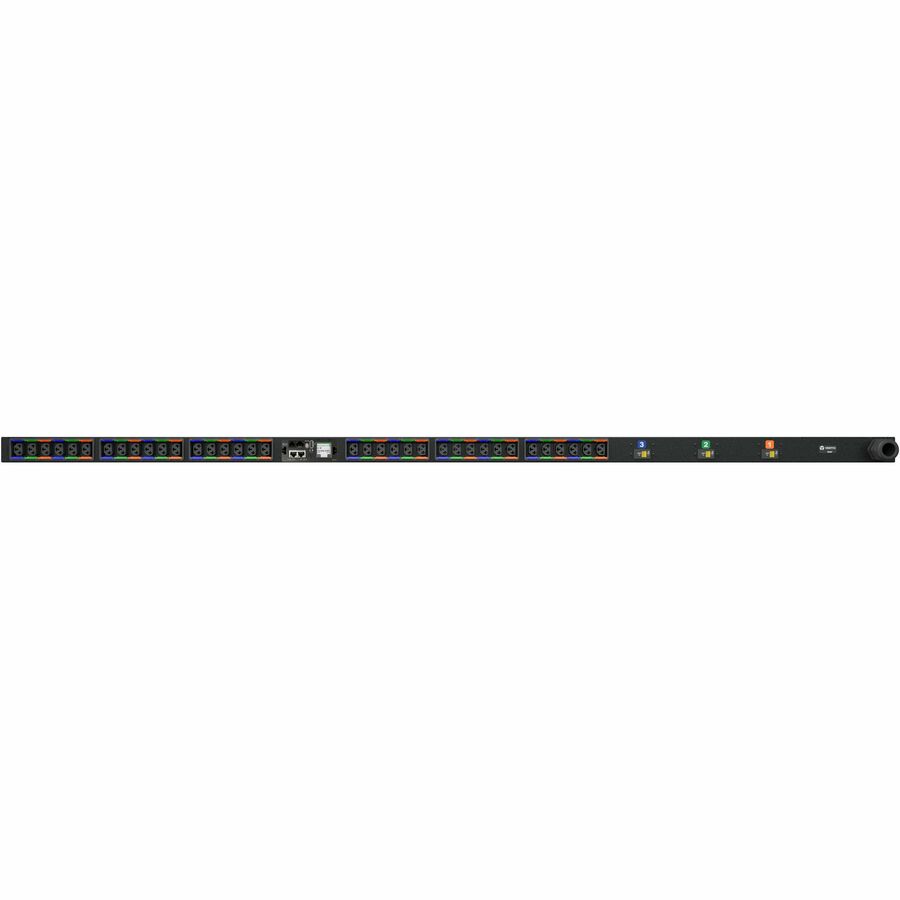

The Vertiv Geist VP4N30AN is a high-performance vertical rack PDU designed for critical IT environments. This monitored unit provides 30A 120/208V WYE power distribution with input and phase-level power monitoring. Equipped with 36 combination C13/C19 outlets, a 10ft L21-30P twist-lock plug, and an auto-orienting touchscreen display, it ensures reliability, visibility, and control. Environmental sensor support and daisy-chained Ethernet connectivity make it an ideal solution for high-density data centers seeking intelligent power infrastructure.
| Specification | Details |
|---|---|
| Model Number | VP4N30AN |
| Form Factor | Vertical (Zero U) |
| Input Voltage | 120/208V WYE |
| Current Rating | 30A 3-Phase WYE |
| Load Capacity | 8.6kW |
| Receptacles | 36 x Combination C13/C19 |
| Plug Type | NEMA L21-30P Twistlock |
| Monitoring Type | Input and Phase-Level Monitoring, Circuit-Level |
| Breaker Protection | (3) 20A Double Pole Magnetic (22kAIC Rated) |
| Power Cable | 10ft (3m), 10/5 AWG |
| Display | LCD Touchscreen, Auto-Oriented |
| Environmental Monitoring | Supported via Remote RJ Sensors (up to 16) |
| Networking | Dual Ethernet (10/100/1000 Mbps), Daisy Chain |
| Supported Protocols | SNMP (v1/v2c/v3), Modbus TCP, SSH, HTTPS, etc. |
| Mounting Bracket | Included (Vertical) |
| Chassis Dimensions (HxWxD) | 70 x 2 x 2 in / 1778 x 51 x 51 mm |
| Finish | Heavy Steel, Black Powder Coat |
| Weight (Shipped) | 17 lbs / 7.71 kg |
| Compliance | UL, c-UL, FCC Class A, RoHS, TAA, BAA |
| Warranty | 5-Year Limited (with registration) |
