Description

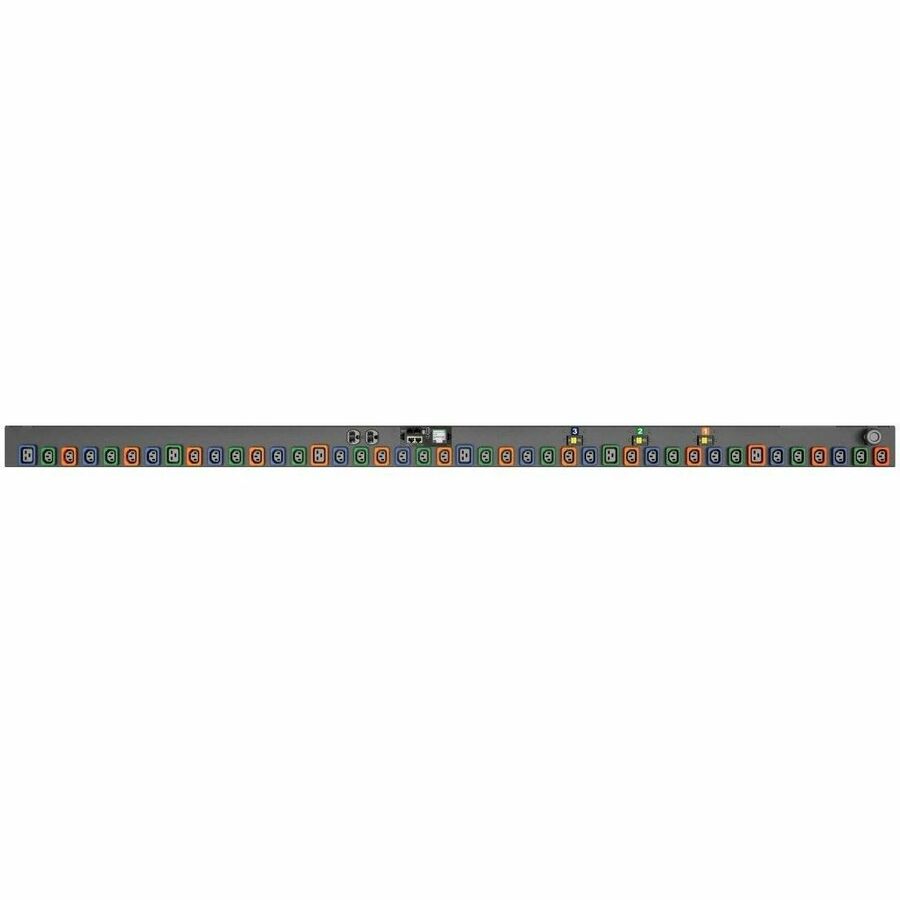

The Vertiv Geist VP4N30AB is a vertically mounted, EC-monitored rack power distribution unit (rPDU) designed for high-density data center environments. This 30A, 120/208V WYE rPDU delivers reliable power distribution with advanced unit-level monitoring of input and per-phase power, as well as circuit-level current. Equipped with 44 outlets—36 IEC C13, 6 IEC C19, and 2 NEMA 5-20R—it features an integrated touchscreen LCD, optional environmental sensor compatibility, and daisy-chain Ethernet connectivity for simplified deployment and remote access. Ideal for maximizing uptime, managing power usage trends, and ensuring operational continuity.
| Specification | Details |
|---|---|
| Part Number | VP4N30AB |
| Input Voltage | 120/208V WYE, 3-Phase |
| Current Rating | 30A |
| Power Capacity | 8.6 kW |
| Form Factor | Vertical, 75 in / 1905 mm |
| Outlet Types | (36) Locking IEC C13, (6) Locking IEC C19, (2) NEMA 5-20R |
| Input Plug | NEMA L21-30P |
| Monitoring | Unit, Phase, and Circuit Level with LCD Display |
| Environmental Monitoring | Yes (via optional sensors) |
| Network Connectivity | Dual Ethernet, SNMP, HTTPS, SSH, JSON API, etc. |
| Mounting | Toolless vertical mounting with included bracket |
| Certifications | UL 62368-1, FCC Class A, RoHS, TAA/BAA Compliant |
| Warranty | 5-year (with registration), 3-year standard |
| Construction | Heavy-duty steel, black powder coat |
| Weight | 19 lbs (8.62 kg) |
