Description

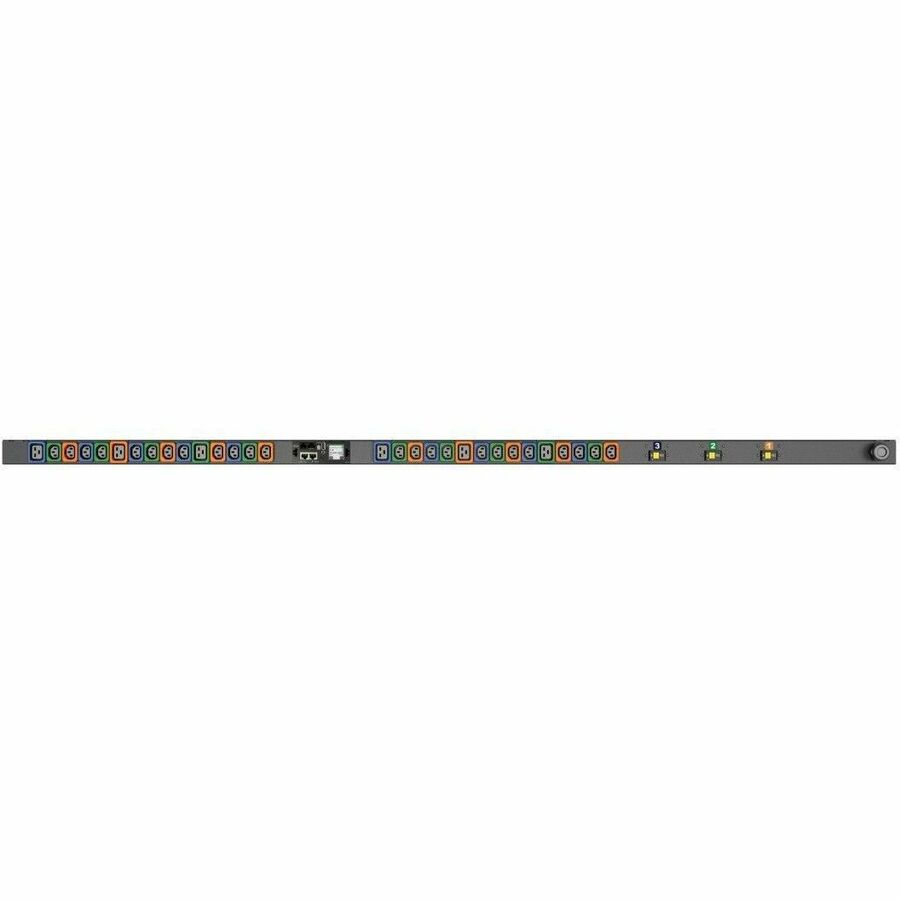

The Vertiv Geist VP4N30AC is a vertical, monitored rPDU delivering 8.6kW of reliable power distribution at 30A 208V (Delta) with intelligent monitoring capabilities. This unit provides advanced environmental monitoring, unit-level and per-phase power metering, and circuit/breaker-level current monitoring. Designed for high-density IT environments, it features 24 locking IEC C13 and 6 locking IEC C19 outlets, a 10ft L15-30P twist-lock power cord, and a local touchscreen display. Daisy chain up to 50 units for simplified deployment and single-IP remote access.
| Specification | Details |
|---|---|
| Model Number | VP4N30AC |
| Form Factor | Vertical (72in / 1829mm) |
| Input Voltage | 208V Delta |
| Current Rating | 30A (3-phase) |
| Power Capacity | 8.6kW |
| Frequency | 50/60 Hz |
| Input Plug Type | NEMA L15-30P (10ft / 3m cord) |
| Outlet Configuration | 24x Locking IEC C13, 6x Locking IEC C19 |
| Outlet Voltage | 208V |
| Monitoring Levels | Unit, Phase (AB, BC, CA), Circuit/Breaker |
| Accuracy | ANSI C12.1 / IEC 62053-21 (1%), Breaker Monitoring (2%) |
| Display | Local touchscreen display (auto-oriented) |
| Environmental Sensors | Supports up to 16 optional sensors |
| Network Connectivity | Dual Gigabit Ethernet, Daisy Chain up to 50 units |
| Communication Protocols | DHCP, SNMP v1/v2c/v3, Modbus TCP, HTTP/HTTPS, SSH, etc. |
| Data Formats | JSON API, CSV, Syslog |
| Mounting | Toolless Vertical Mounting (61.25" and 64.75" C2C spacing) |
| Chassis Finish | Black powder-coated heavy steel |
| Compliance | UL 62368-1, RoHS, FCC Part 15 Class A, TAA, BAA |
| Warranty | 5 years (if registered within 120 days), otherwise 3 years |
| Country of Origin | USA |
| Weight | 17 lbs (7.71 kg) |
