Description

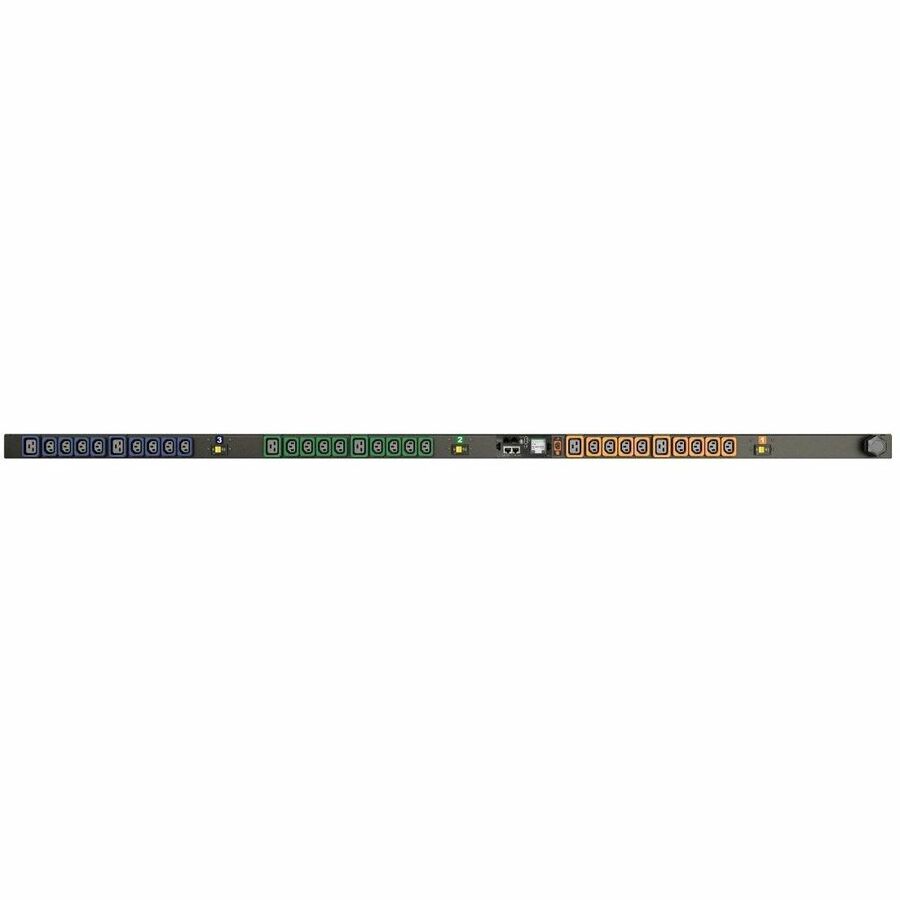

The Vertiv Geist VP4N30A3 is a monitored vertical rack power distribution unit (rPDU) delivering 8.6kW power capacity with 30 outlets—ideal for high-density IT applications. Featuring unit-level EC monitoring with input, per phase, and circuit-level power metrics, it provides actionable energy data for optimal uptime and efficiency. This 72-inch unit includes 24 IEC C13 and 6 IEC C19 locking outlets, environmental monitoring capability, and robust network connectivity with support for SNMP, Modbus TCP, and more. TAA compliant and backed by a 5-year warranty.
| Specification | Details |
|---|---|
| Model Number | VP4N30A3 |
| Input Power | 30A, 208V, 3-Phase Delta |
| Power Capacity | 8.6kW |
| Form Factor | Vertical, 72in / 1829mm |
| Outlets | (24) Locking IEC C13, (6) Locking IEC C19 |
| Receptacle Voltage | 208V |
| Plug Type | NEMA L15-30P |
| Power Cable Length | 10 ft (3m) |
| Monitoring | Unit-level, Phase & Circuit/Breaker monitoring |
| Sensor Support | Optional remote environmental sensors |
| Display | Auto-oriented LCD touchscreen |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, SSH, Syslog, etc. |
| Mounting | Vertical with 7938 bracket kit, toolless |
| Chassis | Black powder-coated steel |
| Compliance | UL 62368-1, FCC Class A, RoHS, TAA, BAA (COTS) |
| Operating Temp | Max 60°C / 140°F |
| Dimensions (LxWxD) | 72 x 2 x 2 in |
| Weight | 17 lbs (7.71 kg) |
| Warranty | 5 years (with registration), 3 years standard |
