Description

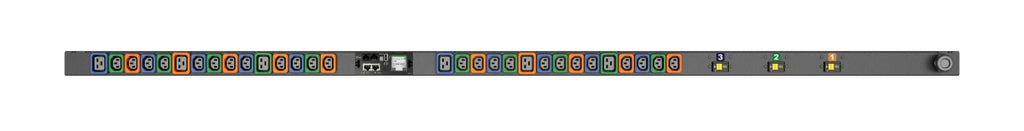

The Vertiv VP4N30AF is a unit-level monitored rPDU engineered for high-density IT environments requiring reliable, real-time power distribution and visibility. This 72-inch vertical power distribution unit supports 30A, 240/415V WYE input and delivers up to 17.2kW of load capacity. It features 24 locking IEC C13 and 6 locking IEC C19 receptacles, environmental monitoring capability via optional sensors, and a local touchscreen LCD display.
Daisy-chain up to 50 units with a single IP address using fault-tolerant RSTP daisy chaining. It’s ideal for maximizing uptime and energy efficiency while ensuring compliance with stringent monitoring standards. Built for flexibility, it includes upgradeable, hot-swappable monitoring, tool-less mounting, and a 5-year warranty with registration.
| Feature | Specification |
|---|---|
| Model | VP4N30AF |
| Power Input | 30A, 240/415V 3-Phase WYE |
| Input Plug | IEC60309 3P+N+E, IP44 (Splashproof) |
| Power Capacity | 17.2kW |
| Output Receptacles | 24 × Locking IEC C13, 6 × Locking IEC C19 |
| Mounting Style | Vertical, 72 in / 1829 mm |
| Monitoring | Unit-Level EC Monitoring, Circuit/Breaker, Phase & Total Monitoring |
| Display | Local Touchscreen LCD, Auto-Oriented |
| Environmental Monitoring | Optional Sensors via RJ Connection (up to 16) |
| Network Features | Dual 10/100/1000 Mbps Ethernet, Daisy Chaining, SNMP, Modbus TCP |
| Protocols Supported | SNMP v1/v2c/v3, HTTPS, RADIUS, Modbus TCP, JSON API, more |
| Chassis | Black Powder Coat Steel |
| Breaker Protection | 6 × 20A Single Pole Magnetic Breakers |
| Dimensions (L×W×D) | 72 × 2 × 2.25 in |
| Weight | 17 lbs (7.71 kg) |
| Compliance | UL 62368-1, RoHS, FCC Part 15 Class A, TAA, BAA |
| Warranty | 5-Year Limited (with registration), 3-Year Standard |
| Country of Origin | USA |
