Description

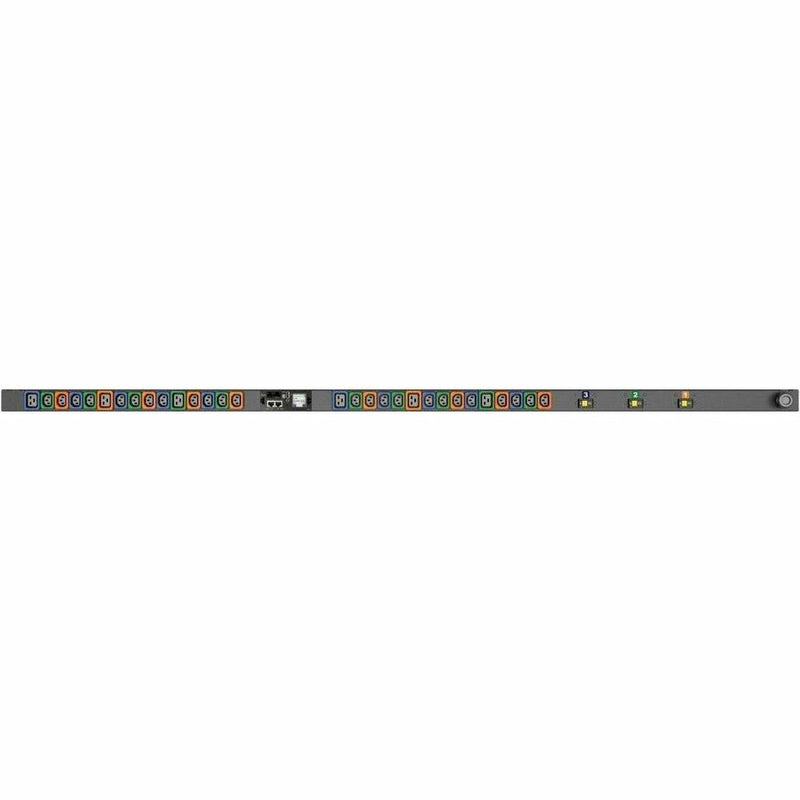

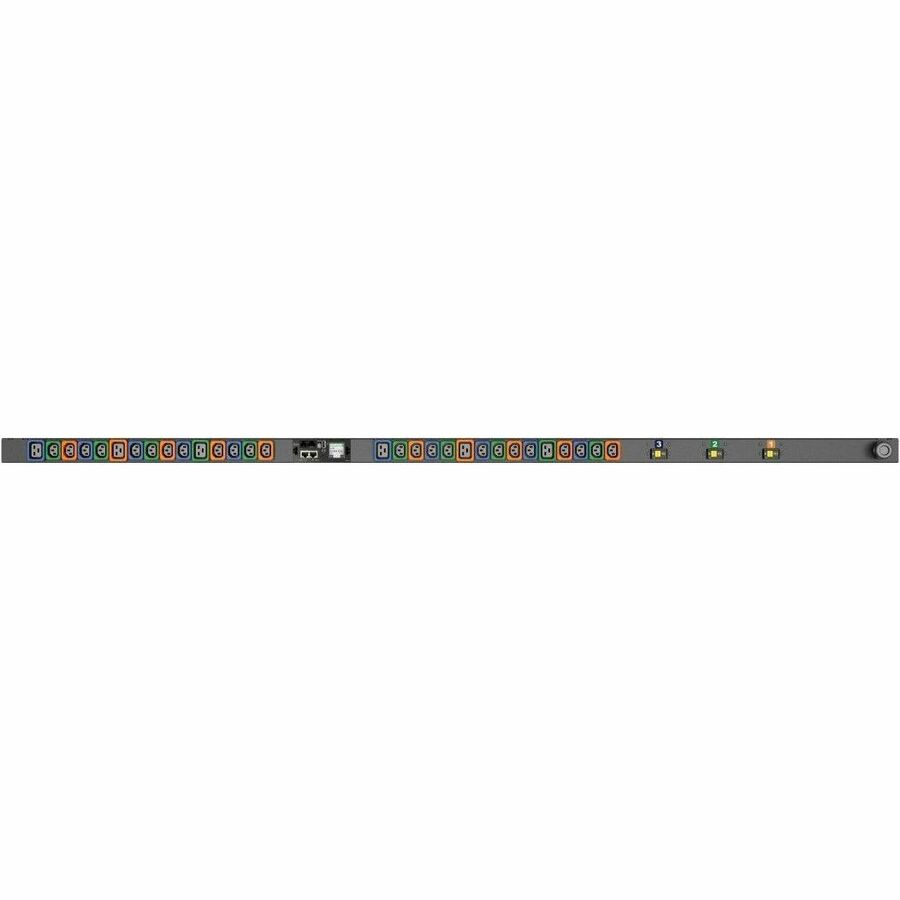

The Vertiv™ VP4N40A1 PowerIT™ Monitored rPDU delivers reliable and intelligent power distribution for critical IT environments. With 30 locking IEC outlets (24x C13, 6x C19), unit-level power monitoring, and environmental sensor support, this 72-inch vertical rack PDU is built for high availability and operational insight. It supports daisy chaining up to 50 units over a single IP, reducing deployment time and network complexity. Ideal for high-density data center applications needing robust monitoring and redundancy.
| Specification | Details |
|---|---|
| Model Number | VP4N40A1 |
| Input Voltage | 208V (200–240V Delta) |
| Current Rating | 35A, 3-Phase Delta |
| Load Capacity | 10.0kW |
| Frequency | 50/60Hz |
| Input Plug Type | 3P+E CA (California Style Twistlock) |
| Receptacles | 24x Locking IEC C13, 6x Locking IEC C19 |
| Mounting Style | Vertical Rackmount, 72 in. (1829 mm) |
| Color ID Coding | Orange, Green, Blue (per circuit) |
| Monitoring | Unit-level + breaker/phase level monitoring |
| Environmental Monitoring | Optional via remote RJ sensors (up to 16) |
| Display | Local LCD Touchscreen (auto-oriented) |
| Communication Ports | Dual Ethernet (10/100/1000 Mbps), RS232, USB |
| Supported Protocols | SNMP v1/v2c/v3, Modbus TCP, HTTPS, etc. |
| Chassis Material / Finish | Heavy Steel / Black Powder Coat |
| Dimensions (L x W x D) | 72 in x 2 in x 2 in |
| Weight | 17 lbs (7.71 kg) |
| Operating Temp | Up to 60°C / 140°F |
| Certifications | UL, c-UL 62368-1, FCC Class A, RoHS |
| Warranty | 5-Year (with registration); 3-Year standard |
| Compliance | TAA & Buy American Act COTS Compliant |
