Description

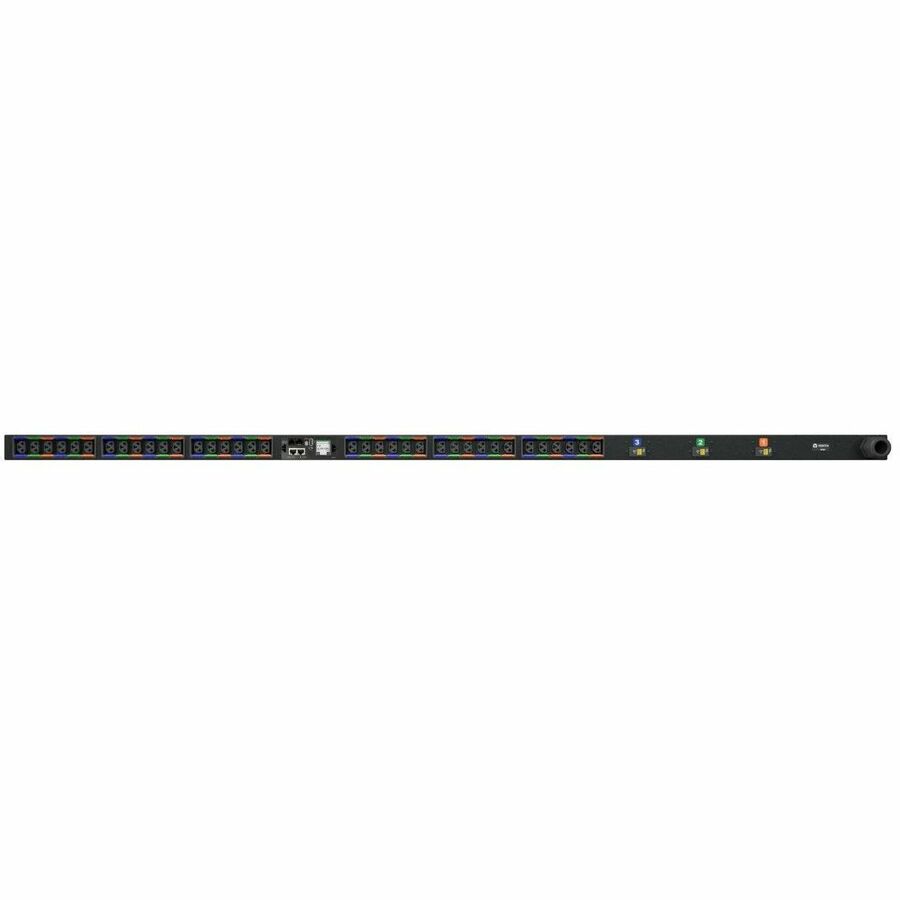

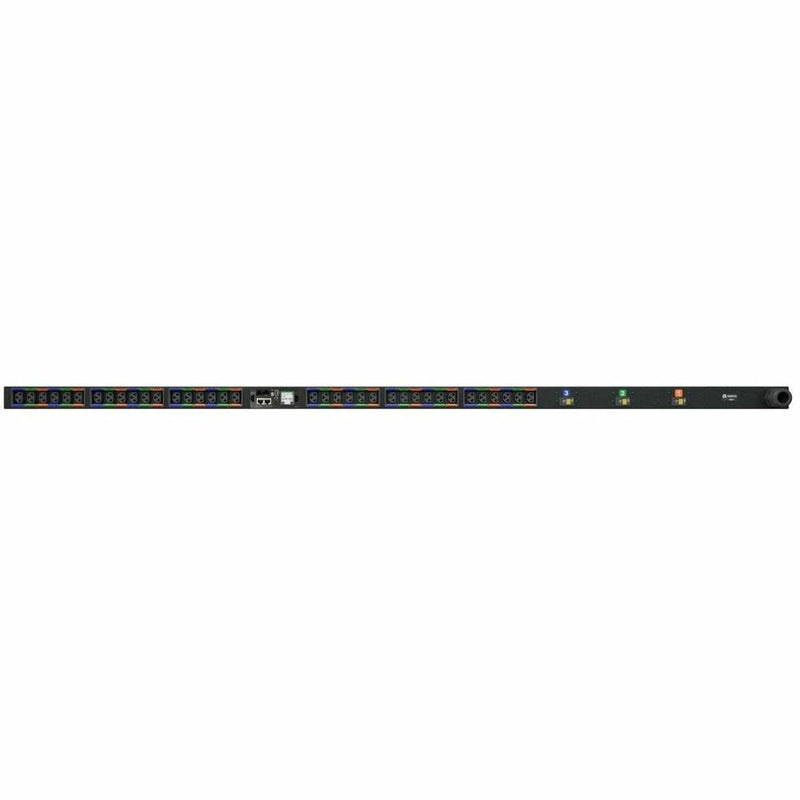

The Vertiv VP4N40A2 is a highly reliable vertical Monitored Unit Level rPDU designed to deliver consistent and intelligent power distribution for your mission-critical IT infrastructure. Rated at 35A, 208V DELTA with 10.0kW load capacity, this 70-inch vertical rPDU features 36 combination C13/C19 outlets and supports advanced unit-level power and circuit monitoring via network and local touchscreen. Upgradeable EC monitoring, environmental sensor support, and daisy-chain Ethernet connectivity allow seamless integration and proactive power management in high-density data centers.
| Specification | Details |
|---|---|
| Model Number | VP4N40A2 |
| Form Factor | Vertical (Zero U) |
| Input Voltage | 200-240V DELTA |
| Input Current | 35A (3-Phase) |
| Power Capacity | 10.0kW |
| Receptacles | 36 x Combination C13/C19 |
| Breaker Configuration | (3) 20A Double Pole Magnetic (22kAIC Rated) |
| Monitoring Type | Monitored (Unit Level EC) |
| Monitoring Features | Input & Phase Monitoring, Breaker Monitoring |
| Display | LCD Touchscreen (Auto-Oriented) |
| Plug Type | 3P+E CA (California Style 50A, 250V) |
| Power Cord Length | 10 ft (3m) |
| Mounting Dimensions | 70in x 2in x 2in (1778mm x 51mm x 51mm) |
| Mounting Type | Toolless, Vertical (7938 Bracket Kit) |
| Network Ports | Dual Ethernet 10/100/1000 Mbps |
| Protocols Supported | SNMP, HTTPS, SSH, RADIUS, Syslog, Modbus TCP |
| Environmental Monitoring | Optional (Supports up to 16 sensors) |
| Compliance & Certifications | UL 62368-1, FCC Class A, RoHS, TAA, BAA |
| Operating Temperature | Up to 60°C (140°F) |
| Finish | Black Powder-Coated Steel |
| Weight | 17 lbs (7.71 kg) |
| Warranty | 5 years (if registered within 120 days) |
