Description

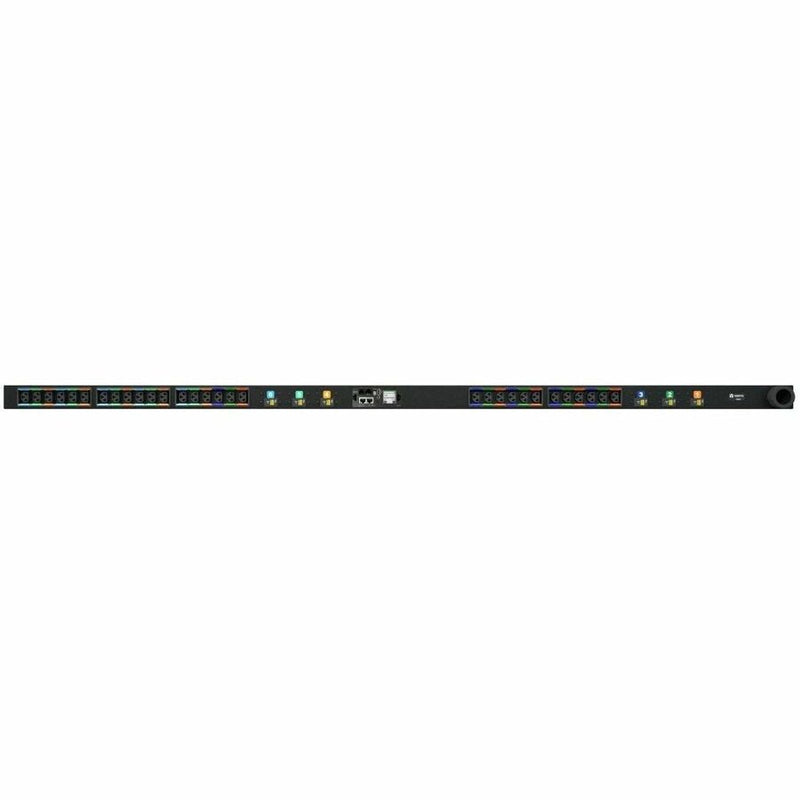

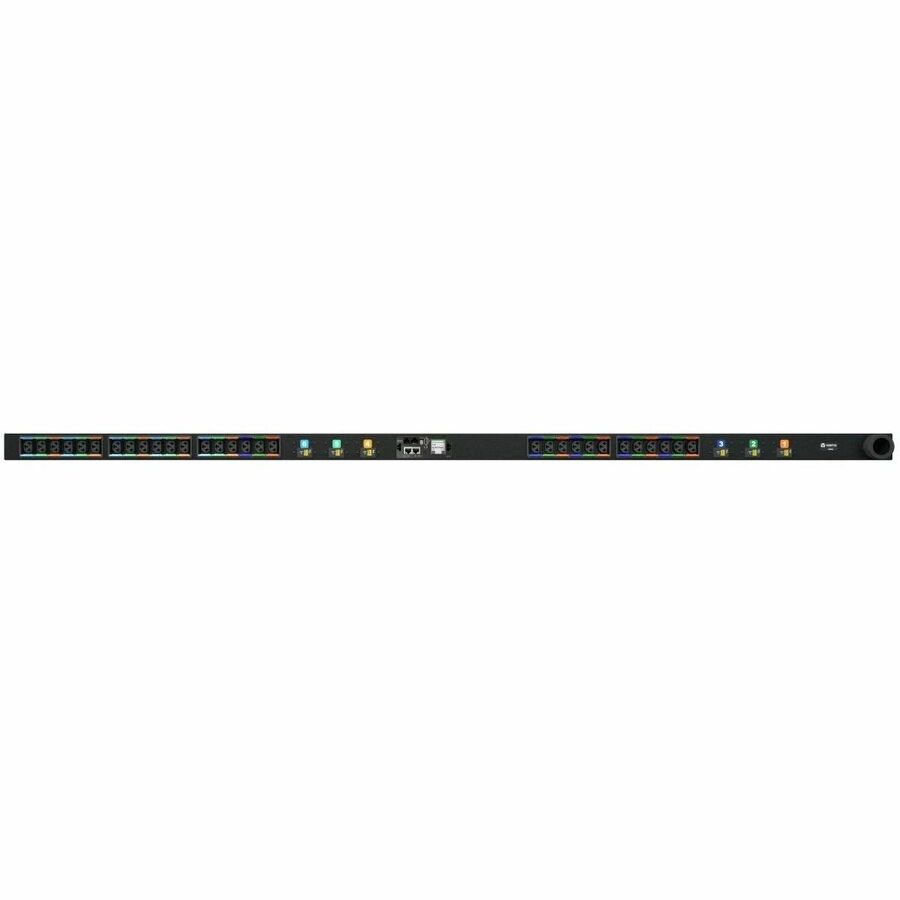

The Vertiv™ Geist™ VP4N50A6 is a high-performance vertical rPDU delivering 14.4kW of power at 208V in a 50A Delta 3-phase configuration. Designed with upgradeable, hot-swappable unit-level EC monitoring, it provides precise real-time visibility into power and environmental metrics via Ethernet. Featuring 30 combination C13/C19 outlets and daisy-chain support for up to 50 units, it ensures operational efficiency, uptime, and flexible deployment in mission-critical IT environments.
| Specification | Details |
|---|---|
| Part Number | VP4N50A6 |
| Power Capacity | 14.4kW, 208V 3-Phase Delta |
| Current Rating | 50A |
| Form Factor | Vertical, Zero U |
| Unit Height | 70 in (1778 mm) |
| Outlet Configuration | 30 x Combination C13/C19 |
| Plug Type | 3P+E California Style Twistlock |
| Power Cord Length | 10 ft (3 m), 6/4 AWG |
| Input Monitoring | kWh, W, VA, PF, V, A (Unit + Phase/Line) |
| Circuit Monitoring | Yes, Breaker Monitoring (A) |
| Breaker Configuration | 6x 20A Double Pole Magnetic, 10kAIC |
| Display | LCD Touchscreen (Auto-Oriented) |
| Network Connectivity | Dual Gigabit Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/S, Modbus TCP, SSH, etc. |
| Environmental Monitoring | Optional sensors (up to 16 supported) |
| Mounting Hardware | Vertical Mounting Kit Included |
| Compliance | UL 62368-1, RoHS, FCC Class A |
| Operating Temp. | Up to 60°C (140°F) |
| Finish | Black Powder-Coated Steel |
| Weight (Shipped) | 32 lbs (14.5 kg) |
| Warranty | 5 Years (with registration) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
