Description

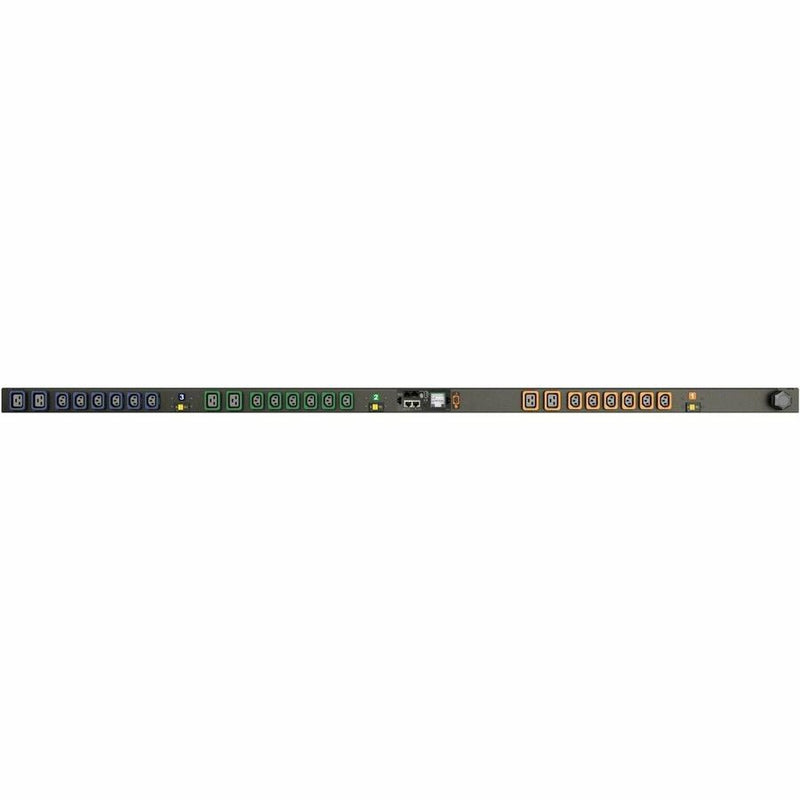

The Vertiv Geist VP4N60AB is a high-performance vertical rack PDU (rPDU) designed for critical IT environments. Delivering reliable 60A, 208V power across 24 locking outlets (18x C13, 6x C19), it features Unit Level EC Monitoring for real-time power insights and breaker-level current monitoring. The hot-swappable monitoring module, daisy-chain Ethernet connectivity, and environmental sensor support ensure this rPDU adapts to dynamic data center needs while maximizing uptime.
Built with fault-tolerant daisy chaining (RSTP), remote and local display access, and compliance with ANSI/IEC metering standards, the VP4N60AB is ideal for efficient, scalable, and secure power management.
| Feature | Details |
|---|---|
| Model Number | VP4N60AB |
| Power Capacity | 60A, 208V, 9.9kW |
| Form Factor | Vertical, 72in / 1829mm |
| Input Plug Type | IEC60309 2P+E, IP67 Watertight |
| Output Receptacles | (18) Locking IEC C13, (6) Locking IEC C19 |
| Monitoring | Unit Level EC with breaker-level current monitoring |
| Power Monitoring Accuracy | Input: ±1% (kWh, W, VA, PF, V, A); Breaker: ±2% (A) |
| Connectivity | Dual Gigabit Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, RADIUS, Syslog, Modbus TCP, and more |
| Display | Local auto-oriented LCD touchscreen display |
| Environmental Monitoring | Optional remote sensors (up to 16 supported) |
| Construction | Steel chassis, black powder coat finish |
| Mounting Options | Toolless vertical bracket, C-C spacing: 61.25in and 64.75in |
| Certifications | UL & c-UL Listed 62368-1, FCC Class A, RoHS |
| Warranty | 5 years (if registered within 120 days), else 3 years |
| Country of Origin | USA (TAA & Buy American Act COTS compliant) |
| Weight | 28 lbs (12.7 kg) |
